Description 60mm 80mm digital negative pressure gauge manufacturer
60mm 80mm digital negative pressure gauge manufacturer have full
electronic structure and use battery-powered, so they are very easy
for on-site installation. Specifically, front-end high-precision
piezoresistive pressure sensor is used and the output signal is
processed by the high-precision, low temperature drift amplifier,
then sent into the high-precision A/D converter to be converted
into digital signal, after computing and processing the actual
pressure value is showed on the LCD display.

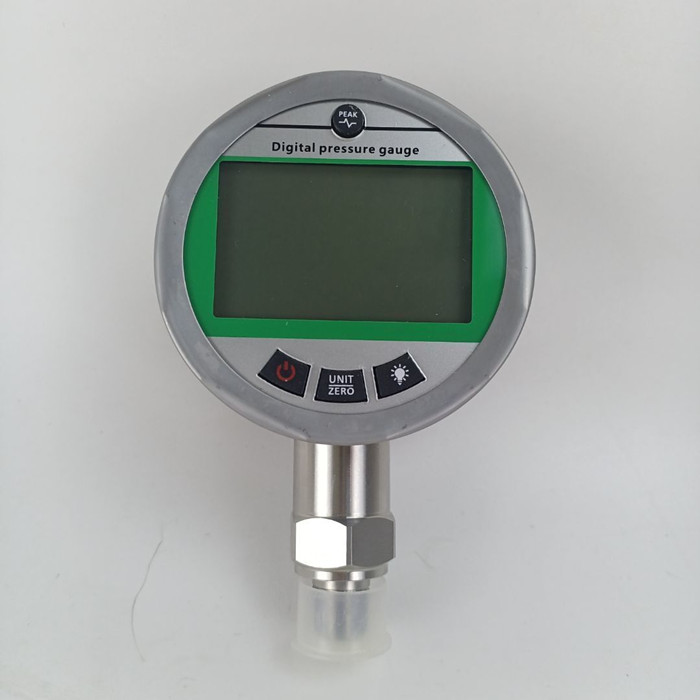

Detailed Images 60mm 80mm digital negative pressure gauge
manufacturer
Specification 60mm 80mm digital negative pressure gauge
manufacturer
| Scale Range | -1~0~600bar | Accuracy | 0.25% |
| Overload capacity | 200% | Pressure Type | Gauge Pressure |
| Stability | ≤0.1%/year | Battery voltage | 4.5V, 3AAA battery |
| Display | LCD display | Display range | -1999~9999 |
| Ambient temperature | -10ºC~60ºC | Relative humidity | ≤80% |
| Connection size | 1/4NPT, 1/2NPT | Pressure unit | MPa/KPa/Bar/Psi/mBar |
| Case material | ABS plastic | Medium temp | -20~50ºC |

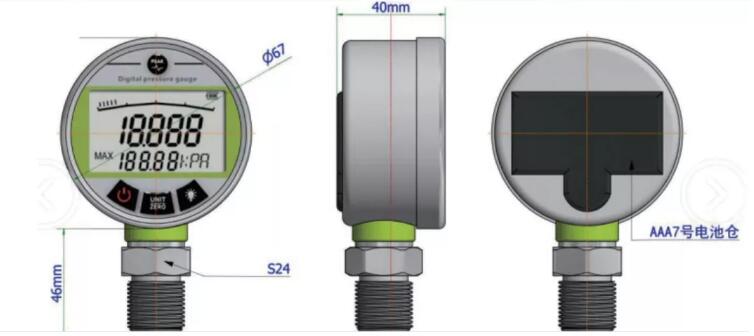

Dimension 60mm 80mm digital negative pressure gauge manufacturer
Features 60mm 80mm digital negative pressure gauge manufacturer
1. large-screen LCD display, high resolution, ignoring the error.
2. Peak Hold function, record the maximum pressure values during
the measurement
3. Pressure on the percentage of dynamic display, (the progress bar
display)
4. Choice of five engineering units: psi, bar, kpa, kg / square centimetre Mpa
5. Choose 0 ~ 15min auto-off feature.
6. Micro-power consumption, work more than 2 years in power-saving
mode, 2,000 hours continuous work.
7. Parameter correction, correct zero and error in field
application.
8. Limit the upper and lower range
9. Sampling rate: 4 times / sec
10. Applicable to a variety of gases and liquids compatible with
stainless steel pressure measurement.
