    60Mpa SS304 Case Differential Pressure Gauge For Bourdon Tube

    Ask Lasest Price
    Brand Name : Yunyi
    Model Number : CYW-152B/153B, CYW-152B/153B
    Certification : /
    Price : $250
    Payment Terms : T/T, Western Union
    Supply Ability : 100 per week
    Delivery Time : 10 works day
    • Product Details
    • Company Profile

    60Mpa SS304 Case Differential Pressure Gauge For Bourdon Tube

    Description SS304 SS316 Case Bourdon Tube Differential Pressure Gauge

    YWB Series stainless steel differential pressure gauge applicable in the measurement of various liquid (gas) medium differential pressure, flow and other process chemicals, chemical brazing, metallurgy, electric power, nuclear power Filtration and other industries . ss316 material differential pressure gauge structure made of stainless steel, whose measurement system (dual bellows urgent connecting parts), pressure systems (including joints, pipes, etc.) using reasonable special structure design, advanced technology, with small size, light weight, good stability , long life,new appearance , strong adaptability advantages. Connection joints include parallel (can be directly connected with the three valves manifold) and inclined, adapt to different customers requirements.

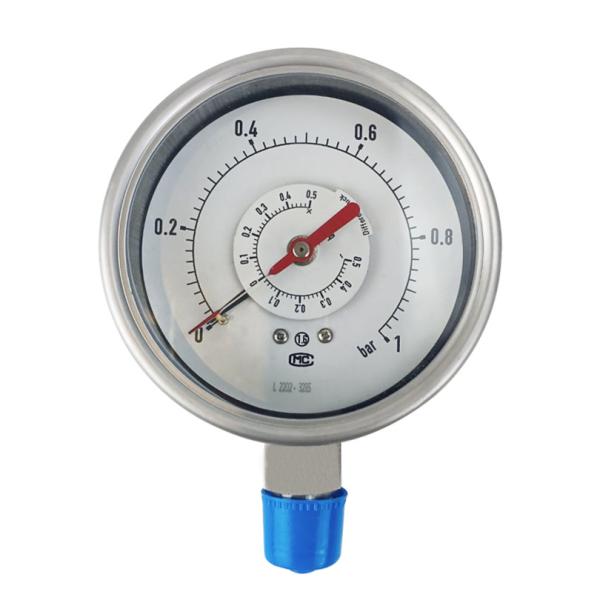

    Detailed Images SS304 SS316 Case Bourdon Tube Differential Pressure Gauge
    60Mpa SS304 Case Differential Pressure Gauge For Bourdon Tube60Mpa SS304 Case Differential Pressure Gauge For Bourdon Tube

    Specification SS304 SS316 Case Bourdon Tube Differential Pressure Gauge


    Application

    It measures pressure for gas,

    Liquid ect media which has no corrosive effects on copper, copper alloy.

    Accuracy

    ±1.6%,±2.5%

    Measuring range

    Kpa:0-1.6,2.5,4,6,10,16,25,40,60,100,160,250

    Mpa:0-01,0.16,0.25,0.4,0.6,1,1.6,2.5

    Diameter

    100mm 150mm(Dial size could only be 150mm when 10Kpa

    Casing

    Steel, plastic, black stainless steel

    Machine core

    Brass

    Corrugated pipe

    Phosphor bronze

    Use temperature

    -40 to70°C

    Connecting thread

    1/4”,3/8”,1/2”,PT,NPT

    Mounting patter

    back, bottom (axial, radial)
