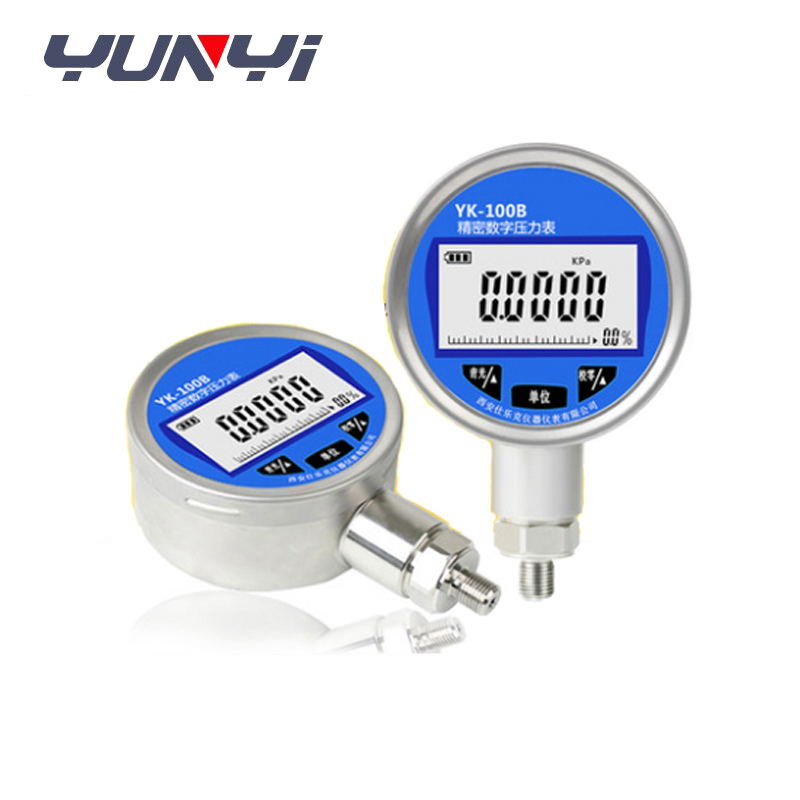

High Precision YK-100B Digital Pressure Gauge 0~10Mpa For Liquid
and Gas
Description
YK-100B digital precision presure gauge is a new product of our
company, is mainly designed and produce for measurement work, with
characteristic of high acquisition frequency, good stability, small
precision loss, is most popular with the measuring workers.
Specification
| High Precision YK-100B Digital Pressure Gauge 0 ~ 10Mpa For Liquid
and Gas |
| Pressure range | -0.1~0MPa 0~100MPa |
| Analog output | 4-20MA |
| Data output | RS485, RS232 |
| Power supply | Rechargeable battery |
| Process connection | M20*1.5 |
| Display | 5 digits LED |
| Over load | 1.5-3 times |
| Medium temperature | -40℃~70℃ |
| Hysteresis | 0.01% |
| Accuracy | 0.1%FS, 0.05%FS, 0.02%FS, 0.01%FS |
| Isolation technology | signal isolation technique, anti electromagnetic interference
and radio frequency technology |
| Zero | zero automatically settled, don't need for calibration |
| Progress display | visual display of pressure percentage |
| Dimension | φ100mm × 34mm |
| Weight | 0.75kg |
Features
1. Visual display the bar charts of pressure percentage
2. Can realize the self calibration correction
3. Acquisition speed can be set to (0.3~10) s/time
4. The battery life of up to 5 years
5. The technology of signal isolation and Anti electromagnetic and
Radio frequency interference
6. Zero self stabilization technology, temperature compensation
technology
Selection Guide
| YK-100B | Code | Accuracy | | |
| A | 0.05 |
| B | 0.1 |
| C | 0.2 |
| D | Flange |
| E | Special Accuracy |
| Code | Connection mode |
| 1 | M20*1.5 |
| 2 | 1/2NPT |
| 3 | M14*1.5 |
| 4 | G1/2 |
| 5 | Special connector |
| Code | Pressure type |
| G | Gage pressure |
| D | Differential pressure |
| A | Absolute pressure |
| YK-100B | A | 1 | G |
