I2C Ceramic Piezoresistive Pressure Sensor Air Water Pressure Sensor

Description of I2C Ceramic Piezoresistive Pressure Sensor Air Water Pressure Sensor

The small pressure sensor is designed and manufactured by using high-strength ceramic thick film and dedicated line integrated circuit technology. It is especially suitable for the automotive environment and can be used in harsh environments such as high and low temperature, vibration, thermal shock and mechanical shock, and chemical pollution, and is mainly used for transmission case oil pressure measurement.

Parameter of I2C Ceramic Piezoresistive Pressure Sensor Air Water Pressure Sensor

1. Measuring range: 0.5~4.5V; 4~20mA; 1~5V.
2. Installation thread: NPT1/4"; G1/4" (can be specified according to customer requirements)
3. Wiring method: packard; waterproof straight lead; aviation plug.
4. Overload pressure: 1.5 times the range 5. Static accuracy: <1.8(%FS)2
6. Pressure type: gauge pressure
7. Medium temperature: -30～125℃
8. Cycle life: 200,000 times

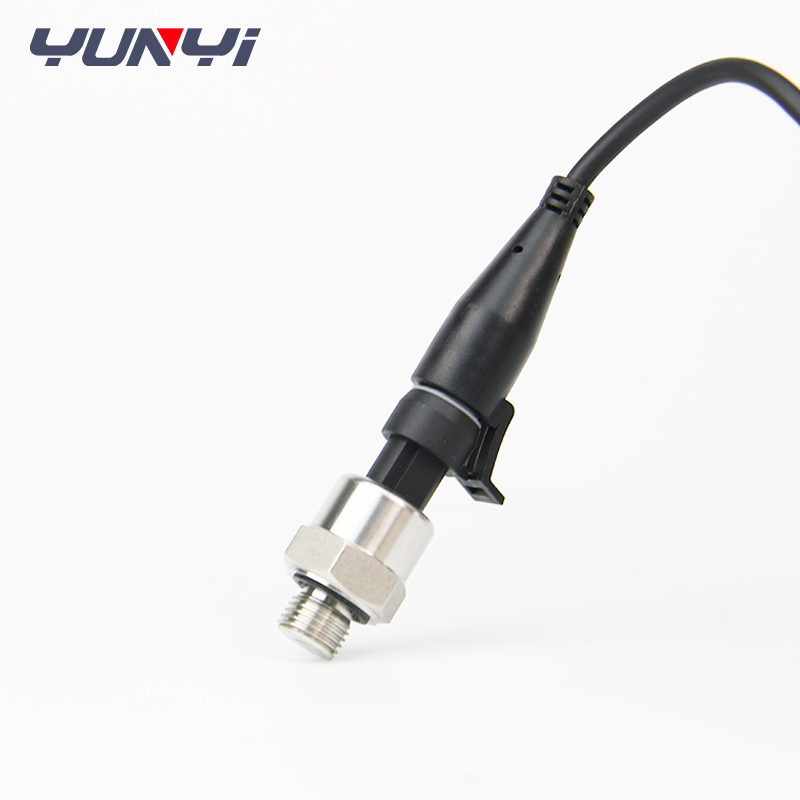

Appearance of I2C Ceramic Piezoresistive Pressure Sensor Air Water Pressure Sensor

Feature of I2C Ceramic Piezoresistive Pressure Sensor Air Water Pressure Sensor

1. Cheap and high quality

2. Small size, beautiful appearance and high cost performance;

3. Ceramic thick film manufacturing technology;

4. High integration and high stability;

5. Signal amplification, temperature compensation;

6. Safety explosion-proof;

7. Short delivery time.

Application of I2C Ceramic Piezoresistive Pressure Sensor Air Water Pressure Sensor

1. Non-corrosive gas and liquid pressure measurement of 304 stainless steel;
2. Compressor;
3. Automobile oil pressure measurement; 4. Nitrogen filling pressure measurement;
5. Tire inflator pressure measurement;
6. Water pump pressure measurement.
7. For fire fighting equipment.

Detailed picture I2C Ceramic Piezoresistive Pressure Sensor Air Water Pressure Sensor

YUN YI ,we are professional manufacturer that engaged in the fields of pressure measurement instrument.
we have 12 years sensor producing and developing experiences

Xi'an Yunyi Instrument Co., Ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.

12 moths warranty
OEM&ODM
Near 1/2 buyers found pressure sensor & contact us
