Micro Differential Pressure Transmitter Wind Pressure Detection Industry

Ask Lasest Price
Brand Name :	YunYi
Model Number :	F113
Price :	USD56/PC-USD79/PC
Payment Terms :	T/T, Western Union, D/A, D/P
Supply Ability :	1000PCS per month
Delivery Time :	10days

Add to Cart

Product Details
Company Profile

Micro Differential Pressure Transmitter Wind Pressure Detection Industry

Micro Differential Pressure Transmitter Wind Pressure Detection Industry Air Pressure Sensors

Description Air pressure transmitter micro differential pressure transducer

FM113 wind differential pressure transmitter is assembled by silicon piezoresistive differential pressure core, the whole product is of aluminum alloy structure, the two pressure interfaces are 6 air pipe joints, it can be directly installed on the measuring pipeline or connected through the pressure pipe, Simple installation, small and light structure.

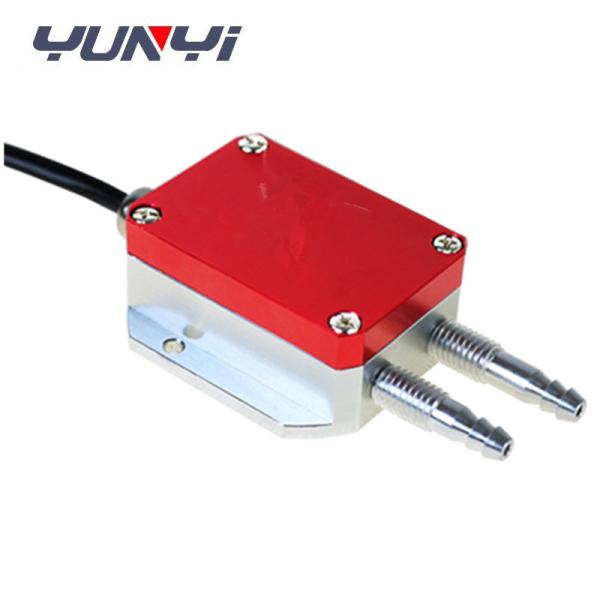

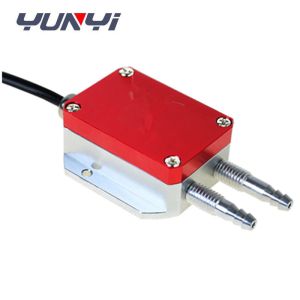

Detailed Images Air pressure transmitter micro differential pressure transducer

Specification Air pressure transmitter micro differential pressure transducer

LCD disply smart differential pressure transmitter
Range	-10Kpa-0-10Kpa
Medium	Dry Air
Max.Static pressure	70Kpa
Accuracy	±0.25%(Typical) ±0.5%(Max.)
Overload	20%FS
Long term stability	0.1%F.S/Y(≤2000KPa)
Temperature Drift	0.01%F.S/℃
Operating temperature range	-40℃~70℃
Storage temperature range	-40℃~70℃
Power supply	9~36VDC
Output signal	4~20mA /0-5V/0~10V//1~5V/RS485
Frequency response	less than 500Hz
Insulation resistance	100MΩ,100VDC
Protection	IP54

Application Air pressure transmitter micro differential pressure transducer

Compatible with 316LSS,noncorrosive gases

Wind pressure & velocity of flow in industry process Measuring pressure of pipeline &firepot

Petroleum industry, chemical industry Meteorological monitoring

Features Air pressure transmitter micro differential pressure transducer

Zero point, full range of sensitivity and temperature compensation, strong anti-interference, excellent long-term stability, diversified shape and structure.

Dimension Air pressure transmitter micro differential pressure transducer

Selection Guide Air pressure transmitter micro differential pressure transducer

FM113	Differential pressure transmitter
		Code	Range
		69	0-100pa
		70	0-200pa
		71	0-500pa
		01	0-1kpa
		02	0-2kpa
		03	0-5kpa
		04	0-10kpa
		72	±100pa
		73	±200pa
		74	±500pa
		36	±1kpa
		37	±2kpa
		38	±5pa
		39	±10pa
		67	others
			Code	Power supply
			D1	9-36VDC
			D2	15-36V(0-10v)
				Code	Output signal
				A1	4～20mADC
				V4	1～5VDC
				V5	0～5VDC
				V10	0～10VDC
				DZ	Others
					Code	Pressure port
					B	Φ8
					DZ	Others
