Description ceramic pressure sensor
YC18 temperature compensated ceramic piezoresistive pressure sensor is an ideal pressure sensing
element, it can be used to mount metal housing or directly
integrated with electronic circuits machinery and equipment
integration.
Full temperature compensated to ensure that within the operating
temperature range, the maximum temperature drift of no more than ±
0.03% FS / ºC. This structure makes the sensor remained very stable in harsh conditions . Internal sensing elements are fully protected
against humidity, moisture and chemical corrosion. Fear
condensation, providing a typical output 3mV / V, allows simple
signal conditioning..
Detailed Images ceramic pressure sensor
Specification ceramic pressure sensor
| Technical Parameters |
| Product name | Piezoresistive ceramic pressure sensor |
| Ceramic material | 96% alumina (Al2O3) |
| Item No. | YC18 |
| Pressure range | 2-600 bar |
| Dimension(mm) | φ18 * (3.5 ~ 6.35mm) (diameter * height) |
| Supply voltage | 30Vdc Max |
| Bridge impedance | 11KΩ±30% |
| Full range output | >2mV/V,typical value 3mV/V |
| Working temperature | -40~135ºC |
| Temperature drift (Zero &sensitivity) | ≤±0.03%FS/ºC |
| Comprehensive precision | ≤±0.3%FS |
| repeatability | ≤±0.1%FS |
| Zero offset | ≤±0.2mV/V |
| Breakdown pressure | ≥1.75~3 times pressure range |
Application ceramic pressure sensor
Air conditioning, automotive, industrial automation vehicles,
pumps, oil, chemicals, starting equipment, hydraulic equipment,
medical equipment, air compressors, refrigeration systems,
battery-powered equipment.
Features ceramic pressure sensor
Electrical specifications:
Maximum excitation: voltage 30 Vdc
Bridge impedance: 11 KW ± 30%
Zero offset: ≤ ± 0.2 mV / V
Insulation Resistance:≥ 2 KV
Zero long-term stability @ 20 ° C: ± 0.2% FSO, typ. (No time
cumulative)
Environmental Specifications:
Direct contact with the liquid material: 96% aluminum oxide
Operating temperature: - 40 up to + 135 ° C
Storage Temperature: - 50 up to + 150 ° C
Temperature drift (Zero & sensitivity): ≤ ± 0.04% FS / ° C
Relative Humidity: 0 - 100%
Sensor Weight: ≤7 g

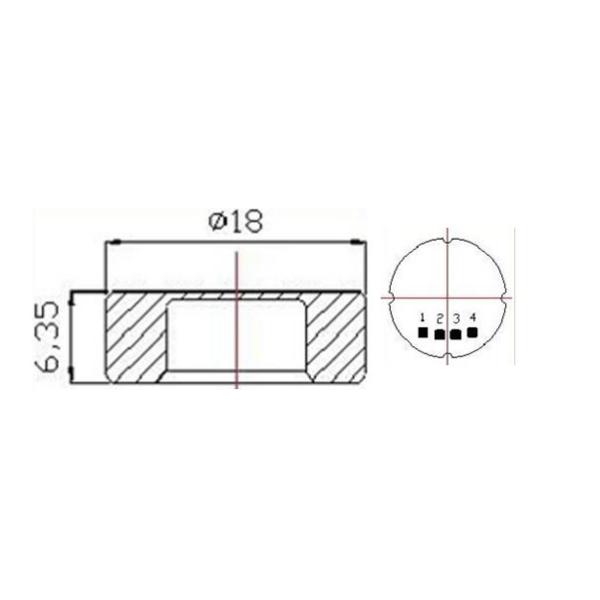

Dimensions and electrical wiring diagram:
Dimensions (mm): height = (3.5 ~ 6.35) ± 0.01
Electrical connection:
1. + Excitation voltage
2. - Output
3. - Excitation voltage
4. + Output
Select Guide ceramic pressure sensor
| Model | Range(bar) | Burst pressure(bar) |
| YC18-2 | 0...2 | 6 |
| YC18-5 | 0...5 | 15 |
| YC18-10 | 0...10 | 30 |
| YC18-15 | 0...15 | 45 |
| YC18-20 | 0...20 | 60 |
| YC18-25 | 0...25 | 75 |
| YC18-30 | 0...30 | 90 |
| YC18-40 | 0...40 | 100 |
| YC18-50 | 0...50 | 125 |
| YC18-70 | 0...70 | 175 |
| YC18-100 | 0...100 | 250 |
| YC18-200 | 0...200 | 500 |
| YC18-400 | 0...400 | 700 |
| YC18-600 | 0...600 | 1050 |
| Accuracy(Linear + hysteretic) ≤±0.3%FS(Endpoint Linearity) |
| Repeatability ≤±0.1%FS |
