Decription of Diaphragm Analog Vacuum Adjustable Wind Pressure
4-20mA Air Differential Pressure Control Switch
930. 931 differential pressure switch series products, this product
is widely used in monitoring gas, non-corrosive medium, measuring
absolute pressure, gauge pressure and absolute pressure.
Specification of Diaphragm Analog Vacuum Adjustable Wind Pressure
4-20mA Air Differential Pressure Control Switch
Using a handle with a scale scale, the switching pressure of the
differential pressure switch does not need to be displayed, but can
also be adjusted with a screwdriver.
Model | Pressure switch adjustable upper limit from to U | Switch difference setting | Upper and lower limit switch hysteresis |
930.931.80 | 20 200Pa | 10Pa | ± 15% |
930.931.84 | 30 300Pa | 20Pa | ± 15% |
930.931.83 | 50 500Pa | 30Pa | ± 15% |
930.931.85 | 200 1KPa | 100Pa | ± 15% |
930.931.86 | 0.5K2.5KPa | 150Pa | ± 15% |
930.931.87 | 0.5K2.5KPa | 250Pa | ± 15% |
The switch pressure should be specified for vertical installation,
we recommend using the pipe connection facing down, if the switch
is horizontal installation with AMP connector, the switch value may
be 20Pa higher than the actual value

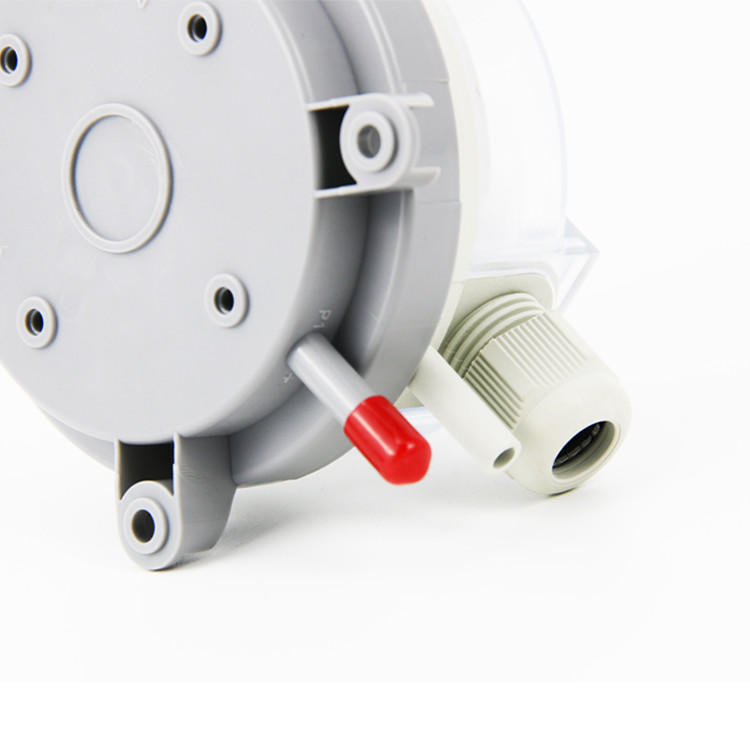

Detail image of Diaphragm Analog Vacuum Adjustable Wind Pressure
4-20mA Air Differential Pressure Control Switch
Features of Diaphragm Analog Vacuum Adjustable Wind Pressure 4-20mA
Air Differential Pressure Control Switch
Diaphragm material:: Silicone resin, the temperature is 15CTC,
other materials can be customize
pressure connection:2 plastic pipe connection holes P1 and P2,
outer diameter 6mm,
P1 is connected to high voltage, marked as +
P2 is connected to low voltage, the mark is one
AMP float insert 6.3mmX0.8mm, D1N standard
With three screw terminals, pressure connection tube
Shell material
The switch is PA6. 6
Shell is PS
Application of Diaphragm Analog Vacuum Adjustable Wind Pressure
4-20mA Air Differential Pressure Control Switch
Widely used in the following occasions
Air conditioning and clean room
Fan and blower control
Intelligent Building
Filter and blower controls
Environmental protection
Fluid and level control, etc
