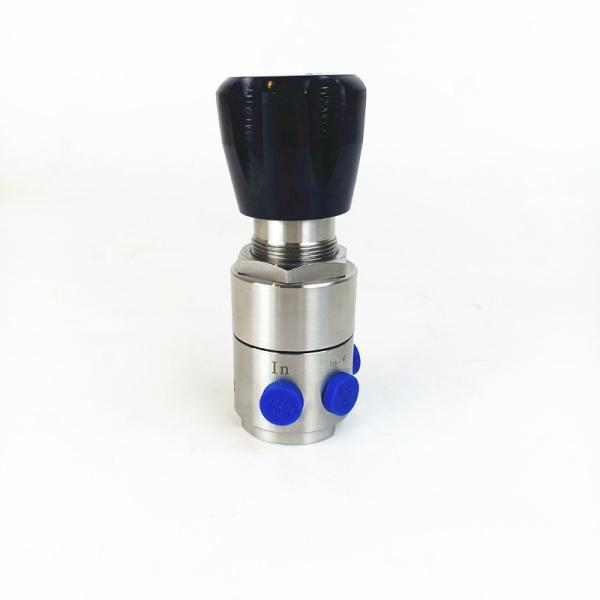

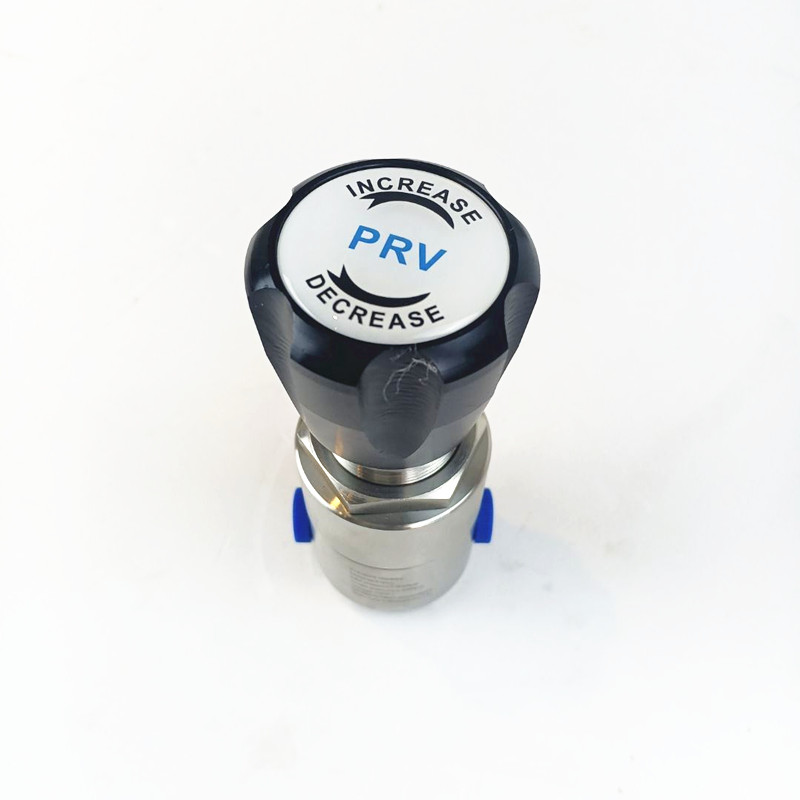

High Pressure Regulators Water Pressure Regulator Air Pressure
Regulator With Thread Connection
Description of High Pressure Regulators Water Pressure Regulator Air Pressure
Regulator With Thread Connection
High Pressure Regulators Water Pressure Regulator Air Pressure
Regulator With Thread Connection, single-stage diaphragm pressure
reduction structure, stainless steel diaphragm pressure
transmission, stable output pressure, suitable for pure gas,
standard gas, corrosive gas, etc.
Application scope of High Pressure Regulators Water Pressure Regulator Air Pressure
Regulator With Thread Connection
Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical
industry, Test Equipment
Basic High Pressure Regulators Water Pressure Regulator Air Pressure
Regulator With Thread Connection
Max inlet pressure: 3000psi, 6000psig,10000psi
Outlet pressure: 0-250psig, 0-500psig, 0-1500psig, 0-3000psig.
0-4000psi,0-6000psi
Safety testing pressure: 1.5 times of maximum inlet pressure
Working temperature: -23℃~ 74℃(-10°F ~ 165°F)
Leakage rate: 2*10-8 atm cc/sec He
CV value: 0.02, 0.06, 0.08, 0.2 or other customized
Weight: About 1.5kg
Ordering information High Pressure Regulators Water Pressure Regulator Air Pressure
Regulator With Thread Connection
| Model | Valve material | Inlet pressure | Outlet pressure | Pressure gauge | Inlet port | Outlet port |
| YR31 | - 316L
- Brass
- Nickel-plated brass
| - 0-10000psi
- 0-6000psig
- 0-3000psig
- 0-1500psig
- 0-1000psig
| - 0-6000psig
- 0-4000psig
- 0-2000psig
- 0-1000psig
- 0- 500psig
| - With gauge (mpa)
- With gauge (psig)
- Without gauge
| 1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom | 1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom |
Design features of High Pressure Regulators Water Pressure Regulator Air Pressure
Regulator With Thread Connection
- Double stage decompression structure
- Valve body and diaphragm adopt hard seal form
- The internal structure is easy to clean
- Inside is equipped with filter
- Can be panel mounted
- Can choose needle valve, diaphragm valve for outlet
Material of High Pressure Regulators Water Pressure Regulator Air Pressure
Regulator With Thread Connection
- Valve body: 316L Brass or Nickel-plated brass
- Top cover: 316L
- Diaphragm: 316L
- Filter: 316L (10μm)
- Valve seat: PCTFE , PTFE, Vespel
- Spring: 316L
