3000psi 6000psi Stainless Steel Pressure Sensor Gas Air Pressure Regulator

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	YR32 gas pressure regulator
Certification :	CE
Price :	82~236USD/PCS
Payment Terms :	T/T, Western Union
Supply Ability :	100pcs per week
Delivery Time :	10 work days

Add to Cart

Product Details
Company Profile

3000psi 6000psi Stainless Steel Pressure Sensor Gas Air Pressure Regulator

3000psi 6000psig stainless steel pressure sensor gas air pressure regulator price

Description

YR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.

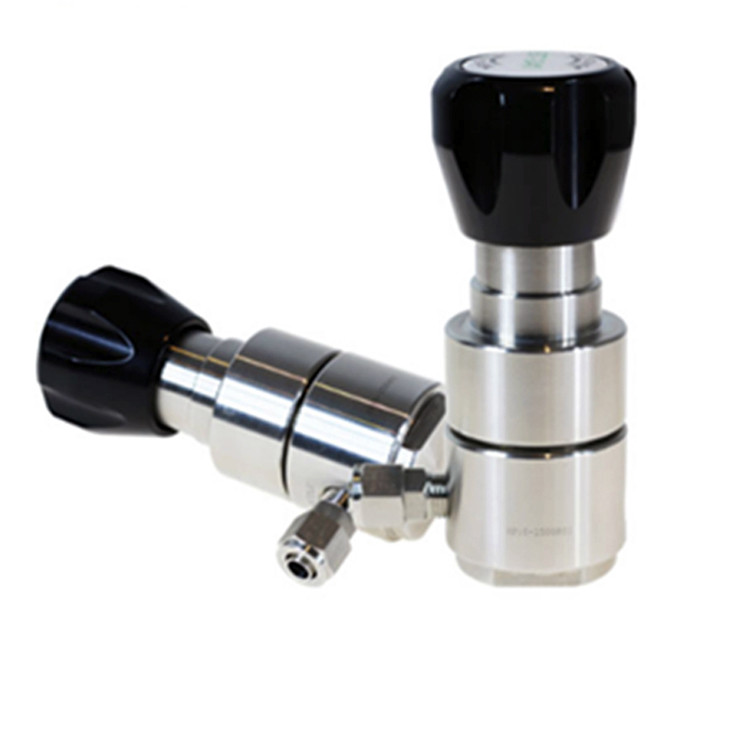

Detail image

3000psi 6000psi Stainless Steel Pressure Sensor Gas Air Pressure Regulator

Specification

Max inlet pressure: 3000psi, 6000psig
Outlet pressure: 0-250psig, 0-500psig, 0-1500psig, 0-3000psig.
Safety testing pressure: 1.5 times of maximum inlet pressure
Working temperature: -23℃~ 74℃(-10°F ~ 165°F)
Leakage rate: 2*10-8 atm cc/sec He
CV value: 0.02, 0.06, 0.08, 0.2
Weight: About 1.5kg

Feature

Double stage decompression structure
Valve body and diaphragm adopt hard seal form
The internal structure is easy to clean
Inside is equipped with filter
Can be panel mounted
Can choose needle valve, diaphragm valve for outlet

Application

Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment
