High temperature steam Threaded stainless steel steam hydraulic
pneumatic solenoid valve
Description High temperature steam Threaded stainless steel steam
hydraulic pneumatic solenoid valve
There is a closed cavity in the solenoid valve, with through holes
at different positions, each hole is connected to a different oil
pipe, the middle of the cavity is a piston, and the two sides are
two electromagnets. Which side of the magnet coil is energized will
be attracted to the valve body At the same time, by controlling the
movement of the valve body to open or close different oil discharge
holes, and the oil inlet hole is normally open, the hydraulic oil
will enter different oil discharge pipes, and then the piston of
the oil cylinder is pushed by the pressure of the oil, and the
piston is again Drive the piston rod, and the piston rod drives the
mechanical device. In this way, the mechanical movement is
controlled by controlling the current on and off of the
electromagnet.
Specification High temperature steam Threaded stainless steel steam hydraulic
pneumatic solenoid valve
| Use medium: | various gas liquids such as steam, hot water, high temperature oil,
air, etc |
| Fluid temperature: | PTFE: -20°C ~ 200°C VITON : -10°C ~120°C |
| Working pressure: | 0.05 ~ 1.60MPa |
| Valve body material: | brass or stainless steel sus304 (sus316 material is available), it
is recommended to use stainless steel body products, which can
improve the unreliability of the solenoid valve due to thermal
expansion |
| Connection size: | G or NPT thread, 3/8”, 1/2”, 3/4”, 1” 1 1/4”, 1 1/2”, 2” |
| Diameter (mm): | DN 12, 15, 20, 25, 32, 40, 50 25F, 32F, 40F, 50F flange connection |
| Optional voltage: | DC: 12V, 24V AC: 220/230V 110/120V 24V 50/60HZ |
| Coil type: | S21H, 22VA(AC), 14W(DC), IP65, 100%ED |
Material of High temperature steam Threaded stainless steel steam hydraulic
pneumatic solenoid valve
Valve body: brass or stainless steel 304 Seal: PTFE or Viton
Piston: stainless steel 304 Piston ring: Graphite PTFE
Movable and fixed iron core: stainless steel 1J117 Magnetic
isolation tube base and tube: stainless steel 304 Iron core spring
and other accessories: stainless steel 304
Parameters High temperature steam Threaded stainless steel steam hydraulic
pneumatic solenoid valve
CP32 series. Normally open S21H coil. Maximum pressure 1.60MPa
thread connection

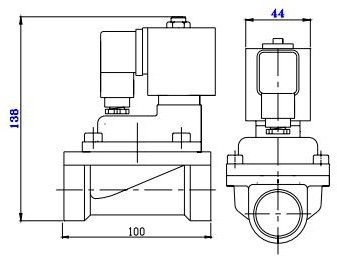

| Model No. | CP3212X X X | CP3215XX X | CP3220XX X | CP3225XX X | CP3232XX X | CP3340XX X | CP3250XX X |
| Length(A) | 75 | 75 | 83 | 100 | 130 | 130 | 155 |
| Width(B) | 48 | 48 | 60 | 72 | 96 | 96 | 122 |
| height(C) | 118 | 118 | 127 | 140 | 140 | 140 | 149 |
| Connection Distance(D) | 13.5 | 13.5 | 16.5 | 25 | 28 | 28 | 34 |
CP32 series. Normally open S21H coil. Maximum pressure 1.60MPa
Flange connection
| Model No. | CP3225FXXX | CP3232FXXX | CP3240FXXX | CP3250FXXX |
| Length (A) | 130 | 160 | 160 | 190 |
| Width (B) | 115 | 140 | 150 | 165 |
| Height(C) | 175 | 187 | 187 | 200 |
| Connecting distance(D) | 57.5 | 69 | 75 | 82.5 |
Selection Guide High temperature steam Threaded stainless steel steam hydraulic
pneumatic solenoid valve
