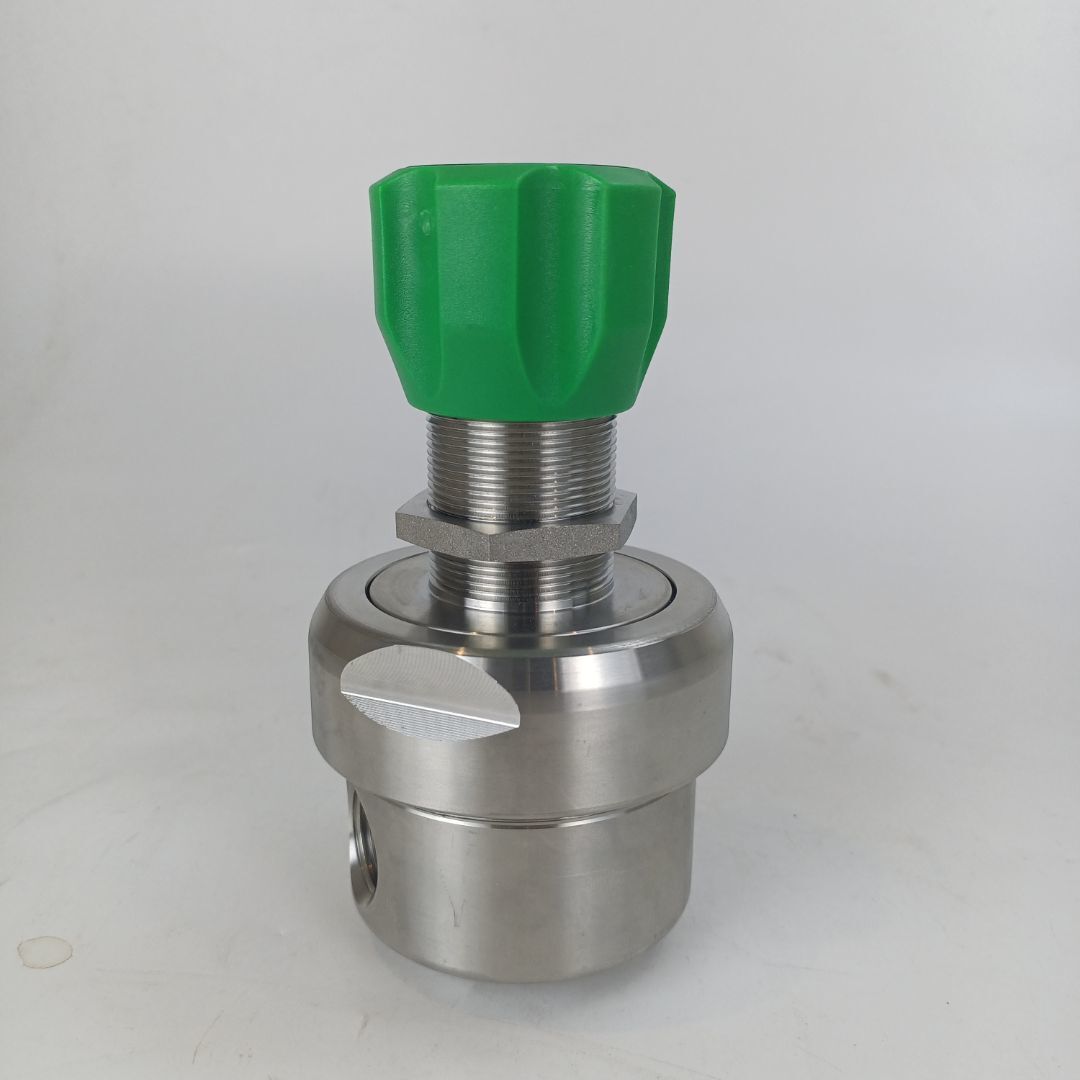

stainless steel back-pressure gas low back pressure valve regulator

Descriptionstainless steel back-pressure gas low back pressure valve regulator

This kind of back pressure regulator is with single-stage diaphragm plunger structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

Parameter stainless steel back-pressure gas low back pressure valve regulator

Basic parameters stainless steel back-pressure gas low back pressure valve regulator

1. Controlled pressure: 0-500psi

2. Safety test pressure: 1.5 times max inlet pressure

3. Applicable temperature: -40℉~+165℉(-40℃~+74℃)

4. Leak rate: 2x10-8 atm cc/sec He

5. CV value: 1.0

6. Thread connection type: 1/4 or 1/2fnpt

7. Weight: About 2.3 kg

8. Package size: 25cm*20cm*18cm

9. Material: Stainless steel.

10. Seals material: PCTFE or PEEK

Features stainless steel back-pressure gas low back pressure valve regulator

1. Single stage type Plunger structure

2. Maternal and diaphragm use hard seal form

3. The internal structure easy to purge and with filter

4. Can use panel or wall mounting

Applications stainless steel back-pressure gas low back pressure valve regulator

Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment
