Description
YR11 series stainless steel pressure reducer, unipolar diaphragm
decompression structure, stainless steel diaphragm pressure transmission, stable combing pressure, high
response sensitivity, suitable for pure gas, standard gas, corrosive gas
1: Unipolar decompression structure
2. The mother body and the diaphragm adopt a hard seal form
3. Female thread: 1/4''NPT (F)
4. Internal structure is easy to purge
5. Built-in filter
6. Can be installed in panel or wall
7 Scope of application: laboratory/gas chromatography instruments/ gas lasers/gas busbars/petrochemical industry/test equipment

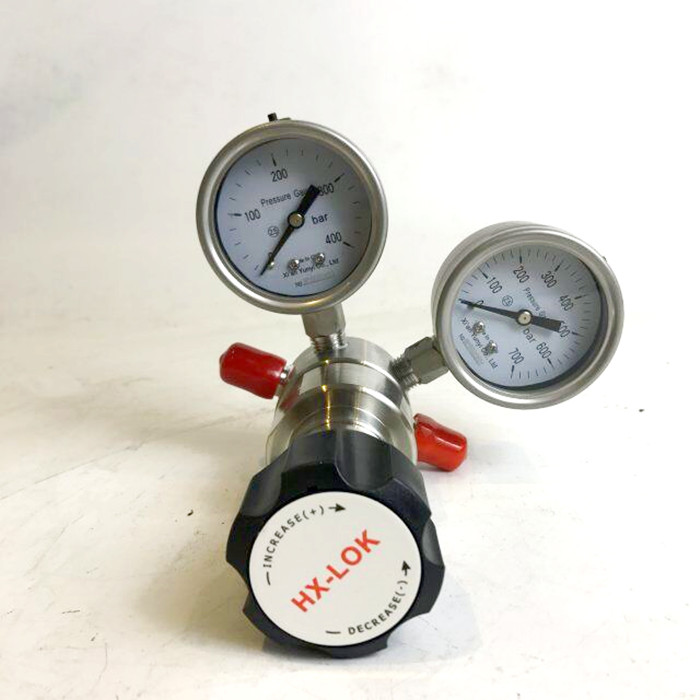

Detailed Images air pressure regulator
Specification gas pressure regulator
| Diaphragm | Hastelloy, 316L |
| Material | Body: 316L, BrassCover: 316L, Brass |
| Filter | 316L (10um) |
| Seat | PCTFE, PTFE, Vespel |
| Spring | 316L |
| Spool jack | 316L |
Features air gas pressure regulator
| Maximum input pressure | 500, 3000psig |
| Output pressure | 0~25, 0~50, 0~100, 0~250, 0~500psig |
| Safety test pressure | 1.5 times the maximum input pressure |
| Applicable temperature | -40F~+165F (-40~74ºC) |
| Leak rate | 2*10-8 atm cc/sec He |
| Cv value | 0.08 |
