Description nitrogen gas regulator price

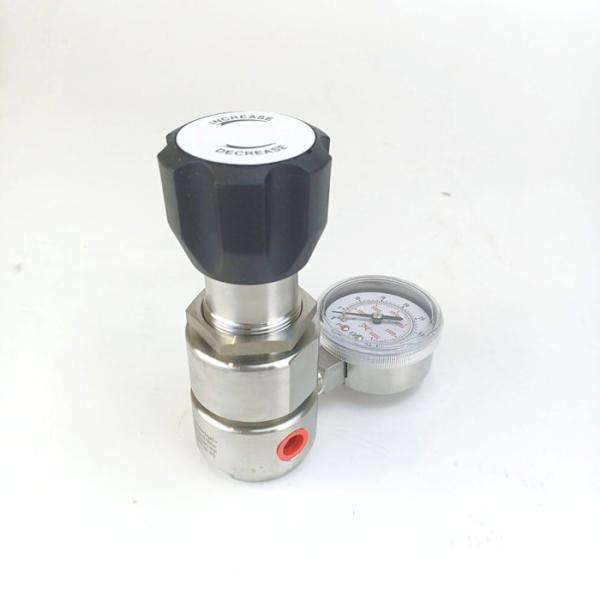

YR31 Series stainless steel pressure regulator adopts piston type
decompression structure, outlet pressure is stable, mainly used for
high inlet pressure requirements, suitable forhigh purity gas,
standard gas, corrosive gas, and other gas.
Detailed Images nitrogen gas regulator price
Specification nitrogen gas regulator price
| Material | 316 stainless steel |
| Outlet pressure range | 0 to 2500psi(172.4bar) |
| Max inlet pressure | 6000psi(413.7bar) |
| Discharge coefficient | (Cv)0.025 0.06(standard) 0.2 0.5 |
| Weight | 1.55kg |
| Max using temperature | ºC(ºF)::66(150) PCTFE:80(175) PEEK: 260 (500). |
| Max inlet pressure | psi(bar )::3600(248.2) PCTFE:6000(413.7) PEEK:3 600(248.2). |
Features nitrogen gas regulator price
1. Light weight, small occupation space for installation, can meet a
variety of gas or liquid applications.
2. The design of piston structure is compact.
3. Proper material adopts 316L stainless steel.
4. Installed with plate can be chosen.
5. Can be equipped with 20um filter at the entrance.
6.Pls make sure the using temperature, pressure,medium before
choosing the product.
7. All of the 316L stainless steel meets the ASTM standard.
8.All of the ,PCTFE,PEEK,Viton sealing material adopts imported bar material for precision machining.
Applications nitrogen gas regulator price
Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical
industry, Test Equipment
Selection Guide nitrogen gas regulator price
| Model | Valve material | Inlet pressure | Outlet pressure | Pressure gauge | Inlet port | Outlet port |
| YR31 | l 316L | 0-6000psig 0-3000psig 0-1500psig 0-1000psig | 0-4000 psig 0-2000 psig 0-1000 psig 0- 500 psig | l With gauge (mpa) l With gauge (psig) l Without gauge | 1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom | 1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom |
