316L Stainless Steel Nitrogen Gas Regulator With PTFE Seat

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	YR31
Certification :	/
Price :	$250
Payment Terms :	T/T, Western Union
Supply Ability :	200 Piece/Pieces per Month
Delivery Time :	10 works day

Add to Cart

Product Details
Company Profile

316L Stainless Steel Nitrogen Gas Regulator With PTFE Seat

Description 2022 Most Popular Nitrogen Gas Regulator Price

YR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.

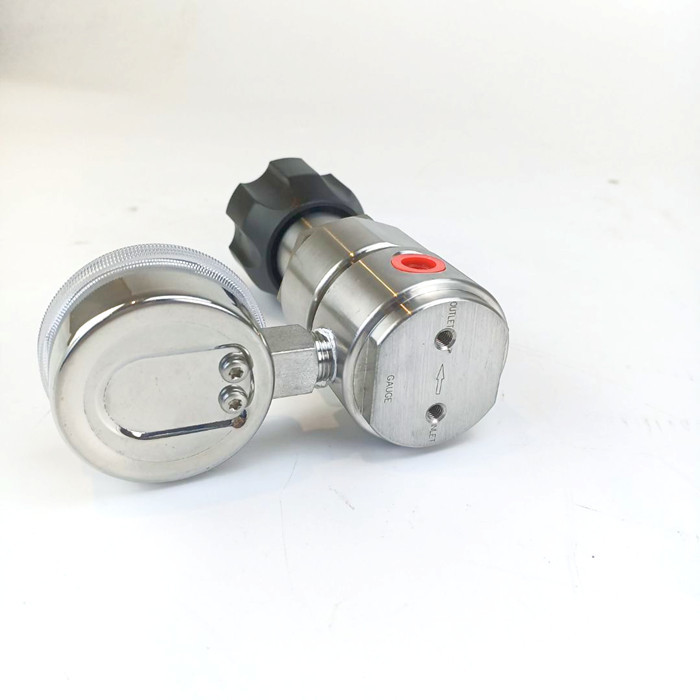

Detailed Images 2022 Most Popular Nitrogen Gas Regulator Price
316L Stainless Steel Nitrogen Gas Regulator With PTFE Seat

Specification 2022 Most Popular Nitrogen Gas Regulator Price
Material 316 stainless steel
Max inlet pressure 6000psi(413.7bar)
Outlet pressure range 0 to 2500psi(172.4bar)
Discharge coefficient(Cv) 0.025 0.06(standard) 0.2 0.5
Weight 1.55kg
Max using temperature ℃(℉)::66(150) PCTFE:80(175) PEEK: 260 (500).

Max inlet pressure psi(bar )::3600(248.2) PCTFE:6000(413.7) PEEK:3 600(248.2).

Features 2022 Most Popular Nitrogen Gas Regulator Price

1. Light weight, small occupation space for installation, can meet a variety of gas or liquid applications.

2. The design of piston structure is compact.

3. Proper material adopts 316L stainless steel.

4. Installed with plate can be chosen.

5. Can be equipped with 20um filter at the entrance.

6.Pls make sure the using temperature, pressure,medium before choosing the product.

7. All of the 316L stainless steel meets the ASTM standard.

8.All of the ,PCTFE,PEEK,Viton sealing material adopts imported bar material for precision machining.
