One stage 1000PSI Inlet 200PSI outlet 1/4NPT 316 diaphragm
stainless steel compressor pressure regulator valve
Description of One stage 1000PSI Inlet 200PSI outlet 1/4NPT 316
diaphragm stainless steel compressor pressure regulator valve
One stage 1000PSI Inlet 200PSI outlet 1/4NPT 316 diaphragm
stainless steel compressor pressure regulator valve is a universal
pressure reducing valve with a wide range of uses, which can be
used in semiconductors, laboratories, chemical analysis,
instrumentation, etc. It is an economical and ideal choice for
regulating gas or liquid pressure. 316L stainless steel body,
stainless steel valve stem and adjustment handle avoid
environmental corrosion. The surface finish inside the body is
high. You can choose a variety of different valve seat materials, a
variety of inner diameters and a variety of pressure control
ranges, and the stainless steel diaphragm provides reliability in
pressure and flow control. It has excellent accuracy, sensitivity
and stable pressure set point.
Specification of One stage 1000PSI Inlet 200PSI outlet 1/4NPT 316
diaphragm stainless steel compressor pressure regulator valve
| Application | air, gas, steam |
| Inlet pressure | 6000psi, 3000psi, 1500psi, 1000psi |
| Outlet pressure | 500psi, 250psi, 100psi, 50psi |
| Application | air, gas, oxygen, Nitrogen, water(need to customize) |
| Body material | ss316L, SS304, Brass |
| Seal material | PTFE, PCTFE, Viton, Vespel etc |
| Structure | diaphragm, piston, one stage, dual stage, back |
| Cv value | 0.06, 0.08 standard |
| Port thread | Standard 1/4NPTF, other can customize |
| Ports | standard 4 ports, can customize 3 ports, 6 ports |
| Weight | 1.8kg without guage, 2.5kg with two gauges |
| Mounted | Panel mounted |
| Protection | IP65 |
Feature of One stage 1000PSI Inlet 200PSI outlet 1/4NPT 316
diaphragm stainless steel compressor pressure regulator valve
1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3. The internal structure easy to purge and with filter
4. Can use panel or wall mounting
Application of One stage 1000PSI Inlet 200PSI outlet 1/4NPT 316
diaphragm stainless steel compressor pressure regulator valve
Gas Analysis Test
Laboratory
Petrochemical industry
Power Plant Equipment

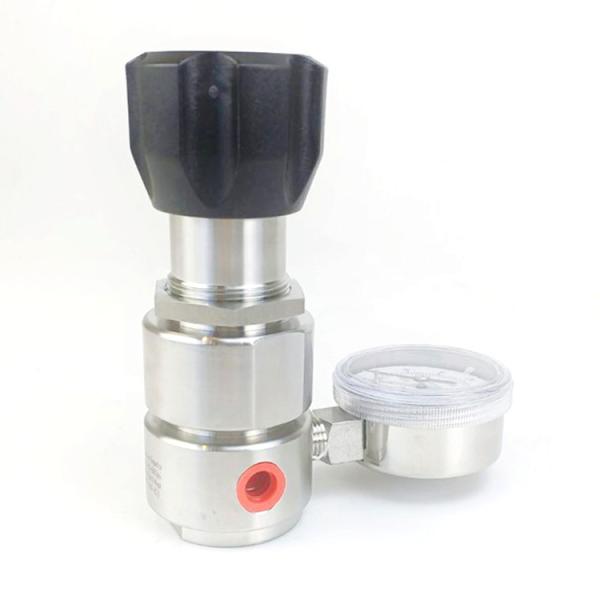

Detaild picture of One stage 1000PSI Inlet 200PSI outlet 1/4NPT 316
diaphragm stainless steel compressor pressure regulator valve
