Smart Water Precision Appliance 0 600 Bar Pressure Gauge Digital
Description Smart Water Precision Appliance 0 600 Bar Pressure Gauge Digital

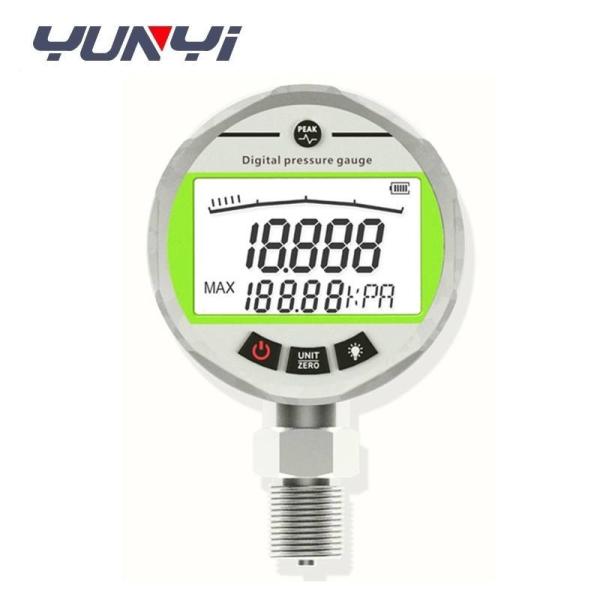

The YK-80 Intelligent Digital Pressure Gauge is a sophisticated
online measuring device, primarily governed by an advanced
single-chip microcomputer control system. This technologically
advanced instrument incorporates a superior quality pressure sensor
core that distinguishes it with remarkable precision, corrosion
resistance, and robustness against impact and vibration.
Additionally, this gauge is notable for its low temperature drift
and exceptional stability, ensuring reliable performance under
diverse conditions.
To extend the operational life of the device, it harnesses the
power of a low-power microprocessor, which significantly delays
battery consumption. This efficient power management allows the
YK-80 to function without the need for external power supplies,
contributing to its convenience in installation and use. The
versatility of the YK-80 is further demonstrated by its ability to
detect gauge pressure, absolute pressure, and differential
pressure, catering to a wide array of industrial measurement needs.
The product line includes various forms such as the standard model,
explosion-proof model, and diaphragm type, each designed to meet
specific application requirements. With these diverse options, the
YK-80 can address a broad spectrum of measurement challenges,
offering a tailored solution for different environments and
scenarios.
A significant advantage of the YK-80 is its capacity to
fundamentally overcome many of the limitations associated with
traditional pointer pressure gauges. Issues such as lower accuracy,
compromised reliability, and higher rates of damage are notably
mitigated, particularly in environments prone to corrosion and
vibration. This enhancement makes the YK-80 an invaluable upgrade
in locations where pointer gauges may have previously struggled to
perform adequately.
Widely applicable across numerous industries, the YK-80 finds
extensive use in the petroleum, chemical, and aviation sectors, as
well as in other industrial contexts involving gases and liquids.
Its intelligent design and multifaceted capabilities ensure that it
serves as a reliable and accurate tool for pressure measurement,
helping professionals to optimize operations and maintain safety in
their respective fields.
Parameter Smart Water Precision Appliance 0 600 Bar Pressure Gauge Digital
| Range | -0.1~0~100MPa | Accuracy | 0.2 ,0.5,1 |
| Overload capacity | 1.5 times | Pressure Type | Vacuum,Gauge,Absolute Pressure |
Response time:
| ≤50ms
| Battery voltage | Two AAA 7 batteries (3V) |
| Display | up to 4 dynamic pressure display
| Measuring medium: | water, gas, etc. compatible with stainless steel
|
| Connection size | M20x1.5 Male or oem | Pressure unit | MPa/Bar/Psi |
| Case material | SS | Working temperature: | -10～70°C
|
Features Smart Water Precision Appliance 0 600 Bar Pressure Gauge Digital
1. The keys are made of rubber conductive keys, which are gentle to
touch, easy to rebound, and have a longer life span.
2. The instrument interface use stainless steel, high hardness,
impact resistance, anti-rust and anti-fouling
3. FSTN large LCD screen, clear display, easy to read, viewing
angle and low temperature resistance performance is stronger than
ordinary STN
4. Using high-precision imported AD chip, low power consumption and
fast processing speed
5. Optimized circuit design, reduce signal transmission loss,
accurate sensing, accurate measurement
Order guide Smart Water Precision Appliance 0 600 Bar Pressure
Gauge Digital
| YK-80 | Digital Pressure Gauge |
| | Code | Measuring range |
| | | -0.1~0MPa, 0.6MPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa,
16MPa,25MPa, 40MPa..100Mpa |
| | | Code | Process connection |
| | | M1 | M20*1.5 Male | M4 | NPT3/8 Male thread |
| | | M2 | G1/4 Male thread | M5 | NPT1/4 |
| | | M3 | G1/2 Male thread | M6 | Customized |
| | | | Code | Power supply |
| | | | P1 | AAA 7 batteries |
| | | | P2 | Lithium battery |
| | | | | Code | Accuracy |
| | | | | 2 | 0.2 |
| | | | | 3 | 0.4 |
| | | | | 4 | 1 |
