Low Cost Precise Diaphragm Stainless Steel Pressure Meter Shock-proof Glycerine Liquid Filled Pressure Gauge

Description

YN series Glycerine filled stainless steel pressure gauge with direct contact, fittings and pressure sensitive element of SUS316 material, has strong anti-corrosion properties of the measured medium, at the same time, housing, machines and other core components are all 1Crl8Ni9Ti, OCrl8Ni 12M02Ti material. Hermetically structure, the outer surface of the entire spray PTFE coating, has the best corrosion resistance to environmental capacity, so that the product is suitable for corrosive medium stainless steel element detection and harsh external corrosive environments.

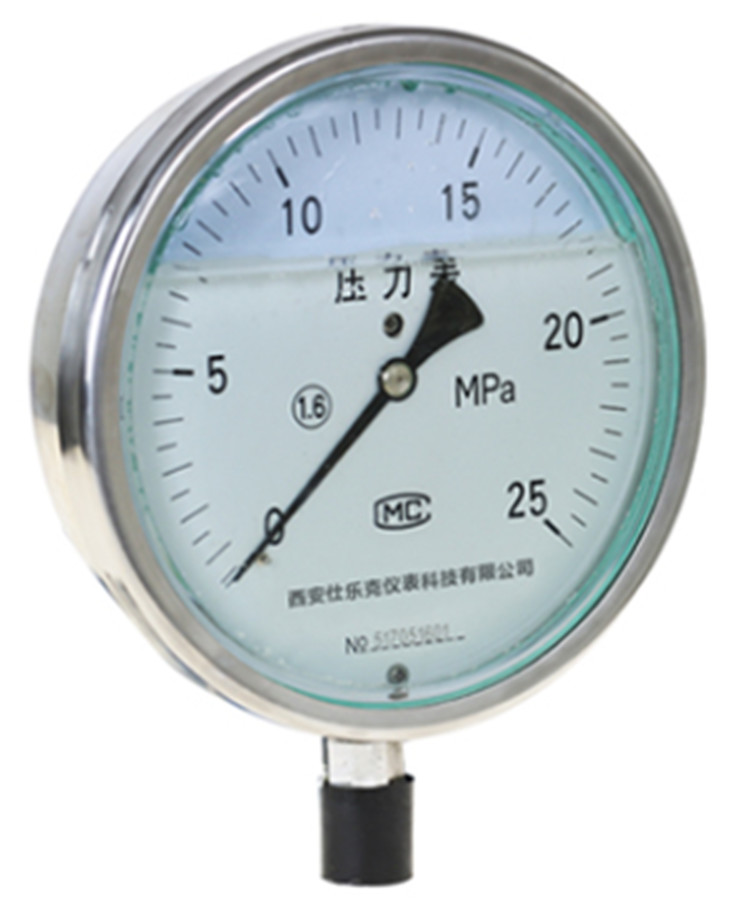

Detailed image

Specification

1.Accuracy class: 1.6, 2.5,1.0(custom)
2.Measuring range: (Mpa) (custom)
0-0.16 0-0.25 0-0.1 0-0.4
0-0.6 0-1.6 0-2.5 0-1
0-40-60-100-16
0-250-400-60
-0.1-0 -0.1-0.06 -0.1-0.15 -0.1-0.3
-0.1-0.5 -0.1-0.9 -0.1-1.5 -0.1-2.4
3. Parts material: SUS316, SUS316L, 1Crl8Ni9Ti(custom)
4. The instrument nominal diameter: Φ60mm Φ100mm Φ150mm( custom)
5. Connector thread size: M20X1.5 (G3 / 8 ", Gl / 4", NPTl / 2 "or custom)
6.Working conditions:
(1) Ambient temperature: -40-70 ℃
(2) Working pressure: Static load: with a scale value 3/4 alternating load: The
scale value short 2/3 pressure: the scale value

Features

• liquid (silicon oil) filled pressure gauge for the environment of severe vibration, can withstand the media pulse, shock and sudden unloading, instrument instructions stable and clear
• suitable for corrosive environments and gaseous or liquid media
• used in high dynamic pressure pulsations or vibration pressure pulsations or vibration

Application

Widely used in Industrial, petroleum, chemical, heating systems, piping, instrumentation,pneumatic line and auxiliary equipment.
