Description YK80 intelligent digital pressure manometer gauge
YK-80 Using high-precision low-power large-scale integrated circuit as
the core device, it is mainly composed of high-precision
measurement chip, battery charging protection circuit, sensor and
signal processing circuit. This product uses microprocessor to
automatically compensate and correct the zero drift and
nonlinearity of the instrument, and adopts high-performance devices
such as high-stability pressure sensors to ensure the accuracy and
reliability of the instrument. The instrument can set various
functional parameters by itself, has flexible application, and has
various functions to choose from. It can be used as a high-accuracy
pressure calibration standard (meter), and can also be used as a
working instrument, electric power, metallurgy, petroleum ,
chemical and other industries for measurement and scientific
research in laboratories and on-site.

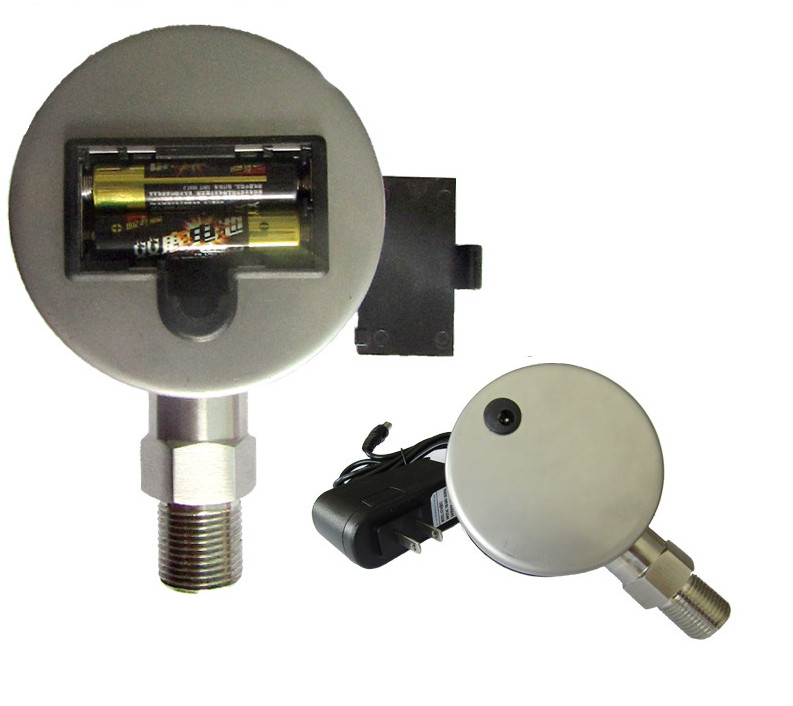

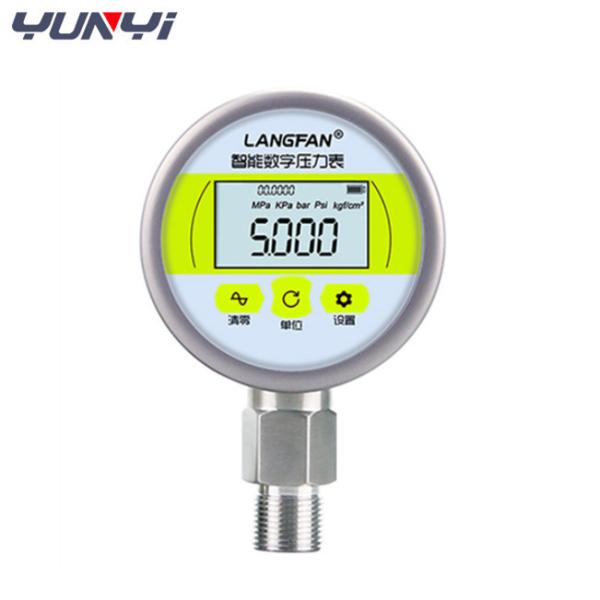

Detailed Images YK80 intelligent digital pressure manometer gauge
Features YK80 intelligent digital pressure manometer gauge
1. The keys are made of rubber conductive keys, which are gentle to
touch, easy to rebound, and have a longer life span.
2. The instrument interface use stainless steel, high hardness,
impact resistance, anti-rust and anti-fouling
3. FSTN large LCD screen, clear display, easy to read, viewing
angle and low temperature resistance performance is stronger than
ordinary STN
4. Using high-precision imported AD chip, low power consumption and
fast processing speed
5. Optimized circuit design, reduce signal transmission loss,
accurate sensing, accurate measurement
6. One-key zero calibration, long press the zero key under
atmospheric pressure to calibrate the zero.
7. The backlight time can be set freely. Long press the backlight
to adjust the duration of the backlight.
8.Muti dispaly unit
likeMpa,kpa,bar,pa,mH2O,mmH2o,kg/cm2,psi,mmHg,mbar,in.Hg,in.WC
based on different
Range,default 3-5 type.
9.Used to petroleum, chemical industry, power plant, water supply
of town, Horologic exploration fields.
Specification YK80 intelligent digital pressure manometer gauge
| Range | -0.1~0~100MPa | Accuracy | 0.2 ,0.5,1 |
| Overload capacity | 1.5 times full | Pressure Type | Vacuum,Gauge,Absolute Pressure |
Response time:
| ≤50ms
| Battery voltage | Two AAA 7 batteries (3V) |
| Display | up to 4 dynamic pressure display
| Measuring medium: | water, gas, etc. compatible with stainless steel
|
| Connection size | M20x1.5 Male or oem | Pressure unit | MPa/KPa/Bar/Psi/Kg/cm2 |
| Case material | SS | Working temperature: | -10~60°C
|
Order guide YK80 intelligent digital pressure manometer gauge
FAQ
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market
test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the
prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and
10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished
goods) + good warranty service(1 year free to change a new one
without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And
before the delievry of goods, quality and safety inspection
certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure
for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional
R&D dept which can provide professional solutions for you.
