Piston Type Dead Weight Tester YS Series Pressure Gauge Manometer

Decription

1. calibration standard which uses a piston cylinder on which a load is placed to make an equilibrium with an applied pressure underneath the piston.
2. The pistons and piston cylinder is made of the carbide tungsten carbide materials which has high strength, high hardness, and low temperature , so,it has wide working temperature and stable performance of 20 + / - 5 ℃.
3. The weight of the pressure gauge is made of stainless steel
4. The piston top and bottom moves ±1.5mm
5. The piston runs smoothly, the pressure fluctuation is minimal and the value is accurate.
6. Over 25MPa, Ensure the high sensitivity of the pressure gauge, we use the octyl sebacate as transmission medium


Application

Piston gauges are used to calibrate customer piston gauges and pressure sensing devices

Specification

YS-6 0.04～0.6MPa.
YS-60 0.1～6MPa.
YS250 0.5～25MPa.
YS600 1～60MPa

Features

• high sensitivity
• rotation of the piston is more stable
• use displacement sensor monitoring
• sensitive, smart, accurate

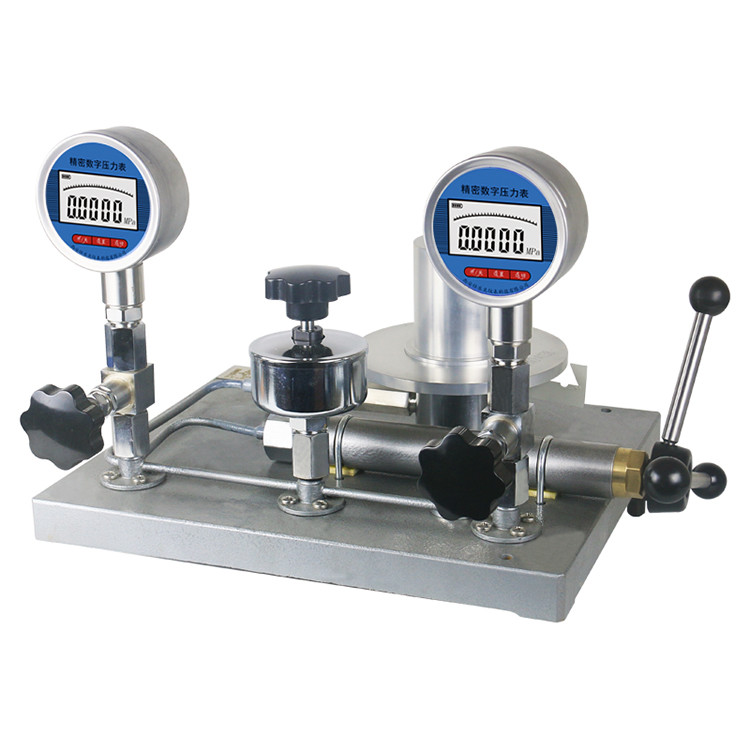

Detailed image

YUN YI ,we are professional manufacturer that engaged in the fields of pressure measurement instrument.
we have 12 years sensor producing and developing experiences

Xi'an Yunyi Instrument Co., Ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.

12 moths warranty
OEM&ODM
Near 1/2 buyers found pressure sensor & contact us
