    YS Hydraulic Pressure Dead Weight Tester 60Mpa For Lab Calibration

    Ask Lasest Price
    Brand Name : Yunyi
    Model Number : YS Series
    Certification : CE RoHS
    Price : USD795 ~ USD926.00/set
    Payment Terms : L/C, T/T, Western Union, MoneyGram PayPal
    Supply Ability : 500sets/month
    Delivery Time : 5 ~ 8 working days after payment
    • Product Details
    • Company Profile

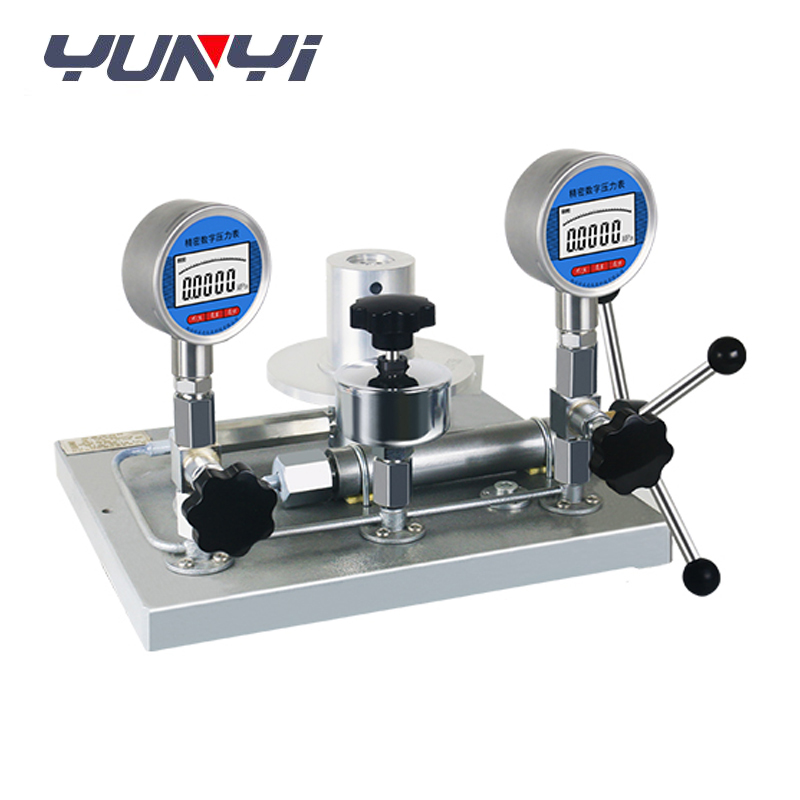

    YS Hydraulic Pressure Dead Weight Tester 60Mpa For Lab Calibration

    New YS Hydraulic Pressure Calibrator Dead Weight Tester 1 ~ 60Mpa For Lab Calibration

    Description

    Hydraulic pressure calibrator Dead weight tester is a Standard calibration. Dead weight testers are so called primary standards which means that the pressure measured by a dead weight tester is defined through other quantities; Length, mass and time. Typically dead weight testers are used in calibration laboratories to calibrate pressure transfer standards like electronic pressure measuring devices.

    Detailed Images


    Specification


    ParameterUnitePressure Range
    0.6Mpa6Mpa25Mpa60Mpa
    Upper limitMpa0.662560
    Lower limitMpa0.040.10.51
    Nominal piston areacm210.50.20.1
    Base and PistonNominal massKg0.40.511
    Generated pressureMPa0.040.10.51
    Special WeightsNominal massKg0.1;0.50.5;2.51;51;5
    Generated pressureMPa0.01;0.050.1;0.50.5;2.51;5
    Qtypcs6 ;104;114;94;11
    Thread SizeM20×1.5M20×1.5M20×1.5M20×1.5
    WeightKg35604784
    Medium25# transformer oil or mixer of transformer oil and kerosene oil as 7:1, the kinematic viscosity is between 9 ~ 12 centistoke at 20,acid value is not more than 0.05mg KOH/gSebacate (DIDG or diisooctyl sebacate) the kinematic viscosity is between 20 ~ 25 centistoke at 20,acid value is less than 0.05mg KOH/g
