Description High quality pneumatic hydraulic pressure calibrator for sale
Oxygen gauge and pressure gauge dual-purpose calibrator is suitable
for measurement and inspection institutions at all levels and
industrial and mining enterprises. It adopts the comparison method
to verify common pressure gauges and other oil-prohibited pressure
gauges. This calibrator uses a column under the action of a hand
pressure lever The plug pump generates pressure, and a secondary
oil-water isolation device is set up to transmit the pressure
through the oil circuit and the water circuit. It can not only
verify the pressure gauge, but also the oxygen meter, and one
machine can be used for two purposes. The machine has reasonable
structure, easy operation, stable performance and safety.
Durability, etc.

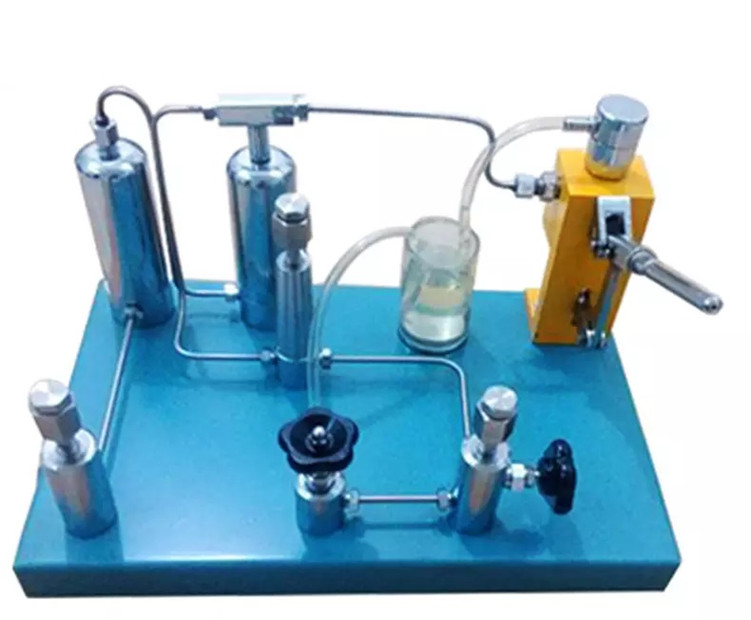

Detailed Images High quality pneumatic hydraulic pressure calibrator for sale
Features High quality pneumatic hydraulic pressure calibrator for sale
Oxygen gauge pressure gauge dual-purpose calibrator pressure
holding performance: far better than the national standard
Strength and sealing: first pressurize to 80Mpa for 5min, and then
the pressure drop value within 5min should be less than or equal to
2Mpa.
Why choose Xi'an Shelok's dual-purpose calibrator for oxygen gauge
and pressure gauge?
The core component of the quality of the dual-purpose calibrator is
the quality of the plunger system. The plunger system consists of a
piston rod and a piston cylinder. In the traditional manufacturing
process, the piston rod and the piston cylinder are made of alloy
steel, quenched and ground. , In the most important grinding
process, a grinder is used, and the grinding accuracy of the
grinder is 5U, and we use manual grinding, the same process as the
production of piston pressure gauges. The system truly does not
release pressure and does not leak pressure, which is the first in
China.
The dual-purpose calibrator is a cost-effective product, which can
detect both the oxygen meter and the pressure gauge, which is
convenient and affordable, but the dual-purpose calibrator uses an
oil-water secondary isolation device, which is not safe without
pure water pressure source. Our company For the production water
pressure source, please consult our relevant sales staff for
information
Application High quality pneumatic hydraulic pressure calibrator for sale
It is suitable for indoor, laboratory and general environment use.
Widely used in petroleum, chemical, textile, rubber, electric
power, metallurgy, medicine, food and other fields of automatic
detection and control
Datasheet High quality pneumatic hydraulic pressure calibrator for sale
Parameter description of dual-purpose calibrator for oxygen gauge
and pressure gauge:

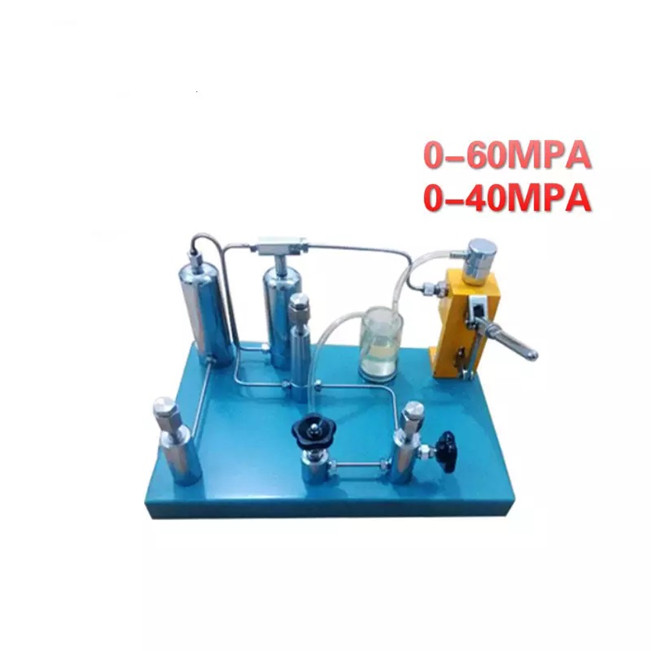

Model: XY-60S Working range: 0~60Mpa
Model: XY-40S Working range: 0~40Mpa
Dimensions: 470x320x298
Working medium: clean water and transformer oil
| Work Condition | On site or laboratory | Pressure range | 0~40MPa 0~60MPa |
| Fine Adjustment | 10Pa | Medium | Hydraulic oil, castor oil and pure water |
| Weight | 35KG | Accessories | Certificate*1, warranty card*1, manual*1,Wearing parts (several) |
| Pressure connection | M20*1.5(3pcs) | Volume | 470x320x298mm |
