New YS Hydraulic Pressure Calibrator Dead Weight Tester

Description New YS Hydraulic Pressure Calibrator Dead Weight Tester

Hydraulic pressure calibrator Dead weight tester is a Standard calibration. Dead weight testers are so called primary standards which means that the pressure measured by a dead weight tester is defined through other quantities; Length, mass and time. Typically dead weight testers are used in calibration laboratories to calibrate pressure transfer standards like electronic pressure measuring devices.

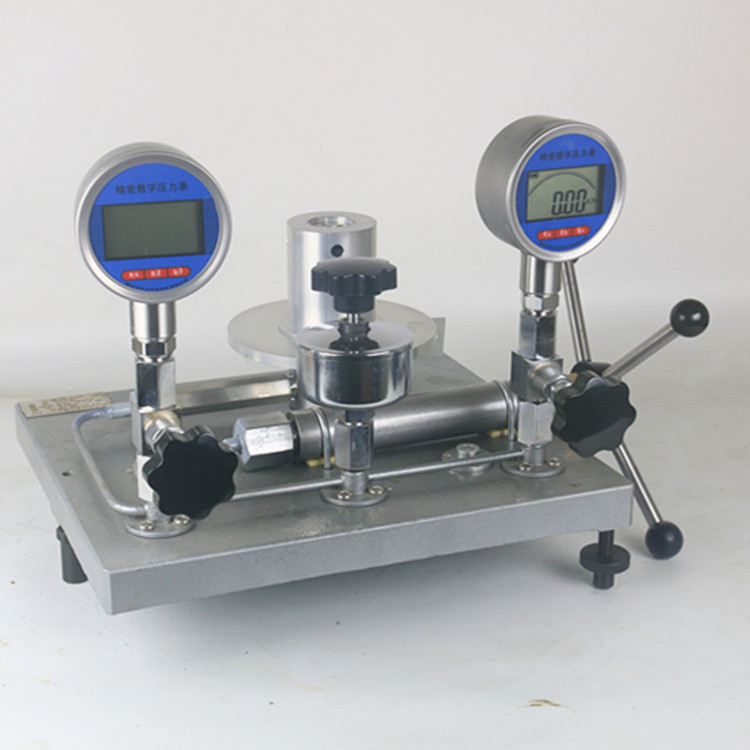

Detailed Images New YS Hydraulic Pressure Calibrator Dead Weight Tester

Specification New YS Hydraulic Pressure Calibrator Dead Weight Tester

Type			YS-6	YS-60	YS-250	YS-600
Technical data		unit	range
			0.04～0.6MPa	0.1～6MPa	0.5～25MPa	1～60MPa
Nominal up limit		MPa	0.6	6	25	60
Nominal down limit		MPa	0.04	0.1	0.5	1
Mearument up limit		MPa	0.6	6	60	60
Mearument limit		MPa	0.04	0.1	0.5	1
Nominal piston area		CM 2	1	1	0.5	0.1
Carrier and piston	Nominal mass	Kg	0.4	0.5	0.5	1
Carrier and piston	Produced Pressure	MPa	0.04	0.5	0.5	1
Supplied Weights	Nominal mass	Kg	0.1;0.5	1;5;	0.5; 25	10；50
	Produced Pressure	MPa	0.01;0.05	0.1;0.5	0.05；2.5	1；5;
	Quantity Block	piece	6；10	4；11	4；9	4；11
Connection			M20 × 1.5	M20×1.5	M20 × 1.5	M20×1.5
weight		Kg	35	65	75	95
Working Medium			Transformer Oil (viscosity 9~12 centistokes at 20i), or Medical Castor Oil (aciditymg KOH/g)		Sebacate (amyl sebacate or dioctyl sebacate) 20:00 kinematic viscosity of 20 to 25 per cent pool, acid value of not more than 0.05 mg KOH / g

Features New YS Hydraulic Pressure Calibrator Dead Weight Tester

YS-6 Deadweight Tester. Pressure Range 5.8 - 87psi. Accuracy: 0.05% or 0.02% of reading.

YS-60 Deadweight Tester. Pressure Range 14.5 - 870 psi. Accuracy: 0.05% or 0.02% of reading.

YS600 Deadweight Tester. Pressure Range 145 - 8700 psi. Accuracy: 0.05% or 0.02% of reading
