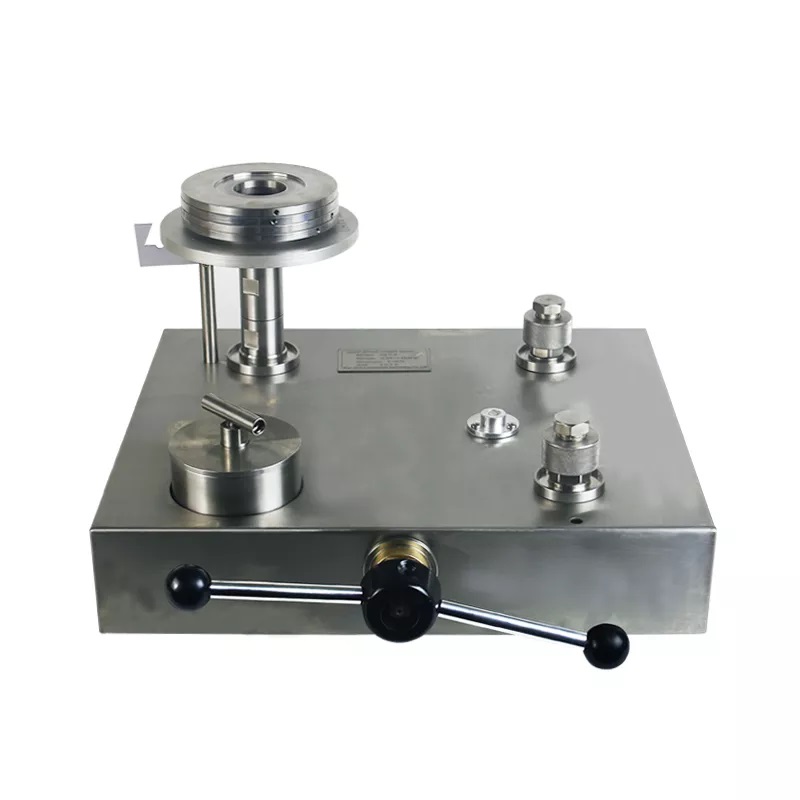

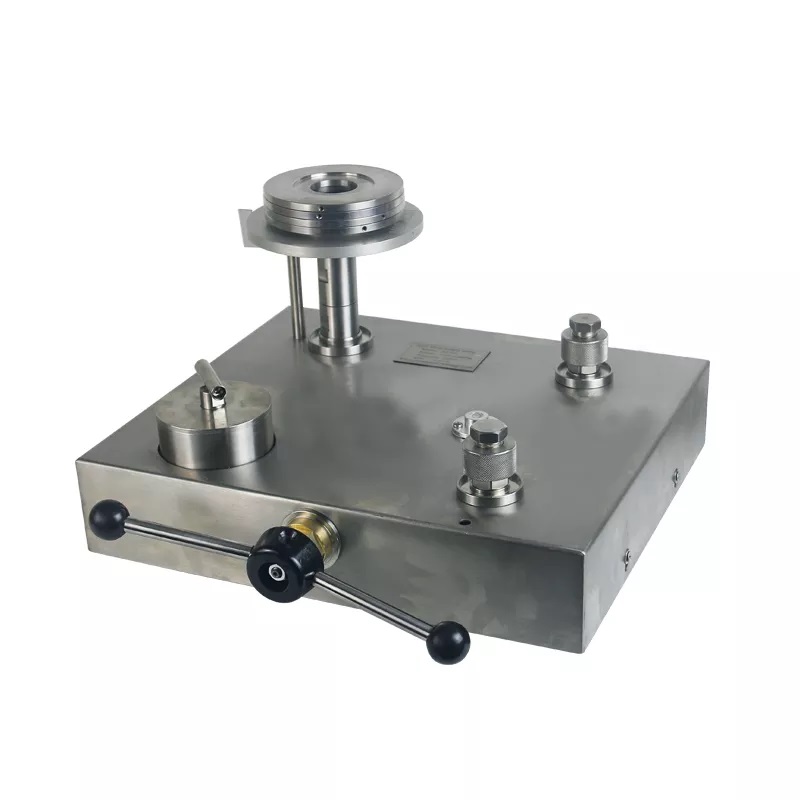

Hydraulic High Performance Dead Weight Tester Piston Pressure Gauge
Calibrator
Description Hydraulic High Performance Dead Weight Tester Piston Pressure Gauge
Calibrator
In order to meet the requirements of more micro-enterprises for
metrological verification, our company has introduced an economical
piston-type pressure gauge, which fully meets the requirements of
national verification regulations, with simple structure, reliable
performance and high cost performance.
Features Hydraulic High Performance Dead Weight Tester Piston Pressure Gauge
Calibrator
1.Meet the national standards such as JJG59-2007 piston pressure
gauge verification procedures
2.Piston system with tungsten carbide structure
3.The piston system rotates more smoothly with a low center of
gravity
The piston rod adopts a break-proof structure to avoid the loss
caused by misoperation.
4.Modular design, light displacement indication to meet different
customer needs
The whole pipeline is welded, and the pipeline withstand voltage of
250MPa does not have oil leakage during use.
5.For the use of the production enterprise, the load-bearing disc
structure is adopted, and the use weight is more convenient.
6.Position indicator, the piston different displacement indicator
color is not the same (self-developed domestic only)
7.Tungsten carbide piston system but can continue to use the
chassis instead of the hanging basket structure (the only one in
China).
Specification Hydraulic High Performance Dead Weight Tester Piston Pressure Gauge
Calibrator
Market Positioning Hydraulic High Performance Dead Weight Tester Piston Pressure Gauge
Calibrator
Replace the YS dead weight tester to purify the metering market.
As a cost-effective piston gauge, for production companies.
As a benchmark for pressure benchmarks, it has become one of the
indispensable devices for measuring units.
Technical Parameters Hydraulic High Performance Dead Weight Tester Piston Pressure Gauge
Calibrator
| Model | Q-0.6 , JQ-6 JQ-25 , JQ-60 |
| Nominal range | 0.04 ~ 0.6MPa ; 0.1~6 MPa ; 0.5~25MPa ;1~60 MPa; |
| Measurement range | 0.04 ~ 0.6MPa ; 0.1~6 MPa ; 0.5~25MPa ;1~60 MPa |
| Accuracy | 0.02 grade(±0.02%) ;0.05grade(±0.05% ) |
| Medium | Transformer oil or mixed oil of transformer oil and kerosene. |
Selection Guide Parameters Hydraulic High Performance Dead Weight Tester Piston Pressure Gauge
Calibrator
| Model | Measuring range(Mpa) | Accuracy |
| JQ-06 | 0.04--0.6 | 0.05%FS 0.02%FS 0.01%FS |
| JQ-6 | 0.1--6 |
| JQ-60 | 1--60 |
| JQ-100 | 1--100(2--200) |
| JQ-160 | 2--160 |
| JQ-250 | 5--250 |
