Description High Performance Piston Pressure Gauge Calibrator Dead Weight
Tester
JQ piston Deadweight Tester is my company's fourth generation of
products, this product is in the YS piston Deadweight Tester and KY
piston Deadweight Tester based on the research and development
made. Cost-effective, durable, piston system has a break-proof
structure, greatly reducing the loss of piston rod rupture due to
improper operationball.

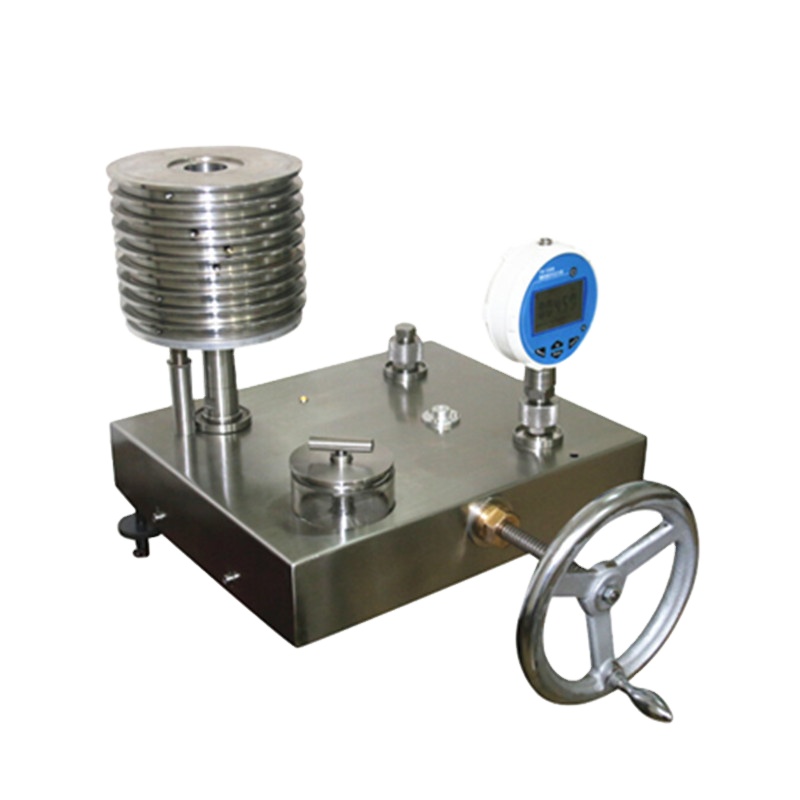

Detailed Images High Performance Piston Pressure Gauge Calibrator Dead Weight Tester
Specification High Performance Piston Pressure Gauge Calibrator Dead Weight
Tester
Measuring range: 0.04 ~ 0.6MPa 0.1 ~ 6MPa 0.5 ~ 25MPa 1 ~ 60MPa 2 ~
100MPa
Accuracy level: 0.05 ,0.02
Function: Used to test digital pressure gauge, precision pressure
gauge, pressure transmitter
Piston material: Piston rod: Tungsten carbide
Piston tube: tungsten carbide
Weight Material: non-magnetic stainless steel (0.02), carbon steel
(0.05)
Feature High Performance Piston Pressure Gauge Calibrator Dead Weight Tester
1.Meet JJG59-2007 piston gauge test procedures and other national
standards
2.Piston system using tungsten carbide structure
3.Piston system with a low center of gravity rotation more smoothly
4.Piston rod with anti-off structure, to avoid misuse caused by the
loss
5.Modular design, light displacement indicator, electric pre-press
system, embedded digital pressure gauge, etc., to meet different
customer needs
6.The overall pipeline are welded, the pipeline pressure 250MPa use
of the phenomenon of oil leakage and so there is no
7.For the use of production enterprises, the use of bearing plate
structure, the use of more convenient.
8.Displacement instructions for the color lamp instructions, red
low in the piston, piston balance position into a yellow light, the
piston high into a green light.
9.Pressurization does not use pre-pressurization, lighter pressure,
high calibration efficiency
10.0.02 level stainless steel floor, with the growth of useful
life, the table is still very new.
Selection Guide High Performance Piston Pressure Gauge Calibrator Dead Weight
Tester
| Model | Measuring range(Mpa) | Accuracy |
| JQ-06 | 0.04--0.6 | 0.05%FS 0.02%FS 0.01%FS |
| JQ-6 | 0.1--6 |
| JQ-60 | 1--60 |
| JQ-100 | 1--100(2--200) |
| JQ-160 | 2--160 |
| JQ-250 | 5--250 |
