Description of Digital Air Flowmeter/Gas Turbine Gas Flow Meter
LWQ series turbine flow meter is a kind of intelligent integration
by using the latest international digital integrated technology and
according to the actual needs of domestic industrial automatic
control research and development of a new generation of high
quality intelligent instrument.Piezoelectric crystals as detecting
element stress testing new type intelligent turbine flow meter.
This instrument has the range than wide, high precision, small
pressure loss, good medium generality, and the flow rate is
proportional to the pulse output, current signal, the RS - 485
communication, and computer combination conveniently.This
Instrument has the characteristics of simple structure, high
universality and high stability, respectively, are two kinds of
active, passive, passive type does not need outer power supply
built-in 3.6 V batteries, battery life more than three years.
Features of Digital Air Flowmeter/Gas Turbine Gas Flow Meter
Intelligent Liquid lpg gas Turbine flowmeter
The sensor is with hard alloy bearing thrust type, which may
guarantee the precision and improve the wear resistance performance
as well.
Simple and firm structure, easy for installation and dismantling.
Wide range of measuring with very lower flow velocity limit.
Small loss of pressure,fine repeat
Ability and high precision.
High resistance to electromagnetic interference and vibration.
Specification of Digital Air Flowmeter/Gas Turbine Gas Flow Meter
| Model | LWQ-N | LWQ-A | LWQ-B | LWQ-C | LWQ-D |
| Signal output | pulse | 4-20mA | without | 4-20mA | optional 4-20mA/ pulse |
| Power supply | +24VDC±15% | +24VDC±15% | lithium battery | 24VDC±15% | 24VDC±15% + lithium battery |
| Accuracy | 2.5~1.5 | 1.5~1.0 | 1.5~1.0 |
| Range | Standard range | Standard range or extension | Standard range or extension |
| Display | | With | With |
| Temperature compensation | | | With |
| Communication interface | | | RS485 |
| Real time recording | | | With |
| Instrument material | Aluminum alloy or stainless steel | Aluminum alloy or stainless steel | Aluminum alloy or stainless steel |
| Explosion-Proof | ExdIIBT6 or ExiaIICT4 | ExdIIBT6 or ExiaIICT4 | ExdIIBT6 or ExiaIICT4 |
| Protection | IP65 | IP65 | IP65 |
| Overall power consumption | <1W | <1W | <1W |
| Instrument drift diameter | DN25~DN300 | DN25~DN300 | DN25~DN300 |
| Installation | Flanged mounting | Flanged mounting | Flanged mounting |
| Medium temperature | -20°C~80°C | -20°C~80°C | -20°C~80°C |
| Environment temperature | -30°C~60°C | -30°C~60°C | -30°C~60°C |

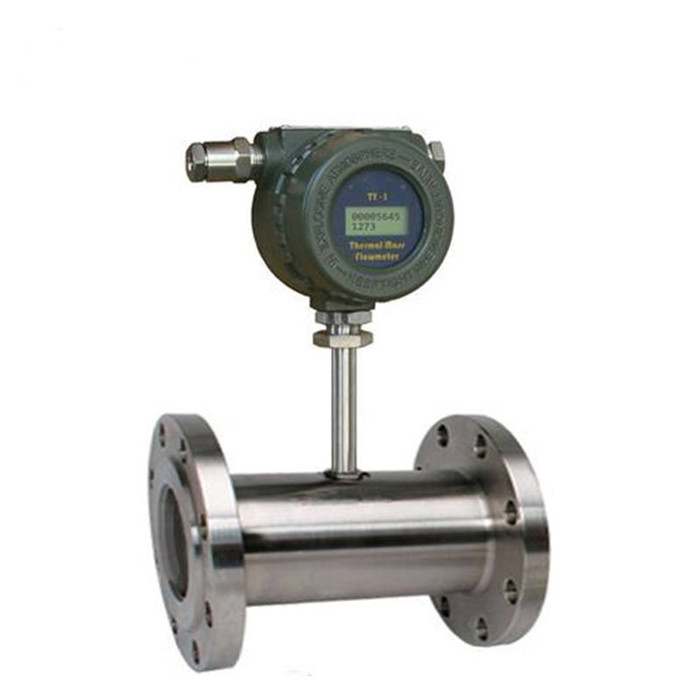

Detailed images of Digital Air Flowmeter/Gas Turbine Gas Flow Meter
