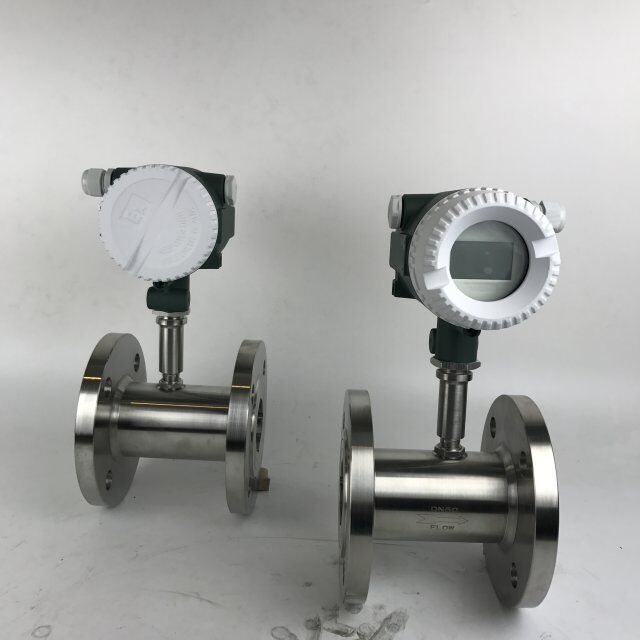

Stainless Steel Hydraulic Turbine Digital Flow Meter

Liquid Turbine Hydraulic Oil Water Fuel Digital Flow Meter 2"

Description Liquid Turbine Hydraulic Oil Water Fuel Digital Flow Meter 2"

Turbine flowmeter is the main variety of impeller type flow meter, impeller type flowmeter, anemometer, water meter, etc.The TUF consists of a sensor and a conversion display instrument. The sensor USES a multi-blade rotor to feel the average flow

velocity of the fluid, thereby deriving the flow or total volume.The rotor speed (or number of turns) can be detected by mechanical,

magnetic induction, photoelectric method and recorded by the readout device

Parameter Liquid Turbine Hydraulic Oil Water Fuel Digital Flow Meter 2"

Model	LWGY-N	LWGY-A	LWGY-N Explosion type	LWGY-A Explosion type	LWGY-B	LWGY- C
Signal output	pulse	4-20mA	pulse	4-20mA	without	4-20mA/pulse
Power supply	+24VDC±15%	+24VDC±15%	24VDC±15%	24VDC±15%	lithium battery	24VDC±15%
Accuracy	1.0~0.5		1.0~0.5		1.0~0.5
Measuring range	Standard		Standard		Standard or extended
Monitor	without		without		within
Communication Interface	without		without		RS485
Material	stainless steel		stainless steel		stainless steel
Explosion	without		ExdIIBT6 or ExiaIICT4		ExdIIBT6 or ExiaIICT4
Protection class	IP60		IP65		IP65
Power consumption	＜1W		＜1W		＜1W
Instrument pass through	DN4~DN250		DN4~DN250		DN4~DN250
Medium temperature	-20℃~120℃		-20℃~120℃		-20℃~120℃
Ambient temperature	-30℃~60℃		-30℃~60℃		-30℃~60℃

Table 1 (reference value)

Instrument Path	Standard range (m3/h)	Extended range (m3/h)	Installation method	Conventional pressure (MPa)	Special pressure rating (MPa)
DN 4	0.04～0.25	0.04～0.4	Thread (flange)	6.3	12,16,25
DN 6	0.1～0.6	0.06～0.6	Thread (flange)	6.3	12,16,25
DN 10	0.2～1.2	0.15～1.5	Thread (flange)	6.3	12,16,25
DN 15	0.6～6	0.4～8	Thread (flange)	6.3,2.5(Flange)	4.0,6.3,12,16,25
DN 20	0.8～8	0.45～9	Thread (flange)	6.3,2.5(Flange)	4.0,6.3,12,16,25
DN 25	1～10	0.5～10	Thread (flange)	6.3,2.5(Flange)	4.0,6.3,12,16,25
DN 32	1.5～15	0.8～15	Flange (thread)	6.3,2.5(Flange)	4.0,6.3,12,16,25
DN 40	2～20	1～20	Flange (thread)	6.3,2.5(Flange)	4.0,6.3,12,16,25
DN 50	4～40	2～40	Flange (thread)	2.5	4.0,6.3,12,16,25
DN 65	7～70	4～70	Flange	2.5	4.0,6.3,12,16,25
DN 80	10～100	5～100	Flange	2.5	4.0,6.3,12,16,25
DN 100	20～200	10～200	Flange	1.6	4.0,6.3,12,16,25
DN 125	25～250	13～250	Flange	1.6	2.5,4.0,6.3,12,16
DN 150	30～300	15～300	Flange	1.6	2.5,4.0,6.3,12,16
DN 200	80～800	40～800	Flange	1.6	2.5,4.0,6.3,12,16
