Description of Smart steam vortex flow meter
Analog water vorte x flowmeter is a volumetric flowmeter that measures the volumetric flow of
gas, steam or liquid, volumetric flow or mass flow according to the
Karman vorte x principle. And can be used as a flow transmitter in
the automated control system vorte x flowmeter.The instrument uses
advanced differential technology, with isolation, shielding,
filtering and other measures to overcome the similar products, poor
shock resistance, small signal data disorder and other issues, and
the use of a unique sensor packaging technology and protective
measures to ensure product reliability The Products are basic and
complex two types, the basic measurement of a single flow signal;
composite can simultaneously achieve temperature, pressure, flow
measurement. Each type has a whole, split structure to accommodate
different installation environments.
Specification of Smart steam vortex flow meter
| Nominal pass(mm) | 15,20,25,40,50,65,80,100,125,150,200,250,300 |
| Instrument material | 1Cr18Ni9Ti |
| Nominal pressure (Mpa) | PN1.6Mpa;PN2.5Mpa;PN4.0Mp |
| Measured medium temperature(ºC) | -40~+250ºC;-40~+350ºC |
| Environmental conditions | Temperature -10 ~ +55 ºC, relative humidity of 5% to 90%,
atmospheric pressure 86 ~ 106Kpa |
| Accuracy | Liquid: ± 0.5 for indication; gas or steam: ± 1.0,± 1.5for indication |
| Range ratio | 1:10;1:15 |
| Resistance loss factor | Cd<2.6 |
| output signal | Optional 4-20mA or pulse |
| Power supply | Sensors: + 12VDC, + 24VDC (optional) |
| Transmitter: + 24VDC |
| Live display type: instrument comes with 3.2V lithium battery |
| Signal transmission line | STVPV3 × 0.3 (three-wire), 2 × 0.3 (two-wire) |
| Installation method | Flange clamp or integral flange connection |
| Transmission distance | ≤500m |
| Signal line interface | Internal thread M20 × 1.5 |
| Explosion protection rating | ExdIIBT6 |
| Protection class | IP65 |
| Allow vibration acceleration | 1.0g |

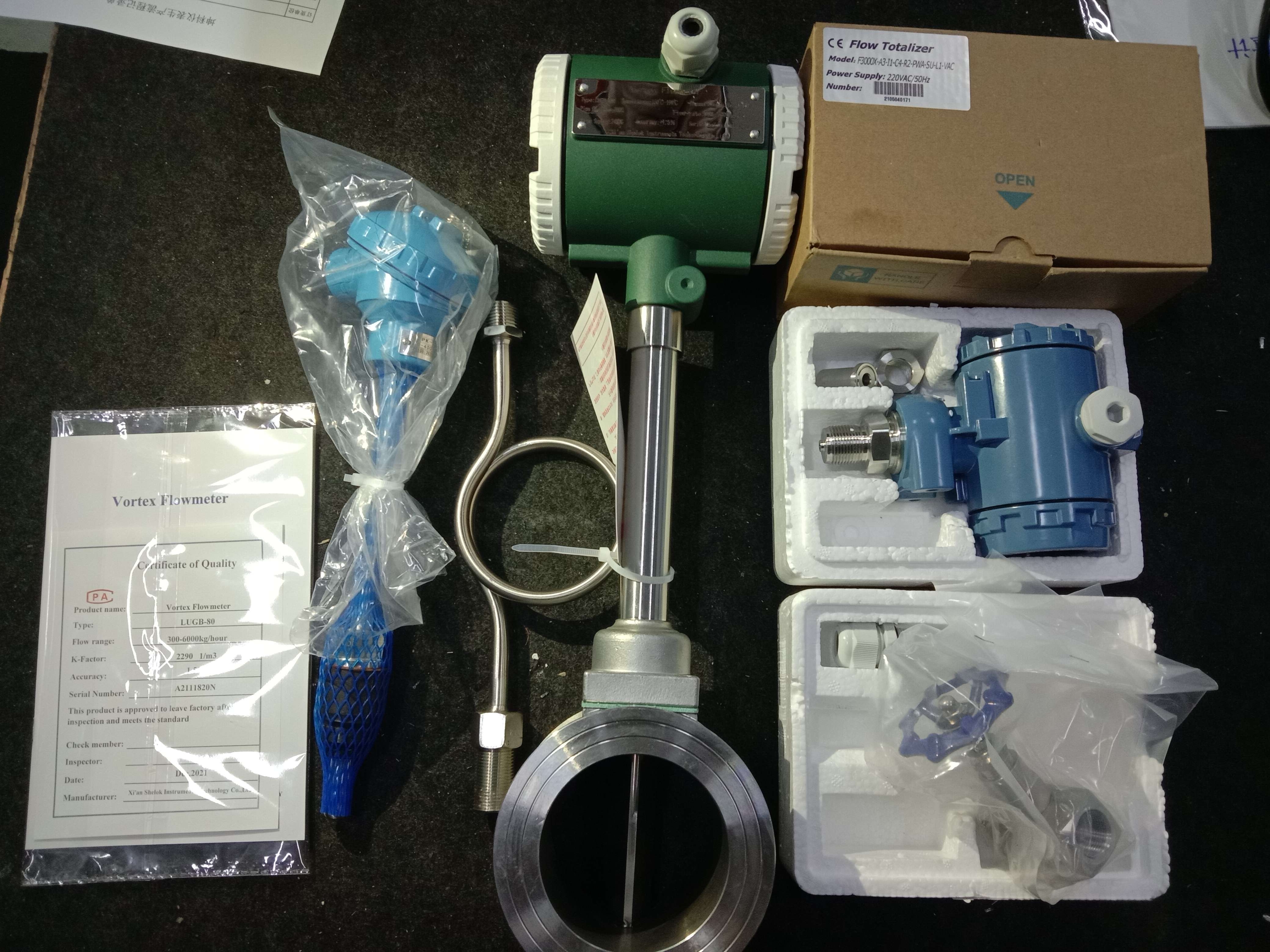

Detailed images of Smart steam vortex flow meter
Features of Smart steam vortex flow meter
1.No moving parts, long-term stability, simple structure and easy
to install and maintain
2.Using the noise circuit and anti-vibration sensor head, with a
certain anti-environmental vibration performance
3.Using ultra-low-power single-chip microcomputer technology, a
3.2V10AH lithium battery can be used for more than 5 years
4.By the software on the instrument coefficient of non-linear
correction, improve the measurement accuracy
5.Pressure loss is small, wide range of range
6.Using EEPROM to the cumulative flow power protection, protection
time is greater than 10 years
Selection Guide of Smart steam vortex flow meter
| Caliber (mm) | Liquid measurement range (m3 / h) | Gas measurement range (m3 / h) |
| DN15 | 1.2-6.2 | 5-25 |
| DN20 | 1.5-10 | 8-50 |
| DN25 | 1.6-16 | 10-70 |
| DN32 | 1.9-19 | 15-150 |
| DN40 | 2.5-26 | 22-220 |
| DN50 | 3.5-38 | 36-320 |
| DN65 | 6.2-65 | 50-480 |
| DN80 | 10-100 | 70-640 |
| DN100 | 15-150 | 130-1100 |
| DN125 | 25-250 | 200-1700 |
| DN150 | 36-380 | 280-2240 |
| DN200 | 62-650 | 580-4960 |
| DN250 | 140-1400 | 970-8000 |
| DN300 | 200-2000 | 1380-11000 |
