Portable flowmeter / totameter / effusion meter handheld ultrasonic
flow meter sensor
Description
Portable Ultrasonic fuel flow meter utilizes two transducers that
function as both ultrasonic transmitters and receivers. The
Ultrasonic liquid flow meter are clamped on the outside of a closed
pipe at a specific distance from each other. The transducer of flow
meter can be mounted in V-method where the sound transverses the
pipe twice, or W-method where the sound transverses the pipe four
times, or in Z-method where the transducers are mounted on opposite
sides of the pipe and the sound crosses the pipe once
Specification
Principle | Transit-time ultrasonic flowmeter |
Accuracy | ±1% |
Display | 4×16 character LCD with backlight, support the language of Chinese,
English and Italy |
Data Interface | Insulate Rs232 serial interface, upgrade the flowmeter software by
computer |
Pipe Material | Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC,
Aluminum, Glass steel product, liner is allowed |
Pipe Diameter | 25~6000mm |
Straight Pipe | Transducer installation should be satisfied: upstream10D,
downstream 5D, 30D from the pump |
Type of Liquid | Single liquid can transmit sound wave, such as Water (hot water, chilled water, city water, sea water,
waste water, etc.); Sewage with small particle content; Oil (crude oil, lubricating
oil, diesel oil, fuel oil, etc.); Chemicals (alcohol, etc.); Plant effluent; Beverage; Ultra-pure liquids, etc. |
Temperature | -30~160℃ |
Turbidity | No more than 10000ppm and less bubble |
Flowrate | 0~±10m/s |
Temperature | Convertor:-20~60℃；Flow Transducer:-30~160℃ |
Humidity | Convertor: 85%RH；Flow Transducer: Ip67 |
Power Supply | 3 AAA built-in Ni-MH batteries 1.2V(for over 12 hours of
operation). 90V-260V AC adapter |
Power Consumption | 1.5W |
Case Material | ABS |
Dimension | 200*93*32MM(Convertor) |

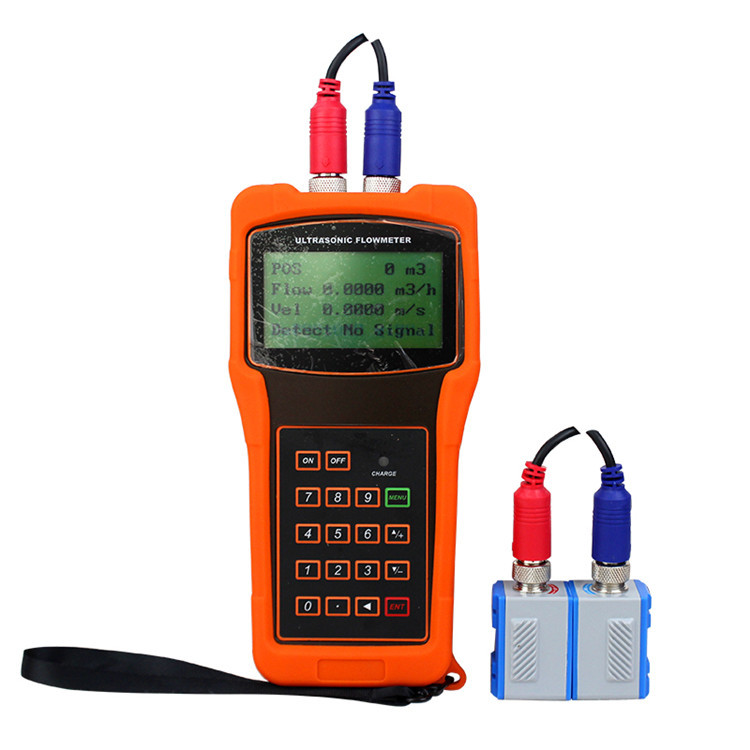

Detailed image
Features & Application
High accuracy
Wide measuring range
Large capacity battery
Built-in printer,Built-in data logger
RS485 communication interface
Multiple input and output signals
used in tap water, heating, water conservancy, metallurgy, chemical
industry, machinery, energy, etc. Also can be used for production
of water, balance debugging, debugging, network monitoring, energy
saving monitoring.
