GPT230 Analog Ceramic Pressure Transducer 0~5V 4~20mA Stainless Steel CE RoHs

Ask Lasest Price
Brand Name :	YunYi
Model Number :	YD31
Price :	USD26.0/PC-USD46.0/PC
Payment Terms :	T/T, Western Union, D/A, D/P
Supply Ability :	1000PCS per month
Delivery Time :	10days

Add to Cart

Product Details
Company Profile

GPT230 Analog Ceramic Pressure Transducer 0~5V 4~20mA Stainless Steel CE RoHs

GPT230 analog 0~5V 4~20mA stainless steel CE RoHs ceramic pressure transducer

Product description 4-20ma absolute pressure intelligent water pressure transmitter sensor

YD31 series pressure transmitter have the characteristics of high quality, high stability, small size, low weight, compact structure, low cost and volume-production. It is widely used to measure pressure such as occasion of compressor, Auto, air condition etc. The product is made of stainless steel and well-known brand sensor. The special transmitter converting circuit can adjust the zero value and the full range expediently. It also has the intrinsically safe certificate, the explosion-proof certificate. The product is produced with military craft and has the characteristics of advanced design, perfect technology, strict production, superior device, superior management, perfect quality control system.

Detailed Images 4-20ma absolute gauge smart water pressure transmitter sensor

Specification 4-20ma absolute gauge smart water pressure transmitter sensor

Measure Range	-100kPa~0.....10kPa...100MPa
Pressure Type	gauge (G), absolute (A), sealed gauge (S)
Overpressure	150%FS
Accuracy	0.2%FS, 0.5%FS
Output signal	4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire)
Supply	12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc
Temp.coefficient of zero	±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Temp.coefficient of span	±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Compensated temperature range	-10~+70°C
Operating temperature range	-40~+125°C
Storage temperature range	-40~+125°C
Insulating resistance	≥100MΩ@100Vdc
Load resistance	R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output)
Electrical interface	DIN43650, option 1.5m cable connetion
Pressure interface	G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request)
Material of pressure membrane	316L stainless steel
Material of housing	1Cr18Ni9Ti stainless steel
Response time(10%~90%)	≤10ms
Shock/impact	10gRMS,(20~2000)Hz/100g,11ms
Protection	IP65

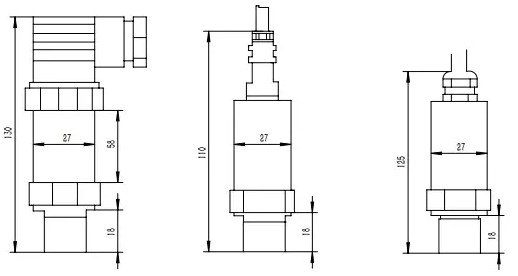

Dimension 4-20ma absolute gauge smart water pressure transmitter sensor

Application 4-20ma absolute gauge smart water pressure transmitter sensor

Absolute gauge smart pressure transmitter is widely used in a variety of industrial automation environment, involving water conservancy and hydropower, railway transportation, intelligent building, production control, aerospace, military, petrochemical, oil wells, electricity, ships, machine tools, pipes and many other industries.

Selection Guide 4-20ma absolute gauge smart water pressure transmitter sensor

Model YD31
	Pressure Range (0-X)KPa or MPa: -100kPa~0.....10kPa...100MPa
		Pressure type G Gauge D Differential A Absolute
			Output signal E 4-20mA F 0-5Vdc J 1-5Vdc K 0-10Vdc V 1-10Vdc
				Power Supply A1 10~36VDC
					Electrical Interface B1 Hirschman connector B2 Directly cable connection B3 Pin aviation connector
						Display D1 No display D2 LED display
							Pressure Interface C1 1/2NPTM C2 1/4NPTM C3 M20x1.5M C4 G1/2M C5 G1/4M Cx other customized
