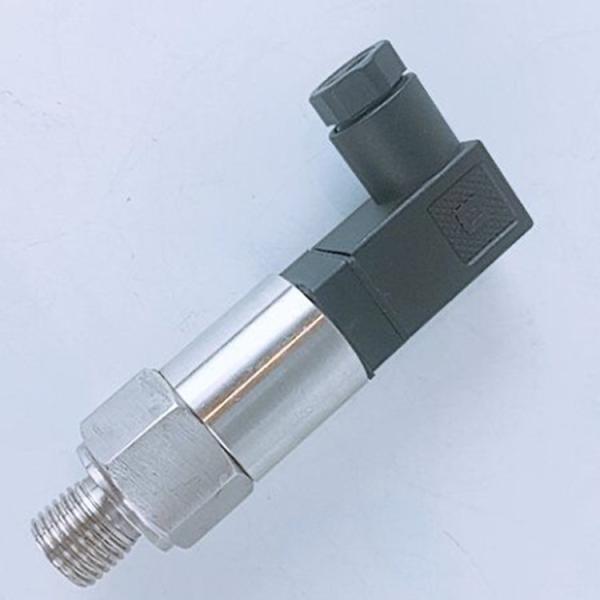

Low g1/4 mini analog smart water pressure sensor transducer
transmitters price for pump
Description Low g1/4 mini analog smart water pressure sensor transducer
transmitters price for pump
The YD series pressure transmitters are meticulously designed to
cater to a wide range of industrial pressure measurement
applications. Their compact and robust construction enables their
utilization in diverse settings such as hydraulics, pneumatics,
vacuum systems, test equipment, liquid level measurement, press
control, compressor control, pump protection, and various other
processing and control operations. These transmitters offer
extensive options for electrical and process connections, ensuring
compatibility with nearly any requirement.
These transmitters employ advanced MEMS micro machining components,
and their fully sealed structure provides excellent protection,
allowing them to adapt seamlessly to various working conditions.
The compact case is crafted from stainless steel, offering
durability, and can achieve environmental protection ratings as
high as IP 65.
Each instrument undergoes rigorous quality control testing and
calibration processes to deliver high levels of accuracy.
Furthermore, individual temperature compensation is applied to
ensure precision and long-term stability even in the face of
significant fluctuations in ambient temperatures. Manufactured on a
fully automated production line, these transmitters are capable of
meeting the demand for large quantities while maintaining
consistent quality and competitive pricing.
For customers with specific requirements in substantial quantities,
custom modifications are available, offering tailored solutions.
In summary, the YD series pressure transmitters are engineered with
precision to suit a multitude of industrial pressure measurement
applications. Their compact and rugged design, along with a wide
range of connection options, make them versatile for deployment in
various industries. With their utilization of cutting-edge
technology, such as MEMS micro machining, and the implementation of
quality control measures, these transmitters provide accurate and
stable performance. Additionally, their availability for custom
modifications caters to customers with large quantity requirements.
Parameter Low g1/4 mini analog smart water pressure sensor transducer
transmitters price for pump
| Pressure range | 0~ -1bar | 1bar | 2bar | 5bar | 10bar | 16bar | 20bar | 25bar | 30bar |
| Maximum pressure* | 2bar | 2bar | 4bar | 10bar | 20bar | 32bar | 40bar | 50bar | 60bar |
| Burst pressure** | 4bar | 4bar | 8bar | 20bar | 40bar | 64bar | 80bar | 100bar | 120bar |
| Pressure range | 40bar | 50bar | 60bar | | | | | | |
| Maximum pressure* | 80bar | 100bar | 120bar | | | | | | |
| Burst pressure** | 160bar | 200bar | 240bar | | | | | | |
| *Pressure applied up to the maximum rating will cause no permanent
change in specifications but may lead to zero and span shifts |
| **Exceeding the burst pressure may result in destruction of the
transmitter and possible loss of media |
| Materials | Gas or liquid compatible with ceramic |
| O-ring | NBR (FKM or EPDM) |
| Signal output | 0.5-4.5V / 1-5V / 0-5V , 3-wire; 0-10V, 3-wire; 4-20mA, 2-wire; |
| Power supply | 5V with signal output 0.5-4.5V / 1-5V / 0-5V, 12...32V with signal
output 0...10V, 9...32V with signal output 4...20mA |
| Response time (10 ... 90 %) | ≤2ms |
| Isolation voltage | DC 500V |
| Accuracy | ≤ 1 % F.S @25℃ (Includes linearity, hysteresis and repeatability.) ≤3% F.S@ {-40~125℃} (limit point calibration) |
| 1-year stability | ≤ 0.05 % F.S |
| Permissible temperature of |
| Medium | -20...+125℃ |
| Ambient | -40...+100℃ |
| Storage | -40...+100℃ |
| Compensated temperature range | -20...125℃ |
| Mean TC of zero | typical:0.03%F.S/℃； maximal:0.05%F.S/℃ |
| Mean TC of range | typical:0.03%F.S/℃； maximal:0.1%F.S/℃ |
| CE - conformity |
| Test Standard | EN 55022:2010/AC:2011 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55024:2010 |
| EMC directive | 2014/30/EU |
| Shock resistance | 1000g according to IEC 60068-2-27 (mechanical shock) |
| Vibration resistance | 20g according to IEC 60068-2-6 (vibration under resonance) |
| Wiring protection | Protected against reverse polarity, overvoltage and short circuit |
| Weight | 70g |
| Connection | G1/4 (NPT1/4, G1/4 and others available) |
| Features | |
|---|
| Small size | Easy installation |
| Stainless steel case | Sturdy and durable |
| Wide temperature range | -40~125℃ |
| Durable thin film sensor technology | |
| Pressure ranges | -1 bar to 60 bar |
| Output Options | 0.5-4.5V, 1-5V, 0-5V ratiometric |
| 0-10V, 4-20mA, others available |
| Highly resistant to pressure spikes | and vibration |
| Applications | |
|---|
| Automobile | Compressor and refrigeration industry |
| Engineering machinery | Pressure control and monitor |
| Energy and water treatment system | Armarium, agricultural machinery |
| Hydraulic and pneumatic control | Iron and steel industry, light industry |
| system | Pump, fitness equipment, household appliances |
| Hydraulics and pneumatics | Liquid level measurement |
Ordering Information Low g1/4 mini analog smart water pressure sensor transducer
transmitters price for pump
| Model | YD35 |
| Range | K:0~X kPa P: PSI, K: kPa, B: bar, M:MPa, m: mH2O |
| | Accuracy | 1: 1%FS; 2: 0.5%FS; 3: 0.25%FS; |
| | | Output | M:mV, V1:0.5-4.5V; V2:0-5V; V3:0-10V; A:4-20mA; S:RS485 S0:others |
| | | | Power | P1:5VDC, P2:12-32VDC P0: other |
| | | | | Connection | N1: NPT1/8; N2: NPT1/4; NPT1/2; G1:G1/8 ; G2:G1/4; G3:G1/2;
M0:other |
| | | | | | |
| | | | | | Wiring | W1:Cable, W2:Horsman W3:Pakard W4:M12 |
| | | | | | | Temperature | T1: -20~125℃; T0:other |
| YD35 | 10b | 2 | A | P2 | M1 | W2 | T1 | | | Factory code |
