0.5-4.5V I2C 10bar Packard Oil Pressure Sensor Smart Water Ceramic Pressure Sensor

Description of 0.5-4.5V I2C 10bar Packard Oil Pressure Sensor Smart Water Ceramic Pressure Sensor

0.5-4.5V I2C 10bar Packard Oil Pressure Sensor Smart Water Ceramic Pressure Sensor is an economical pressure sensor. It adopts compact structure and digital circuit design, which makes the appearance smaller, the installation is more convenient, and the electrical compatibility is better.
The sensor is suitable for large quantities of water pumps, air compressors and other industries. It has strong media compatibility (applicable to oil, sewage, steam and other media), anti-interference and impact resistance. The shell of the product is made of stainless steel, and the general joints such as R1/4 and ZG1/4 are always available to ensure the air tightness and durability of the product.

Specification of 0.5-4.5V I2C 10bar Packard Oil Pressure Sensor Smart Water Ceramic Pressure Sensor

Range: 0～1MPa 0～1.6MPa
Overload pressure: 200%
Accuracy class: (%FS) 0.5
Long-term stability: (%FS/year) 0.2 (typ.)
Supply voltage: (VDC) 12～36 (typ. 24)
Output signal: (mA) 4 -20 (two-wire system)
Operating temperature: (℃) -20～80
Storage temperature: (℃) -40～100
Compensation temperature: (℃) -20～80
Response time :(ms) ≤1
Dielectric Strength:(VDC) 500
Short circuit protection: yes
Reverse Polarity Protection: Yes
Pressure port: M20*1.5 G1/4
Sealing performance: IP65
Outlet way: straight out 2 meters

Features of 0.5-4.5V I2C 10bar Packard Oil Pressure Sensor Smart Water Ceramic Pressure Sensor

Ceramic flat membrane structure
Parkard connector, high reliability
Advanced anti-jamming and insulation properties
Anti-shock, anti-overload, anti-vibration
Waterproof and anti-leakage

Application of 0.5-4.5V I2C 10bar Packard Oil Pressure Sensor Smart Water Ceramic Pressure Sensor

water pump
air compressor
construction machinery
Pneumatic and hydraulic systems

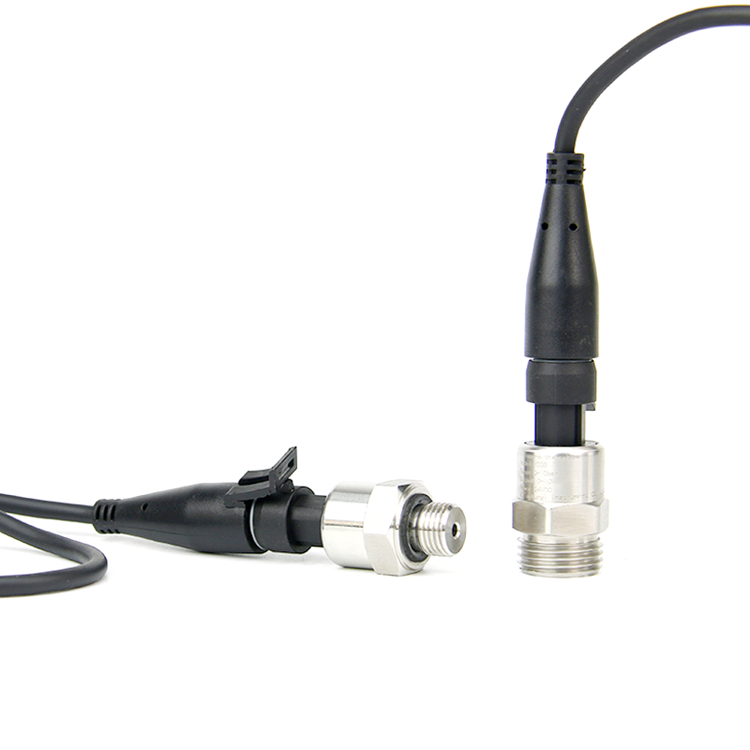

Picture of 0.5-4.5V I2C 10bar Packard Oil Pressure Sensor Smart Water Ceramic Pressure Sensor
