IP65 Stainless Steel Hydraulic Smart Water Pressure Sensor

Ask Lasest Price
Brand Name :	YUNYI
Model Number :	YD35
Certification :	CE
Price :	10~31$/pc
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :	10000pcs / month
Delivery Time :	1~10 working days

Add to Cart

Product Details
Company Profile

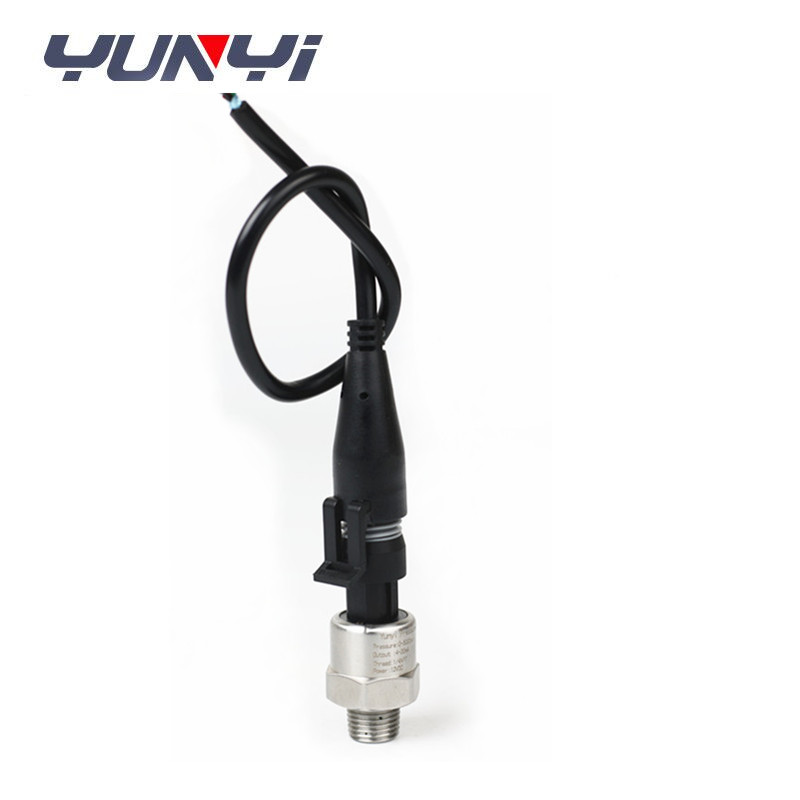

IP65 Stainless Steel Hydraulic Smart Water Pressure Sensor

Smart Water Pressure Sensor mini type YD 35 Series for Hydraulics and pneumatics

The YD 35 Series Smart Water Pressure Sensor is a mini-sized sensor specifically designed for applications in hydraulics, pneumatics, automobile, compressor, refrigeration, energy and water treatment systems, iron and steel industry, light industry, pumps, fitness equipment, and household appliances.

This sensor utilizes MEMS micro machining components, allowing it to adapt to a wide range of working conditions. Its compact case is constructed from stainless steel and offers environmental protection ratings of up to IP 65. With its versatility and robust design, the YD 35 Series Smart Water Pressure Sensor is ideal for pressure control and monitoring in various industries.

Materials	Gas or liquid compatible with ceramic
O-ring	NBR (FKM or EPDM)
Signal output	0.5-4.5V / 1-5V / 0-5V , 3-wire; 0-10V, 3-wire; 4-20mA, 2-wire;
Power supply	5V with signal output 0.5-4.5V / 1-5V / 0-5V, 12...32V with signal output 0...10V, 9...32V with signal output 4...20mA
Response time (10 ... 90 %)	≤2ms
Isolation voltage	DC 500V
Accuracy	≤ 1 % F.S @25℃ (Includes linearity, hysteresis and repeatability.) ≤3% F.S@ {-40~125℃} (limit point calibration)
1-year stability	≤ 0.05 % F.S
Permissible temperature of
Medium	-20...+125℃
Ambient	-40...+100℃
Storage	-40...+100℃
Compensated temperature range	-20...125℃
CE - conformity
Test Standard	EN 55022:2010/AC:2011 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55024:2010
EMC directive	2014/30/EU
Weight	70g
Connection	G1/4 (NPT1/4, G1/4 and others available)
