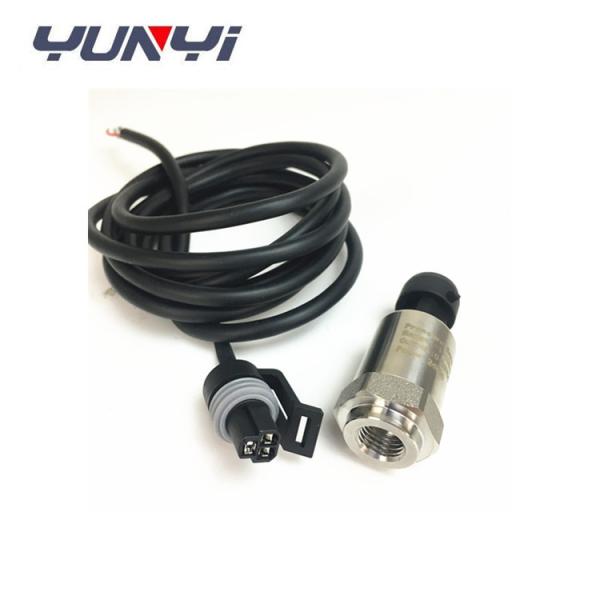

Water pump mini small oil pressure sensor transmitter transducer
Description Water pump mini small oil pressure sensor transmitter
transducer
oil pressure sensor transmitter are precision engineered to fit
most industrial pressure measurement applications. The compact,
rugged design makes these instruments suitable for applications
including hydraulics and pneumatics, vacuum, test equipment, liquid
level measurement, press control, compressor control, pump
protection and numerous other processing and control operations. A wide range of electrical
connection and process connection options are avail-able to meet almost any requirement.
Specification Water pump mini small oil pressure sensor transmitter transducer
| Materials | Gas or liquid compatible with ceramic |
| O-ring | NBR (FKM or EPDM) |
| Signal output | 0.5-4.5V / 1-5V / 0-5V , 3-wire; 0-10V, 3-wire; 4-20mA, 2-wire; |
| Power supply | 5V with signal output 0.5-4.5V / 1-5V / 0-5V, 12...32V with signal
output 0...10V, 9...32V with signal output 4...20mA |
| Response time (10 ... 90 %) | ≤2ms |
| Isolation voltage | DC 500V |
| Accuracy | ≤ 1 % F.S @25℃ (Includes linearity, hysteresis and repeatability.) ≤3% F.S@ {-40~125℃} (limit point calibration) |
| 1-year stability | ≤ 0.05 % F.S |
| Permissible temperature of |
| Medium | -20...+125℃ |
| Ambient | -40...+100℃ |
| Storage | -40...+100℃ |
| Compensated temperature range | -20...125℃ |
| Mean TC of zero | typical:0.03%F.S/℃; maximal:0.05%F.S/℃ |
| Mean TC of range | typical:0.03%F.S/℃; maximal:0.1%F.S/℃ |
| CE - conformity |
| Test Standard | EN 55022:2010/AC:2011 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55024:2010 |
| EMC directive | 2014/30/EU |
| Shock resistance | 1000g according to IEC 60068-2-27 (mechanical shock) |
| Vibration resistance | 20g according to IEC 60068-2-6 (vibration under resonance) |
| Wiring protection | Protected against reverse polarity, overvoltage and short circuit |
| Weight | 70g |
| Connection | G1/4 (NPT1/4, G1/4 and others available) |
Features Water pump mini small oil pressure sensor transmitter
transducer
1. Small size easy installation
2. Stainless steel case sturdy and durable
3. Wide temperature range:-40~125℃
4. Durable thin film sensor technology
5. Pressure ranges from -1 bar to 60bar
6. 0.5-4.5V ,1-5V ,0-5V ratiometric outputs
7. 0-10V, 4-20 mA , others available
8. Highly resistant to pressure spikes and vibration
