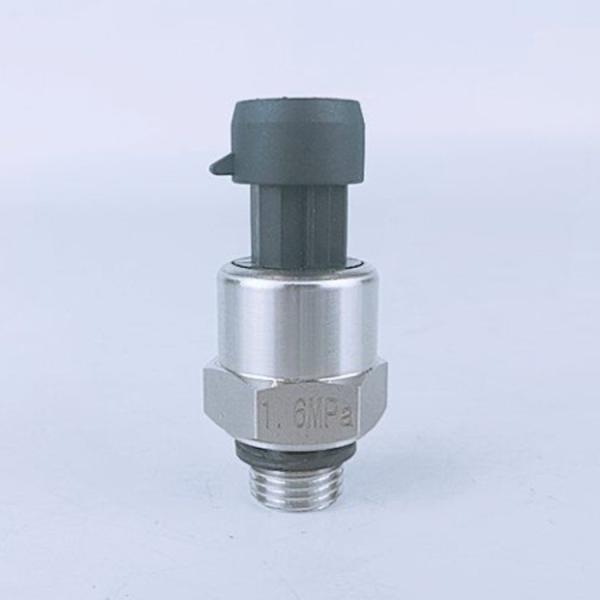

oem low cost mini types of compact psi 5V npt oil pressure sensor
Description oem low cost mini types of compact psi 5V npt oil
pressure sensor
Oil pressure sensor is the most commonly used pressure transmitter
in industrial practice. It is widely used in various industrial
automation environments, involving petroleum pipelines, water
conservancy and hydropower, railway transportation, intelligent
buildings, production automation, aerospace, military,
petrochemicals , Oil wells, electric power, ships, machine tools,
pipeline air supply, boiler negative pressure and many other
industries. Features: Easy installation and long life.
Parameter oem low cost mini types of compact psi 5V npt oil
pressure sensor
| Pressure range | 0~ -1bar | 1bar | 2bar | 5bar | 10bar | 16bar | 20bar | 25bar | 30bar |
| Maximum pressure* | 2bar | 2bar | 4bar | 10bar | 20bar | 32bar | 40bar | 50bar | 60bar |
| Burst pressure** | 4bar | 4bar | 8bar | 20bar | 40bar | 64bar | 80bar | 100bar | 120bar |
| Pressure range | 40bar | 50bar | 60bar | | | | | | |
| Maximum pressure* | 80bar | 100bar | 120bar | | | | | | |
| Burst pressure** | 160bar | 200bar | 240bar | | | | | | |
| *Pressure applied up to the maximum rating will cause no permanent
change in specifications but may lead to zero and span shifts |
| **Exceeding the burst pressure may result in destruction of the
transmitter and possible loss of media |
| Materials | Gas or liquid compatible with ceramic |
| O-ring | NBR (FKM or EPDM) |
| Signal output | 0.5-4.5V / 1-5V / 0-5V , 3-wire; 0-10V, 3-wire; 4-20mA, 2-wire; |
| Power supply | 5V with signal output 0.5-4.5V / 1-5V / 0-5V, 12...32V with signal
output 0...10V,
9...32V with signal output 4...20mA |
| Response time (10 ... 90 %) | ≤2ms |
| Isolation voltage | DC 500V |
| Accuracy | ≤ 1 % F.S @25℃ (Includes linearity, hysteresis and repeatability.)
≤3% F.S@ {-40~125℃} (limit point calibration) |
| 1-year stability | ≤ 0.05 % F.S |
| Permissible temperature of |
| Medium | -20...+125℃ |
| Ambient | -40...+100℃ |
| Storage | -40...+100℃ |
| Compensated temperature range | -20...125℃ |
| Mean TC of zero | typical:0.03%F.S/℃；
maximal:0.05%F.S/℃ |
| Mean TC of range | typical:0.03%F.S/℃；
maximal:0.1%F.S/℃ |
| CE - conformity |
| Test Standard | EN 55022:2010/AC:2011 EN 61000-3-2:2014
EN 61000-3-3:2013
EN 55024:2010 |
| EMC directive | 2014/30/EU |
| Shock resistance | 1000g according to IEC 60068-2-27 (mechanical shock) |
| Vibration resistance | 20g according to IEC 60068-2-6 (vibration under resonance) |
| Wiring protection | Protected against reverse polarity, overvoltage and short circuit |
| Weight | 70g |
| Connection | G1/4 (NPT1/4, G1/4 and others available) |
Features oem low cost mini types of compact psi 5V npt oil pressure
sensor
Compact,rugged design,light weight
Low-cost,high- quality
Large temperature high accuracy
Over voltage,short circuit,anti-reverse protection
Water proof and dustproof electrical connectors
Applications oem low cost mini types of compact psi 5V npt oil
pressure sensor
Air compressor,sprayer,water pump controller,water heaters,water
supply system,hydraulic system
Ordering Information oem low cost mini types of compact psi 5V npt oil
pressure sensor
| Model | YD35 |
| Range | K:0~X kPa P: PSI, K: kPa, B: bar, M:MPa, m: mH2O |
| | Accuracy | 1: 1%FS; 2: 0.5%FS; 3: 0.25%FS; |
| | | Output | M:mV, V1:0.5-4.5V; V2:0-5V; V3:0-10V; A:4-20mA; S:RS485 S0:others |
| | | | Power | P1:5VDC, P2:12-32VDC P0: other |
| | | | | Connection | N1: NPT1/8; N2: NPT1/4; NPT1/2; G1:G1/8 ; G2:G1/4; G3:G1/2;
M0:other |
| | | | | | |
| | | | | | Wiring | W1:Cable, W2:Horsman W3:Pakard W4:M12 |
| | | | | | | Temperature | T1: -20~125℃; T0:other |
| YD35 | 10b | 2 | A | P2 | M1 | W2 | T1 | | | Factory code |
