4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas water oil
Pressure Sensor
Description of 4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas
water oil Pressure Sensor
4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas water oil
Pressure Sensor uses a high-performance silicon piezoresistive
pressure oil-filled core. The internal dedicated integrated circuit
converts the sensor millivolt signal into a standard voltage,
current or frequency signal, 4-20mA Liquid Generator Oil Hydraulic
Oil Steam Gas water oil Pressure Sensor can be directly connected
to the computer interface card, control instrument, and smart
instrument. Or PLC, etc. for easy connection. Long-distance
transmission can use current output mode. It has a small size,
light weight, and all-stainless steel sealed structure, which can
work in corrosive environments. 4-20mA Liquid Generator Oil
Hydraulic Oil Steam Gas water oil Pressure Sensor is easy to
install and simple, with very good vibration and impact resistance.
Parameter of 4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas
water oil Pressure Sensor
Measuring medium:air or liquid
Material:316L(Diaphragm)
Pressure range:-100kpa'0'100MPA
Out signal:4-20ma ,0-5vdc,0-10vdc,1-5vdc,RS485
Accuracy:0.1%fs,0.25%fs
Enclosure class:IP65
Meadium Tem:-40-85℃
work temperature:-40-85℃
Power supply:9-36VDC
| Range | selectable between -0.1-30MPa |
| Accuracy | 0.5% FS, 1.0% FS, 2.0% FS |
| Output signal | 4-20mA, 0 / 1-5 / 10V, 0.5-4.5V |
| Supply voltage | + 5VDC, + 12VDC, + 24VDC |
| Process connection | 7 / 16-20UNF, G1 / 4, G1 / 8 (can be customized) |
| Electrical connection | three-pin plug directly lead |
| Load capacity | current-≤500Ω |
| Compensation temperature | 0-85 ° C |
| Operating temperature | -20-125 ° C |
| Safety overload | 150% |
| Ultimate Overload | 200% |
| Temperature drift | 0.02% FS / ° C |
| Long-term stability | 0.2% FS / Year |
Feature of 4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas
water oil Pressure Sensor
Wide measuring range
All stainless steel core and 304 stainless steel housing
Obtained CE certification and explosion-proof certification
Adjustable on site
Can be displayed
Application of 4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas
water oil Pressure Sensor

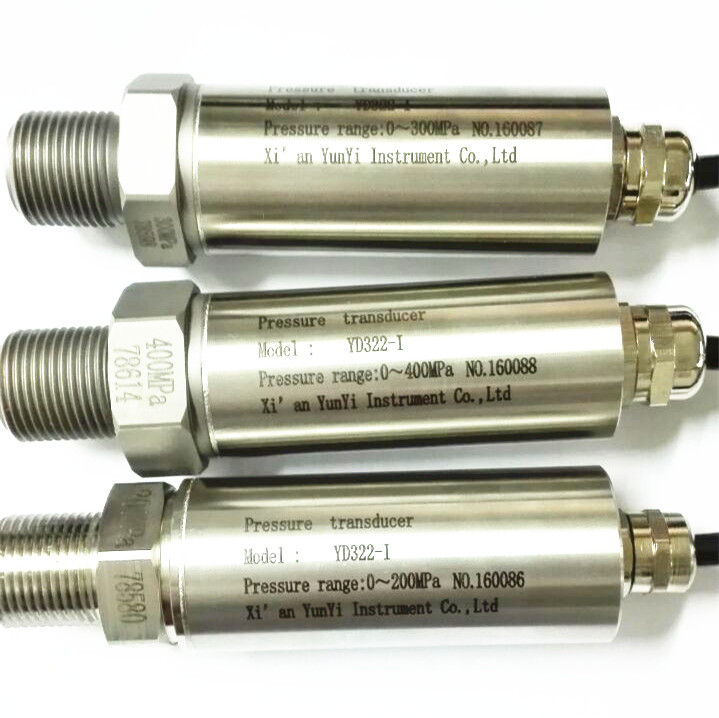

Detailed picture 4-20mA Liquid Generator Oil Hydraulic Oil Steam
Gas water oil Pressure Sensor
