0.5-4.5V 10bar Packard Oil Pressure Sensor Water Pressure Sensor
Water Pressure Sensor
Description of 0.5-4.5V 10bar Packard Oil Pressure Sensor Water
Pressure Sensor Water Pressure Sensor
0.5-4.5V 10bar Packard Oil Pressure Sensor Water Pressure Sensor
Water Pressure Sensor provide a variety of accuracy indicators and
connection methods. The internal circuit has excellent
anti-interference performance, and the stainless steel structure
guarantees its sturdiness and durability. It can be used in various
environments and climates, so it is widely used in various fields.
In addition, we can provide different pressure units and process
connections that meet the requirements of the customer's
application in a short time.
Parameter of 0.5-4.5V 10bar Packard Oil Pressure Sensor Water
Pressure Sensor Water Pressure Sensor
| Range | selectable between -0.1-30MPa |
| Accuracy | 0.5% FS, 1.0% FS, 2.0% FS |
| Output signal | 4-20mA, 0 / 1-5 / 10V, 0.5-4.5V |
| Supply voltage | + 5VDC, + 12VDC, + 24VDC |
| Process connection | 7 / 16-20UNF, G1 / 4, G1 / 8 (can be customized) |
| Electrical connection | three-pin plug directly lead |
| Load capacity | current-≤500Ω |
| Compensation temperature | 0-85 ° C |
| Operating temperature | -20-125 ° C |
| Safety overload | 150% |
| Ultimate Overload | 200% |
| Temperature drift | 0.02% FS / ° C |
| Long-term stability | 0.2% FS / Year |
Feature of 0.5-4.5V 10bar Packard Oil Pressure Sensor Water
Pressure Sensor Water Pressure Sensor
Imported dry ceramic piezoresistive sensor, wide application range
Using ASIC technology, digital compensation
Linearity is better than 0.2% FS
The ceramic diaphragm is corrosion resistant and can be in direct
contact with most media
low price
Suitable for industrial OEM equipment
Application of 0.5-4.5V 10bar Packard Oil Pressure Sensor Water
Pressure Sensor Water Pressure Sensor
Measurement of fluid pressure in measurement and control equipment
in industries such as fire fighting, petrochemical, metallurgy,
electric power, papermaking, medicine, environmental protection,
water treatment, building materials, cement, etc.
It adopts imported ceramic pressure core body, which has the
characteristics of anti-corrosion, good long-term stability and
wide application range. It is especially suitable for pressure and
liquid level measurement of water treatment equipment, medical
water equipment, and fire-fighting pipe network.

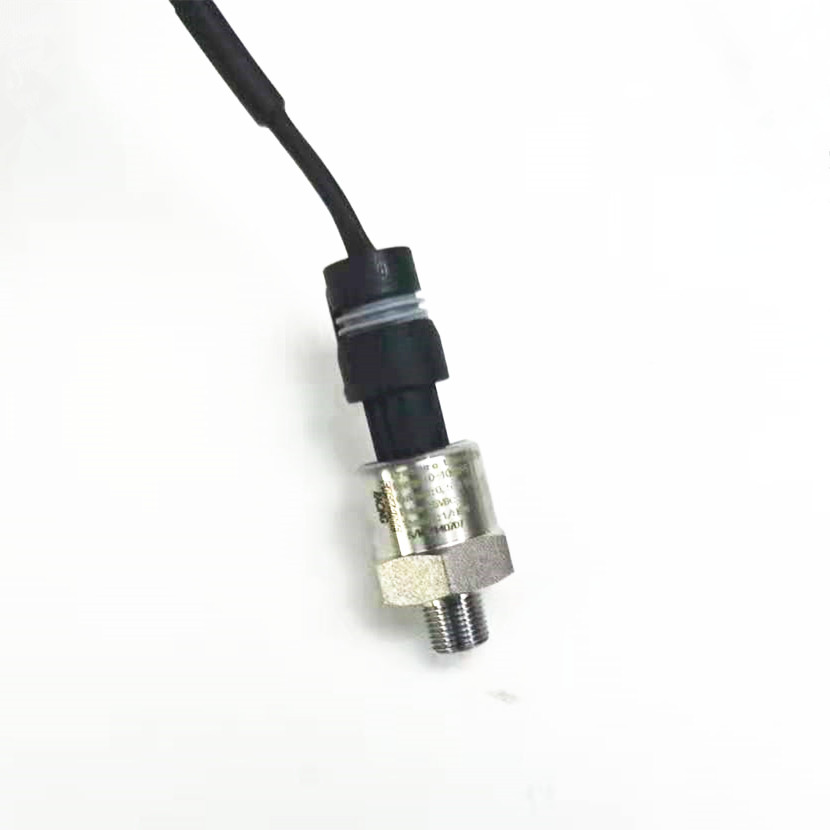

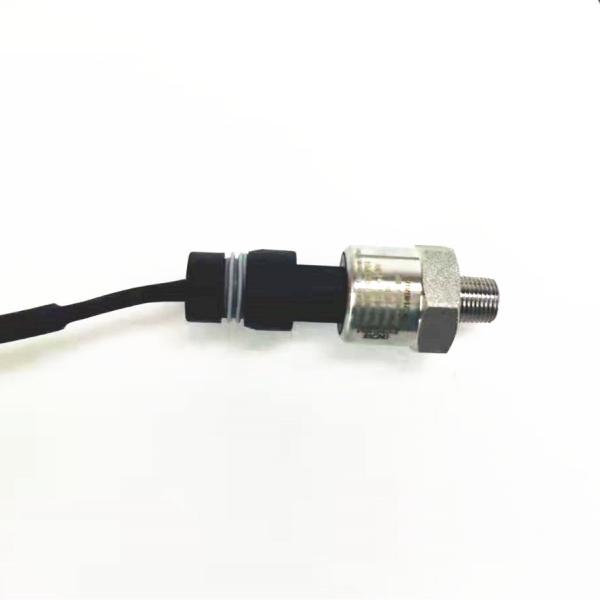

Detailed picture 0.5-4.5V 10bar Packard Oil Pressure Sensor Water
Pressure Sensor Water Pressure Sensor
