Parameter M195 M295 M395 usb hart modem dc24v wireless Communicator
Detailed Images M195 M295 M395 usb hart modem dc24v wireless Communicator
Specification M195 M295 M395 usb hart modem dc24v wireless Communicator
Standard
| China GB/T 29910.1~6-2013
IEC-62591/IEC-61158/IEC-61804 |
| Wireless | BLE 4.0, Distance 10 meters |
| Output Voltage | Voltage 21.6V,Max Current 45mA |
| Battery Capacity | 2000mAh Lithium Polymer Battery |
| Battery Life | Power Transmitter with Use i595.
Loop Current 4mA:8 hours
Loop Current 21mA:4 hours
Not Output Power:16 hours
|
| Charging Time | 1A Current ,240 Minutes
|
Interface Protection
| IEC 61000-4-2,L4(15KV Air Discharge)
HART interface 1.5KV isolation
|
| Dimensions | 92mm x 70mm x 24mm (L x W x H) |
| Weight | 150g |
| Operating Temp. | -20 °C ~ +50 °C |
| Environment Humi. | 0 % ~ 95 %,No condensation |
Supported transmitter list M195 M295 M395 usb hart modem built-in
dc24v hart communication
Vendor
| Model |
| Rosemount | 3051CD,3051CG,3051DP,3051GP,3051TG,3051S,8600D,8800D,8732E,2088,248,3144,Vortex,8732C,
644 |
Micro Motion
| 1700,2700 |
| E+H | Promag 10D/10H10L10P/10W. 50D/50H/50L/50P/50W
Promass 40E/80A/80E/80F/80H/80I/80P/80S
Prowirl 72F/72W. t-mass 65I/65F.
Prosonic Flow 91W/93W.PMD 55/70/75, FMD 76/77/78,
TMT 182, FMR 240, FMR 25x, FMU 40, FEC 12.
TMT72,TMT82 |
| ABB/Siemens/Wika | 2600T/TTX200/TTX300/ TH300/T32H |
| Yokogawa | DY Series,SE Series,EJA110A,EJA110E,EJA530 |
Fuji
| FCX-A2 FCX-A3S
|
Fisher
| DVC6000/DVC6200/DVC2000
|
| Others | Zhongrui, Huakong, Shanwu, Zhejiang University Control, Lamb LABOM,
Shengtaike, Chuanyi, Delson, Rodinson, Lige, Willtech, Shangrun,
Wise, etc. |
Package M195 M295 M395 usb hart modem dc24v wireless Communicator
M195: host + manual + alligator clip + tool bag
M295:host + manual + alligator clip + tool bag + OTG head (type-c
and micro each 1)
M395: bluetoo-th host + manual + crocodile clip + tool bag +
charging cable (without charging hea
Features M195 M295 M395 usb hart modem dc24v wireless Communicator
Android APP + hardware
Android APP debugging, the adapter is more wireless (now fully
upgraded to low-power bluetoo-th BLE, compared to the original WiFi
wireless technology, BLE distance is farther, and the use time has
increased several times)
The instrument DD library closest to Emerson 475
Woya has been devoting itself to research and development for many
years, accumulating the most complete DD library in the country,
and continuously upgrading, easily debugging transmitters and
valves, replacing imported 475
Remote debugging
Remotely debug remote transmitters without leaving home
Proven software and hardware design
Reliable and safe 24V output design, wiring error will not damage
Unique HART signal enhancement technology, can still maintain
communication when the loop impedance is far below 250Ω
rofessional interference filtering technology, effectively improve
the signal-to-noise ratio, calmly deal with complex on-site
environment
Professional technical support
The team has many years of experience in instrument software and
hardware development, commissioning and testing
Download Link M195 M295 M395 usb hart modem dc24v wireless Communicator
1) Android app http://hart.woyatech.com, open it with a mobile
browser. (The Android market has not been updated, please do not
download from the Android market)
2) Wiring instructions
http://doc.woyatech.com/modem/cn/00_modem_cn.pdf
3) PC driver
http://doc.woyatech.com/modem/cn/01_drivers/modem_drivers.exe
4) HART tool
http://doc.woyatech.com/modem/cn/02_hart_tools/02_hart_software.zip
5) More software http://doc.woyatech.com/modem/cn/
We provide software downloads including Rosemount 475, E + H
Fieldcare, Yokogawa Fieldmate, Cologne Pactware, Siemens PDM, etc.
For the software address and decompression password, please contact
us.

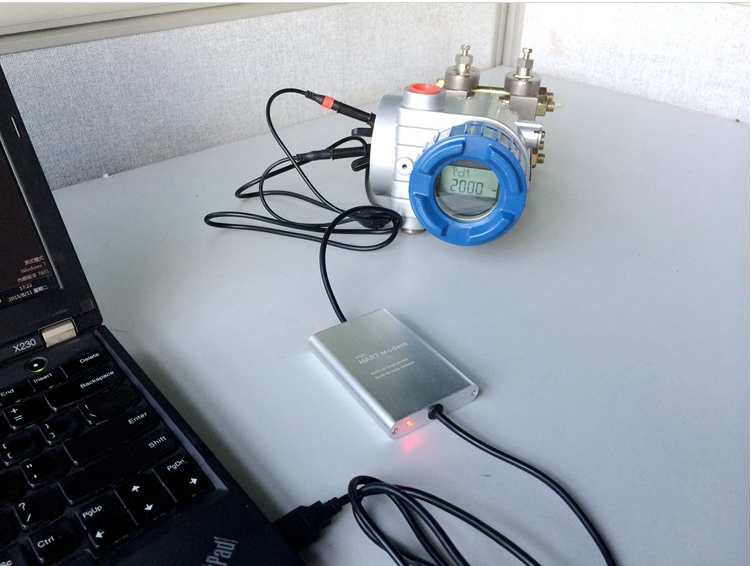

Application Link M195 M295 M395 usb hart modem dc24v wireless Communicator
