Digital microwave radar level meter low price guided wave radar
level transmitter
Description of Digital microwave radar level meter low price guided
wave radar level transmitter
The wave radar level gauge can emit high-frequency microwaves and
propagate along the probe rod. When encountering the measured
medium, the dielectric constant changes abruptly, causing
reflections. The time interval between the transmitted pulse and
the reflected pulse of the guided wave radar level gauge is
proportional to the distance of the measured medium. At the same
time, the guided wave radar level gauge can also measure the
interface of two different media, making full use of the difference
in the dielectric constant of the media. However, the measurement
condition is that the upper layer medium is non-conductive, or its
dielectric constant is more than 10 times smaller than that of the
lower layer medium. The working mode of pulse can measure medium
with small dielectric constant, and it is safe for use in various
metal and non-metal containers, without harm to human body and
environment. Can measure solid material level, liquid level, liquid
interface
Specification of Digital microwave radar level meter low price
guided wave radar level transmitter
Working frequency: 100MHZ~1.8GHz
Measuring range: 0~30m for cable probe;
Repeatability: ±2mm
Resolution: 1mm
Sample: echo sampling 55 times /s
Responding time: >0.2s ( depends on the application)
Current signal output: 4~20mA
Accuracy: ±3mm
Communication: HART protocol
Process connection: Thread, G1〞A or G1½〞A.
Flange, DN50, DN80, DN100, DN150, DN200, DN250
Process pressure: -0.1~2MPa
Power supply: 24V DC (+/-10%), ripple voltage: 1Vpp
Power consumption: Max.22.5mA
Ambient temperature: -40℃~+70℃
Explosion proof approval: Ex ia IIC T6 Ga
Enclosure protection grade: IP67
2-wire connection: input and signal output share one 2-wire
shielded cable.
Cable entry: M20*1.5 * 2 or ½”NPT*2 (cable diameter is 5~9mm)
Feature of Digital microwave radar level meter low price guided
wave radar level transmitter
1. Any medium with a dielectric constant greater than or equal to
1.4 can be measured.
2. Generally used to measure the medium with viscosity ≤500cst and
not easy to produce adhesion.
3. The maximum range of the rod radar can reach 6 meters.
4. It has a strong inhibitory ability to steam and foam, and the
measurement is not affected.
5. For liquid materials with relatively small dielectric constant,
the double-probe measurement method can be used to ensure good and
accurate measurement accuracy.
Application of Digital microwave radar level meter low price guided
wave radar level transmitter
Guided wave radar level gauge | radar level gauge | radar level
gauge, used to measure water, sewage, diesel, gasoline, toluene,
acetone, liquid alkali and other liquids, used in electric power,
chemical industry, plastics, food, machinery, metallurgy , mining
and other industries. Block and granular solids can also be
measured, such as: lime powder, fly ash, cement, slag, slag, coal,
ore, corn, wheat, glass, plastic particles, etc.

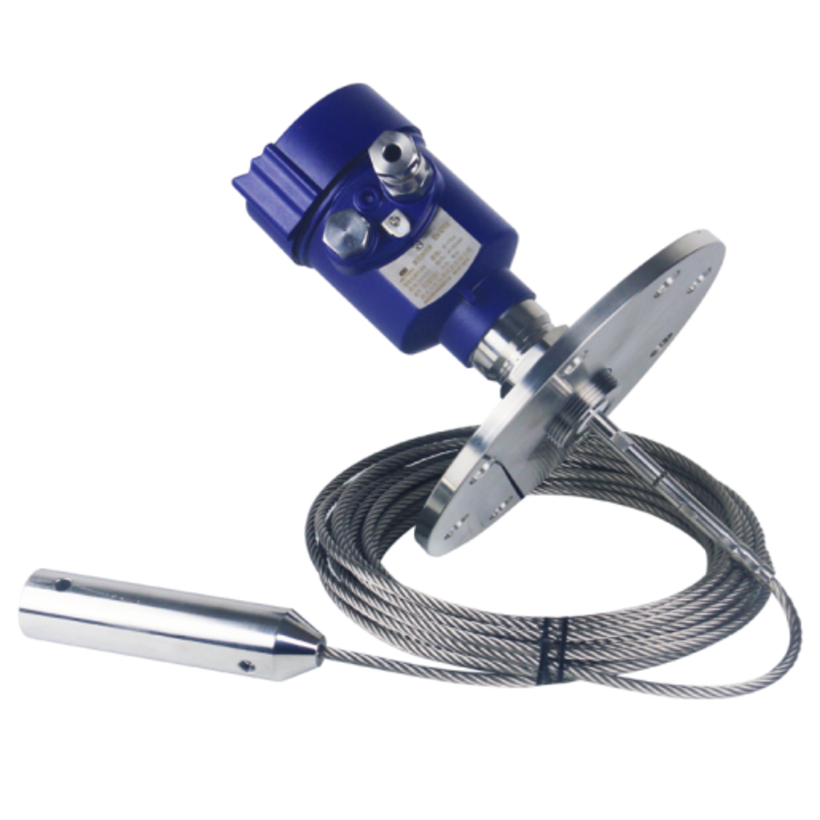

Detaild picture of Digital microwave radar level meter low price
guided wave radar level transmitter
