High Precision high frequency Radar Water Level Sensor Water Level
Transmitter
Description of High Precision high frequency Radar Water Level
Sensor Water Level Transmitter
The intelligent radar level gauge transmits and receives very short
microwaves with very low power through the antenna system. Radar
waves travel at the speed of light. The operating time can be
converted into a level signal by means of electronic components. A
special time extension method ensures stable and precise
measurements in a very short period of time. Even in the presence
of false reflections, the level echoes can be accurately analyzed
by our microprocessor technology and software. By entering the
container size, the overhead distance value can be converted into a
signal proportional to the level. The instrument can be debugged in
empty warehouse. Applications in solids measurement can use K-band
high-frequency sensors. Due to the excellent focusing of the
signal, neither installations in the silo nor adhesions on the silo
walls will affect the measurement.
Specification of High Precision high frequency Radar Water Level
Sensor Water Level Transmitter
2. Measuring range: cable type: 0-35m rod type, coaxial type: 0-6m;
3. Repeatability: ±3mm;
4. Resolution: 1mm;
5. Sampling: echo sampling 54 times/s;
6. Response speed: >0.2S (depending on the specific usage);
7. Accuracy: <0.1%;
8. Output current signal: 4-20mA;
9. Communication interface: HART communication protocol;
10. Process connection: G1-1/2, G3/4 flange: DN50, DN80, DN100,
DN150;
11. Process pressure: -1～60bar;
12. Power supply: 24VDC (±10%) Ripple voltage: 1Vpp;
13. Power consumption: max22.5mA;
14. Environmental conditions: temperature: -40℃～+250℃;
15. Shell protection grade: IP68;
16. Two-wire wiring: the instrument power supply and signal output
share a two-core cable;
17. Cable entry: M20×1.5 (cable diameter 5～9mm).
Feature of High Precision high frequency Radar Water Level Sensor
Water Level Transmitter
1. No blind area, high precision;
2. Two-wire technology is a substitute for differential pressure
instruments, magnetostrictive, radio frequency admittance, and
magnetic flap instruments;
3. Not affected by pressure change, vacuum, temperature change,
inert gas, smoke, steam, etc.;
4. Easy to install, firm and durable, maintenance-free;
5. The output signal is 4mA-20mA/HART protocol, the calibration is
simple, the on-site calibration operation can be easily realized
through the digital liquid crystal display, and the simple
configuration setting and programming can be realized through the
software;
6. The measurement is sensitive and the refresh speed is fast;
7. It is suitable for high temperature working conditions, up to
200 ℃ process temperature, and can reach 350 ℃ when using high
temperature extension antenna.
Application of High Precision high frequency Radar Water Level
Sensor Water Level Transmitter
It is used for non-contact continuous measurement of the level of
liquids, slurries and granular materials. It adopts the measurement
method of microwave pulse (PTOF) and can work normally in the
industrial frequency band. The beam energy is low and can be
installed in various metal and non-metal containers or pipes,
without harm to the human body and the environment.

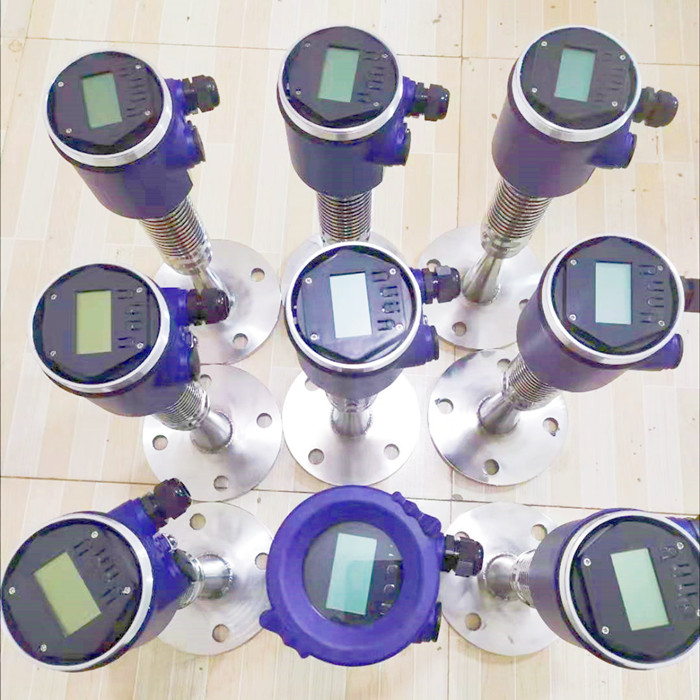

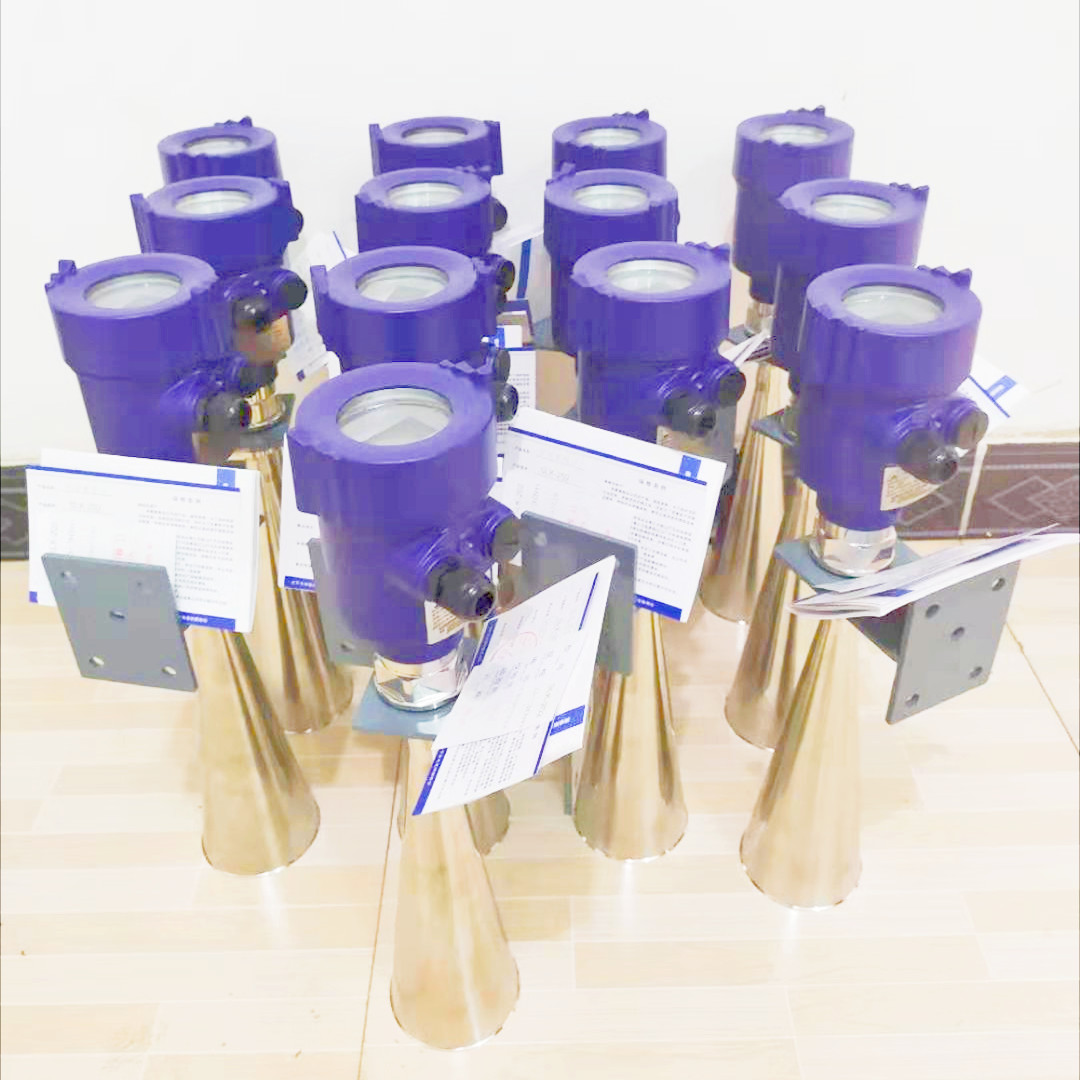

Detaild picture of High Precision high frequency Radar Water Level
