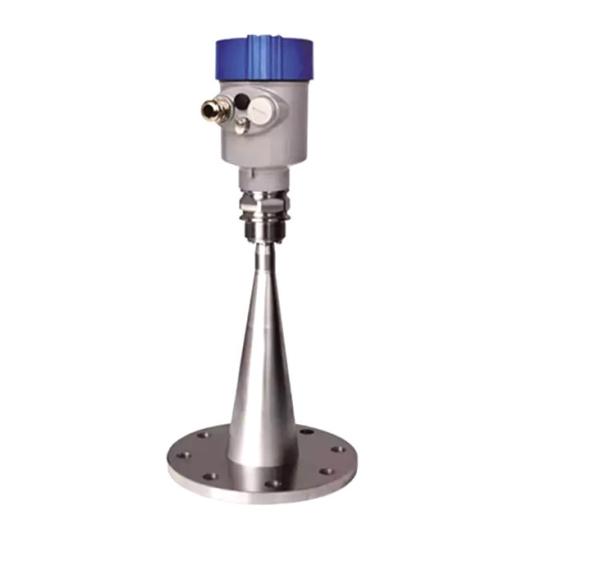

Descriprion High Frequency Radar Level Gauge Radar Water Level
meter Flare
The High Frequency Radar Level Gauge, also known as a Radar Water
Level Meter Flare, is suitable for environments with significant
temperature and pressure variations, as well as the presence of
inert gas, smoke, steam, and volatile substances. It is designed to
operate in hazardous locations and has a robust construction to
withstand corrosive and explosive environments. The 806 radar level
transmitter antenna emits a narrow microwave signal within the
industrial frequency band, with extremely low emission power that
poses no harm to humans or the environment.
The YUNYI-806 radar level transmitter is designed with an
intrinsically safe Ex iaIIC T6 explosion-proof rating, featuring an
aluminum outer casing connected to the earth. It strictly adheres
to national installation regulations for explosion-proof areas.
Moreover, by incorporating components such as air-cooling devices,
water-cooling devices, and purging devices, the working temperature
range can be extended from -40 to 400 degrees Celsius.
Additionally, the pressure sealing components can be adjusted to
extend the pressure range up to 4000 KPa.
Specification High Frequency Radar Level Gauge Radar Water Level meter Flare
Features High Frequency Radar Level Gauge Radar Water Level meter Flare
General-purpose sensor outline drawing: (different models of sensor
heads are the same size)
806A2 radar level transmitter drawing
806A2 Launch angle and measurement accuracy
| Horn size and flange | Launch angle | 1/2 Launch angle tangent value(Tan) |
| Diameter 48 horn DN50 flange | 18° | 0.158 |
| Diameter 75 horn DN80 flange | 12° | 0.105 |
| Diameter 98 horn DN100 flange | 8° | 0.070 |
| Diameter 123 horn DN150 flange | 6° | 0.052 |
The relation of distance and accuracy:
Selection Guide High Frequency Radar Level Gauge Radar Water Level meter Flare
| Model | Meaning | Working condition |
| YUNYI-806A1 | Rod antenna | Corrosive medium |
| YUNYI-806A2 | Horn antenna | High temperature, high pressure, and slightly corrosive liquid |
| YUNYI-806A3 | Universal horn antenna | Strong dust, easy to crystallize and easy to condense condition |
| YUNYI-806A4 | Parabolic antenna | Strong dust, easy to crystallize and easy to condense condition |
| YUNYI-806A5 | Under Flanged horn antenna | Hygienic liquid storage container, strong corrosive container |
806A2
