Liquid Smart Density Meter/Online Vibration Tuning Fork Density
Meter Stainless Steel 316
Description Liquid Smart Density Meter/Online Vibration Tuning Fork Density
Meter Stainless Steel 316

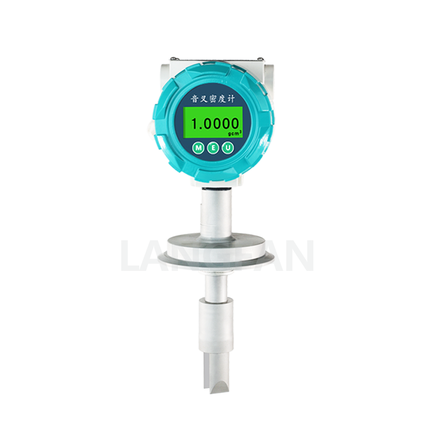

The XY-886 tuning fork density meter is a high-precision, highly
applicable vibration principle density meter produced by
introducing the most advanced frequency tracking technology from
abroad. The product design adopts plug-in installation and is
widely used in pipelines, open tanks and closed containers.
Detection of the density of the medium in the tank.
The tuning fork densitometer sensor is composed of two
piezoelectric crystals. One piezoelectric crystal generates
vibration, and the other piezoelectric crystal detects vibration.
The tuning fork sensor has a built-in temperature sensor to
compensate the vibration of the piezoelectric crystal.
The Technical Features Liquid Smart Density Meter/Online Vibration
Tuning Fork Density Meter Stainless Steel 316
Tuning-fork vibrating densitometer with microprocessor-based
electronic conversion unit integrating signal processing,
calculation and diagnostic functions. In addition to its convincing
measurement accuracy and reliability, it can communicate directly
with the PC through the RS485 interface. Under the ADView software
environment, users can directly perform online node configuration,
fault diagnosis and data logging. While measuring density and
temperature, it can also calculate basic density, °API, Brix,
concentration percentage, mass percentage, volume percentage,
specific gravity and other parameters.
Tuning fork density meter can be directly installed on storage
tanks and pipelines, and its measured fluid viscosity can be as
high as 20,000cP, which is a significant feature that is superior
to other similar products, and it also has a very high
performance-price ratio.
Specification Liquid Smart Density Meter/Online Vibration Tuning Fork Density
Meter Stainless Steel 316
| Measuring range | 0~3 g/cm³ optional |
| Output | 4-20 mA signal (4-wire system) |
| Accuracy | 0.3% (real-time range) or 0.001 g/cm³, whichever is greater. |
| Resolution | 0.0001 g/cm³ |
| Installation method | DN50 DN80 DN100 and threaded installation (threaded installation
with mounting base) |
| Scope of application | -30~120 degrees |
| Maximum working pressure | 20MPa |
| Protection level | IP65 |
| Fork body material | stainless steel 316, Hastelloy C22, manganese alloy 400 |
| Fork body coating | coating (perfect hydrophobicity and non-sticking of impurities in
the liquid) |
