density measuring instrument digital tuning fork density meter
sensor
Description
Tuning fork density meter is a high-precision, high-applicability
vibration principle density meter produced by introducing the most
advanced frequency tracking technology from abroad. The product
design uses plug-in installation and is widely used in pipelines,
open tank containers and closed tank containers Medium density
detection. The tuning fork density meter sensor is composed of two
piezoelectric crystals. One piezoelectric crystal generates
vibration and the other piezoelectric crystal detects vibration.
The tuning fork sensor has a built-in temperature sensor to
compensate the temperature of the piezoelectric crystal.
The split line of split tuning fork density meter is up to 2 meters
in length. In order to reduce the interference of the tuning fork
sensor line, a single wire jacket is used to protect the sleeve.
The sensor line must be protected from interference and damage at
the scene. It is relatively weak, and it is not recommended to use
it in the place with electromagnetic interference

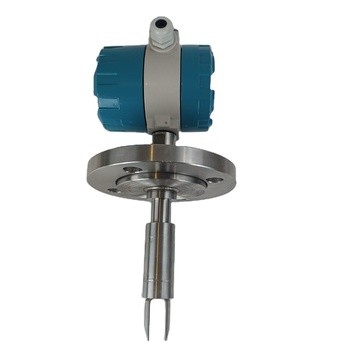

Detailed Image
Specification
Measuring range: 0 ~ 3 g / cm³ optional
Output: 4-20 mA signal (4-wire system)
Accuracy: 0.3% (real-time range) or 0.001 g / cm³ whichever is
greater. Resolution: 0.0001 g / cm³
Installation: DN50 DN80 DN100 and threaded installation (threaded
installation with
mounting base)
Application range: -30 ~ 120 degrees
Maximum working pressure: 20MPa
Protection level: IP65
Fork body material: stainless steel 316, Hastelloy C22, manganese
alloy 400
Fork body coating: coating (perfect hydrophobic and non-stick
impurities in liquid) |
Features
1.The current circuit is independent of fork vibration circuit,
there is isolating anti-interference inner, reducing the influence
to instrument from disturb.
2.There is set density three point quick calibration, range adjust,
current calibration etc function, to meet on-site working demands.
3.Using high precision measuring density, is mainly used in power
plant.
4.Can not be affected by temperature, pressure and flow rate , the
factor affecting measuring error Is less
Application
1.Measurement of the density (concentration) of ore pulp in the
process of ore dressing density (concentration) during coal feeding
process;
2.Measurement of syrup density (concentration)
3.Measurement of starch emulsion density (concentration) (dry
matter mass)
4.Desulfurization project lime slurry density (concentration)
measurement, alarm
5.Denitration project ammonia density (concentration) measurement
6.Pharmaceutical industry concentrated solution density
(concentration) measurement
7.Alcohol and water surface density (concentration) measurement
8.Various types of pipeline or tank density (concentration)
measurement
