    ABS Plastics Radar Level Meter , Ultrasonic Radar Liquid Level Sensor

    Ask Lasest Price
    Brand Name : Yunyi
    Price : USD$179--300/UNIT
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Uint per week
    Delivery Time : 5-10working days
    • Product Details
    • Company Profile

    ABS Plastics Radar Level Meter , Ultrasonic Radar Liquid Level Sensor

    LED Radar Level Meter Ultrasonic Pool Water Sewage Fuel Level Meter 0~20mA 4~20mA ABS Plastics

    Description of LED Radar Level Meter Ultrasonic Pool Water Sewage Fuel Level Meter 0~20mA 4~20mA ABS Plastics


    SLK-T series (TI/TII) high precision ultrasonic level instrument for small blind area is developed by our company for small blind area, high precision and small space condition measurement and control.The first ultrasonic distance measurement products with blind area less than 0.06m and accuracy up to + / - 1mm are introduced in China.ABS engineering plastic waterproof shell is adopted for the shell. The probe part is PP or stainless steel.Transparent host cover design for easy observation and display.

    The main chip USES imported industrial grade single chip microcomputer, digital temperature compensation, ultra-wide voltage input voltage stabilizer and other dozens of special integrated circuits, so as to make the performance of the product more stable and reliable.It has strong anti-interference capability. It can set up the upper and lower limit node and adjust the online output at will through the upper and lower limit node of the upper computer software.It has high reliability, no pollution, stable performance, no contact with industrial media can meet most liquid level and material level measurement requirements.The problems of winding, clogging, leakage, medium corrosion and maintenance inconvenience caused by traditional measurement methods such as pressure type, capacitance type and float type are solved thoroughly.Therefore, it can be widely used in various fields related to material level and liquid level measurement and control.

    Features of LED Radar Level Meter Ultrasonic Pool Water Sewage Fuel Level Meter 0~20mA 4~20mA ABS Plastics

    The robust and stable sensor is suitable for severe industrial applications
    The software has strong anti-interference capability, and can be arbitrarily set up upper and lower limit nodes and online output adjustment
    The temperature sensor is built into the transducer to realize the real-time automatic temperature compensation of the measured value
    Flow 4~20MA current output, optional field bus interface
    The liquid level meter for small blind area of 0.06m was first invented in China

    Specification of LED ultrasonic pool water fuel level meter
    Range
    1m,2m(option)
    Blind area
    <0.06- 0.15m
    Minimum display resolution
    1mm
    Frequency
    40 KHz~430.0KHz
    Launch Angle
    less than 6 °
    Field setting
    through the local key
    Calibration
    factory calibration, field calibration
    Analog signal output
    0~20mA;4~20mA>300Ω;0~5V;1~5V;0~10V;1~10V
    Maximum error
    <+/-1MM, <+/-1.5MM(depend on range)
    Display

    Four bit eight LED digital tube ,LCD(option)

    Power supply


    DC12-24V

    Digital output


    RS485(support Modbus)


    Switch output
    3 lines NPN

    Ingress protection
    IP65
    Power consumption
    < 1.5 W
    Case Material
    ABS plastics
    Transducer Material
    Stainless steel or ABS engineered plastic
    Keyboard
    Three - digit laminated A, B, C keyboard
    Working environment
    normal temperature/pressure,less than 80%RH without condensation
    Explosion protection
    EXiaII BT4Gb

    Application of LED Radar Level Meter Ultrasonic Pool Water Sewage Fuel Level Meter 0~20mA 4~20mA ABS Plastics

    Circulating water and sewage treatment pump room, sump well, biochemical reaction tank, sedimentation tank, etc
    It is used for controlling electric power, mine mortar pool, coal slurry pool, butter storage tank, storage yard or partial mobile equipment
    Food industry distilleries, grain warehouses, food materials filling tanks, etc
    It is compatible with the current control system

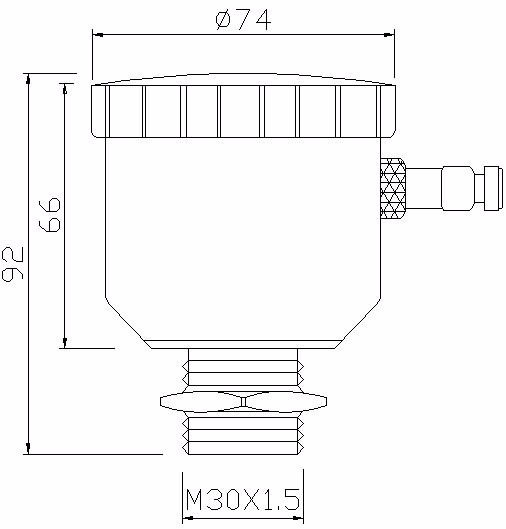

    Drawings
    ABS Plastics Radar Level Meter , Ultrasonic Radar Liquid Level Sensor
    ABS Plastics Radar Level Meter , Ultrasonic Radar Liquid Level Sensor

    Dimension: Φ 74 mm * 92 mm * ((stainless steel);Φ * 117 mm * 74 mm G1 1/2 (ABS)
    Installation: M30 * 1.5, g1/2


    ABS Plastics Radar Level Meter , Ultrasonic Radar Liquid Level Sensor

    ABS Plastics Radar Level Meter , Ultrasonic Radar Liquid Level Sensor
    ABS Plastics Radar Level Meter , Ultrasonic Radar Liquid Level Sensor

    FAQ

    Q: How long will you reply me?
    A: We will contact you as soon as possible but within 12 hours

    Q: Can I get some samples?
    A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

    Q: How soon can you arrange your production?
    A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

    Q: What's delivery time?
    A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

    Q: How do you control your quality ?
    A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

    Q: What certificates do you have ?
    A: ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

    Q: Could I visit your factory?
    A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

    Q: What's your warranty terms?
    A: We offer 12 months warranty time.

    Q: Can you provide OEM & Customized service?
    A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
