pressure hand test pump pressure calibrator Y039

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	Y039
Price :	180$
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	100pcs per month
Delivery Time :	5~8 working days

Add to Cart

Product Details
Company Profile

pressure hand test pump pressure calibrator Y039

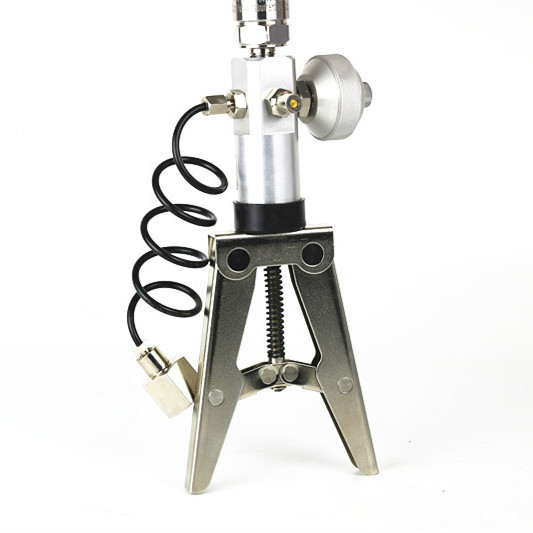

Y039 Pressure Pump

Usage

Y039 Hand-operating Pressure Pump is a liquid hand pressure pump. It is used to calibrate the pressure instruments of the industrial process in the field and/or control room. Also it can be used as a pressure generator for pressure instruments, All kinds of pressure transmitter and pressure gauge and other pressure instrument that with a pressure below 1.6mpa, can be calibrated by this pressure pump.

Features

The hand-operating pressure pump is portable, light weight, widetemperature range, easy to use. There is a trim adjustment handle valve and switch valve on the pump, so that it is easy to adjust the pressure or exhaust the air.

There are also matched fast connection, nylon hose, instrument connector etc, used to connect the calibrated instrument and the standard gauge. The pump is easy to carry and to connect with the calibrated instruments in the field, so

the operator can calibrate the instrument fast and simple.

Structure and Principle

Y039 hand-operating pressure pump(see attachment) is compose of cylinder, piston rod, trim adjustment valve, switch valve, handle, quick connector etc. The quick connector is used to connect the calibrated instrument and the standard gauge. When use it, press and relive the handle for several times, to drive the piston rod reciprocating motion, change the volume of the cylinder, can produce the output pressure of 0-1.6mpa.

Technical Data

1. Working pressure: 0-1.6MPa

2. Working temperature: -20 to 50℃

3. Dimension: 220x110x55mm

4. Weight: 0.5kg

5. Accessory

(1) Joint 2pcs

(2) Quick connector: 2pcs

(3) Joint cap 4pcs
