    Pressure calibrator XY-2003 hydraulic Pressure instrument 0~ 250MPa

    Ask Lasest Price
    Brand Name : Yunyi
    Model Number : XY- Series
    Certification : CE
    Price : 840.5 $~1568$
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100pcs per month
    Delivery Time : 3~8 working days
    • Product Details
    • Company Profile

    Pressure calibrator XY-2003 hydraulic Pressure instrument 0~ 250MPa

    pressure calibrator

    Description XY-2003 0~250MPa Pressure calibrator


    XY-2003 Hydraulic pressure calibrator currently in our country measurement verification or calibration industry, this pressure calibration hand pump used is the piston pressure gauge or desktop pressure source, electric pressure calibrator bench and other products, these products are generally large, difficult to take to site verification and portable products abroad using hand-clamp type. This hand pump is portable, simple structure, easily operation.

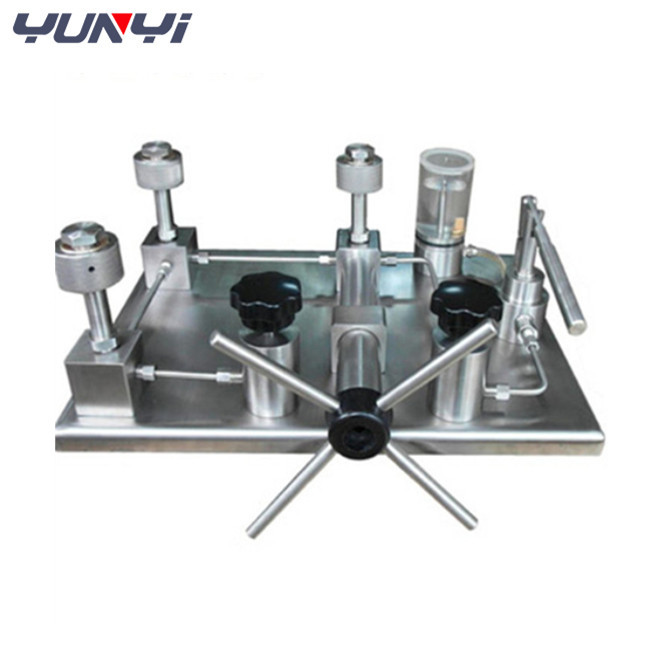

    Detailed Images XY-2003 pressure calibrator

    Pressure calibrator XY-2003 hydraulic Pressure instrument 0~ 250MPaPressure calibrator XY-2003 hydraulic Pressure instrument 0~ 250MPa

    Specification Hydraulic Pressure calibrator XY-2003


    Item

    XY-2003 Hydraulic Pressure calibrator


    Work ConditionOn site or laboratory
    Pressure range0~60MPa
    Expanding Pressure Range0~100MPa 0~160MPa 0~250MPa
    Fine Adjustment10kpa
    MediumPure water
    FeaturesSave effort, high efficiency pressure creation, durability, nearly no leak
    ConnectionM20*1.5(3 pcs)
    Volume460×320×160mm
    Weight13KG
    AccessoriesCertificate*1, warranty card*1, manual*1, Wearing parts (several)
    Warranty12 months
    UsageCalibration of pressure gauge, pressure transmitter


    Features of Hydraulic pressure calibrator

    Simple structure, easy operation (far labor cost than the pliers-type pressure pump)


    Easy to carry, not easy to leak, easy to maintain


    Working medium: water or oil


    Suitbale for dirty and tide enviorment


    Can be used with multiple range intelligent digital pressure calibrator


    Related products: Handheld Hydraulic pressure calibrator


    YFP-16: -0.088~1.6MPa

    Stability: 0.05%

    Type: Pneumatic pressure

    YFP-20: -0.088~2.0MPa

    Stability: 0.05%

    Type: Pneumatic pressure

    YFP-25: -0.088~2.5MPa

    Stability: 0.05%

    Type: Pneumatic pressure

    Y039: 0~1.6MPa

    Stability: 0.05%


    Type: Pneumatic pressure

    Y060: 0~25MPa

    Stability: 0.05%

    Type: Hydraulic pressure

    Y061: -0.08~0MPa

    Stability: 0.05%

    Type: Pneumatic pressure


    Quality Pressure calibrator XY-2003 hydraulic Pressure instrument 0~ 250MPa for sale
