2Mpa Portable Hand Held Pneumatic Pressure Pump Calibrator

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	YFP-2.0
Certification :	/
Price :	$200
Payment Terms :	T/T, Western Union
Supply Ability :	50 pieces per week
Delivery Time :	10 works day

Add to Cart

Product Details
Company Profile

2Mpa Portable Hand Held Pneumatic Pressure Pump Calibrator

Description 2Mpa Portable Hand Held Pneumatic Pressure Pump Calibrator

Hand-Held Pressure calibrator pumps is a portable pressure pump.For field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.Can also provide pressure source correction table for pressure measuring instrument manufacturer.All kinds of pressure transmitter within every 60 M pa,Pressure sensor and all kinds of pressure gauges Check all available hand pressure pump.

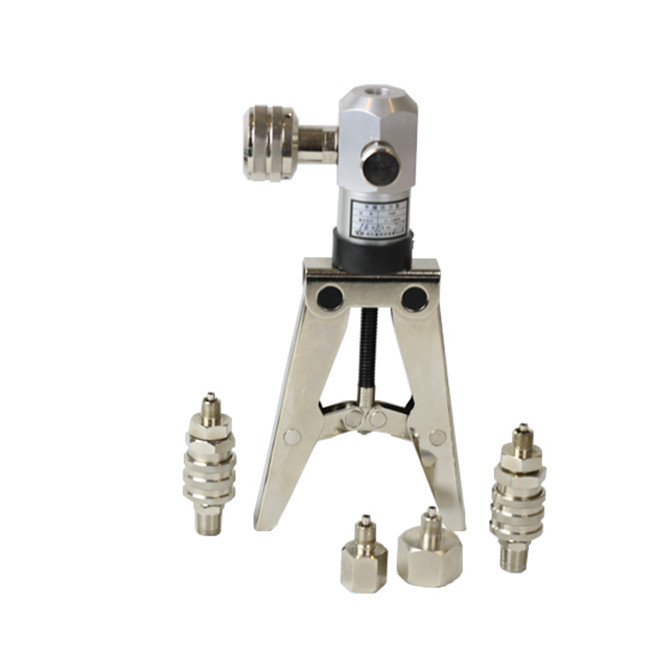

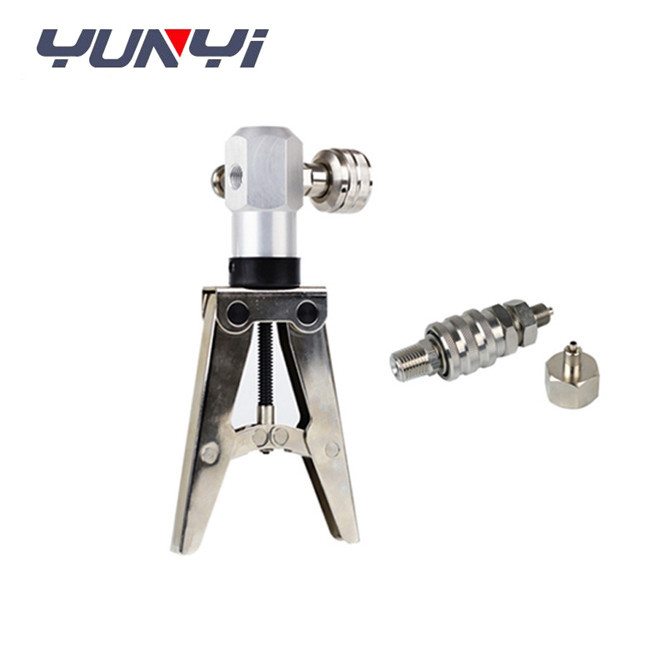

Detailed Images 2Mpa Portable Hand Held Pneumatic Pressure Pump Calibrator

Specification 2Mpa Portable Hand Held Pneumatic Pressure Pump Calibrator

2Mpa Portable Hand Held Pneumatic Pressure Pump Calibrator
Working pressure	-0.1 ~ 2MPa
Working Environment	-20 to 50℃
Working Environment	Relative humidity: ≤ 100%
Dimension	220x110x55mm
Weight	0.8kg
Output pressure	-0.1 ~ 2.5Mpa
Table connector thread	M14 × 1.5 thread (exports by 1/4NPT)
high-pressure hose connector thread	M20 × 1.5 thread (exports by 1/2NPT) requirements

Different Type For Your Choice:

Model Number	Pressure Range	Medium
Y039	0 ~ 1.6Mpa	Pneumatic/Barometric Pressure
Y061	-0.1 ~ 0Mpa	Pneumatic/Barometric Pressure
Y060	0 ~ 25Mpa	Hydraulic Pressure
YFP-1.6	-0.1 ~ 1.6Mpa	Pneumatic/Barometric Pressure
YFP-2.0	-0.1 ~ 2.0Mpa	Pneumatic/Barometric Pressure
YFP-2.5	-0.1 ~ 2.5Mpa	Pneumatic/Barometric Pressure
XYSB60	0 ~ 60Mpa	Hydraulic Pressure

Features 2Mpa Portable Hand Held Pneumatic Pressure Pump Calibrator

1.Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing ,Meter connector connect pressure gauge .

2.Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, etc .rotation.

2Mpa Portable Hand Held Pneumatic Pressure Pump Calibrator
