Industrial Pressure Gauge Calibrator With Hand Pump 7Kg

Description Pressure Calibrator Pressure Calibration Hand Pump Comparator

The Pressure Calibrator Pressure Calibration Hand Pump Comparator (hereinafter referred to as the pressure calibrator) is an important auxiliary equipment in the measurement of pressure instrument.Coordinate with pressure gauge to complete calibration and testing of pressure gauge.
The pressure calibrator is designed skillfully, easy to operate, easy to build pressure, fast pressure speed, widely used in measurement, scientific research, industrial and mining enterprises and instrument manufacturing industries.

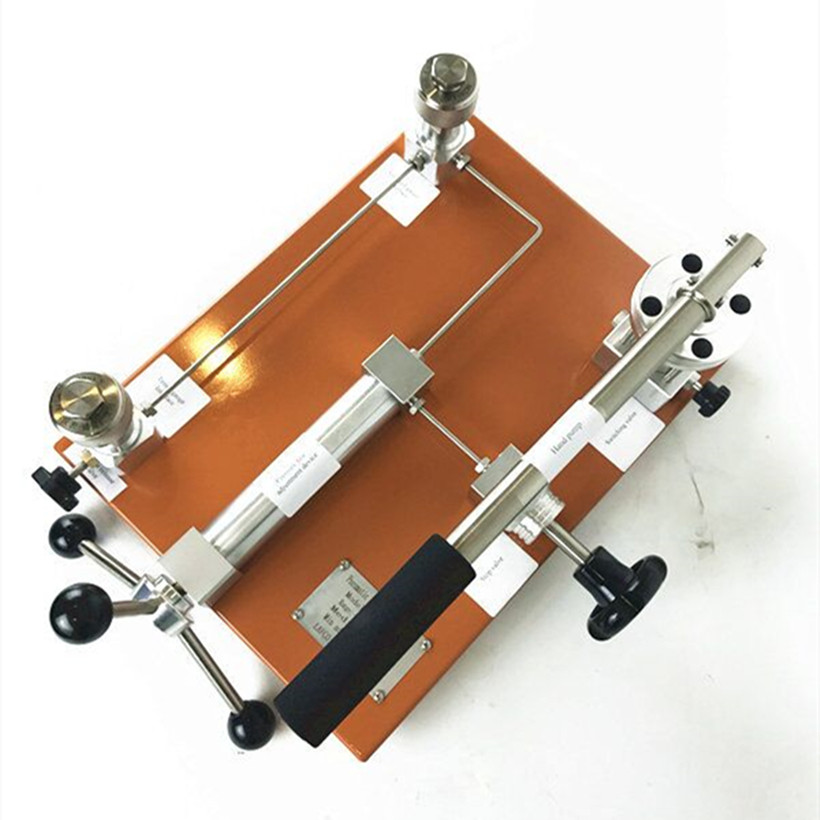

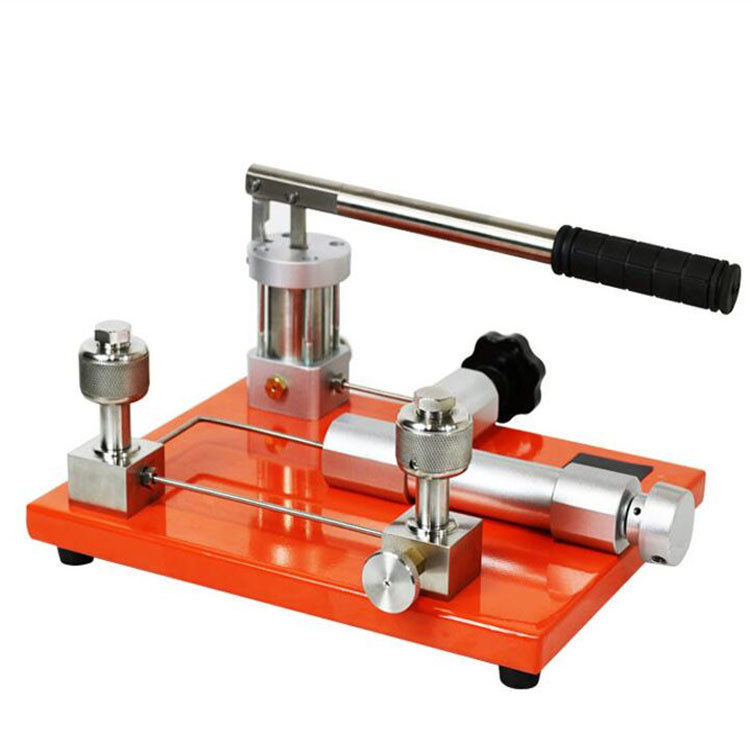

Detailed Images Pressure Calibrator Pressure Calibration Hand Pump Comparator
Industrial Pressure Gauge Calibrator With Hand Pump 7Kg

Specification Pressure Calibrator Pressure Calibration Hand Pump Comparator

Bench type pneumatic pressure calibrator
Create pressure range	(-0.095 ~ 10) MPa
Selection	XY-2002A (-0.095 ~ 4) MPa Low
	XY-2002B (-0.095 ~ 6) MPa pressure
	XY-2002C (-0.095 ~ 10) MPa high-pressure
Output size	M20 * 1.5 (based on field instrumentation interfaces can provide a variety of different adapters, see pressure accessories)
Minimum controllable adjustment degree	10Pa
Output Interface	M20 × 1.5 (three)
Dimension	300mm × 300mm × 150mm
Weight	10kg

Features Pressure Calibrator Pressure Calibration Hand Pump Comparator
1. Open structure, all parts and pipelines are combined on the front, easy to maintain.
2. Large chamber, wide stroke lever pressure pump, easy pressure, fast pressure.
3. The successful application of CNC car, milling and grinding technology has high precision and good performance.

Applications Pressure Calibrator Pressure Calibration Hand Pump Comparator
Suitbale for calibrate the pressure gauge, pressure transmitter, pressure sensor and other pressure instruments.
