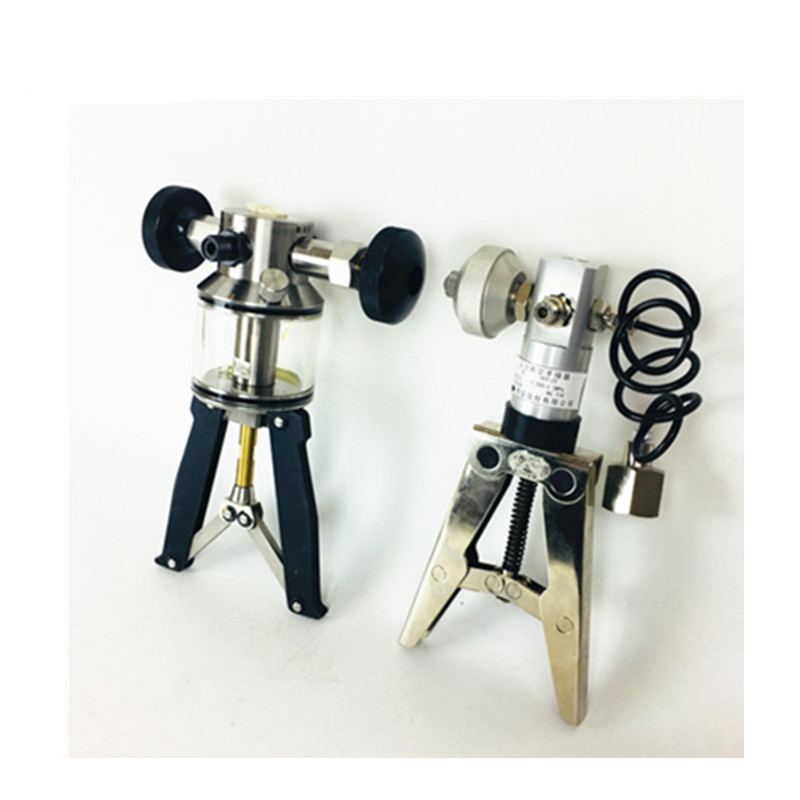

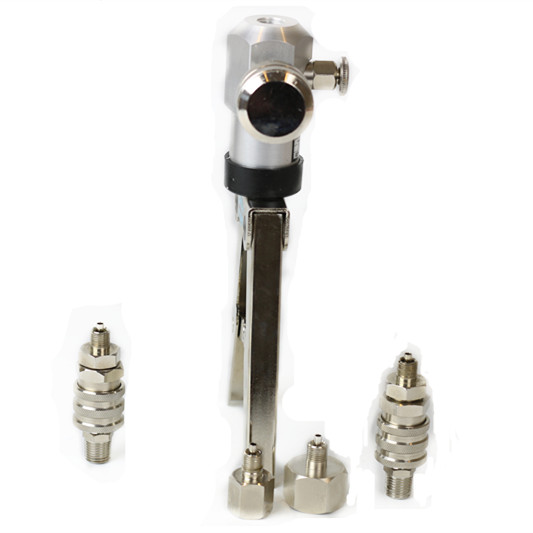

Portable Vacuum Pressure Calibrator Hand Pressure Test Pump

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	Y0 series
Certification :	CE
Price :	$180-$671/p
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	10PCS/week
Delivery Time :	in stock

Add to Cart

Product Details
Company Profile

Portable Vacuum Pressure Calibrator Hand Pressure Test Pump

Portable Pressure Calibrator Vacuum Pressure Calibrator Hand Pressure Test Pump

Description Portable Pressure Calibrator Vacuum Pressure Calibrator Hand Pressure Test Pump

Hand-Held Pressure Calibrator Pumps is a portable pressure pump.For field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.Can also provide pressure source correction table for pressure measuring instrument manufacturer.All kinds of pressure transmitter within every 60 M pa,Pressure sensor and all kinds of pressure gauges Check all available hand pressure pump.

Parameters Portable Pressure Calibrator Vacuum Pressure Calibrator Hand Pressure Test Pump

output pressure range	Y039: 0-1.6MPa Y061: -0.1-0MPa Y060: -25MPa YFP-16: -0.088~1.6MPa(-0.88~16bar) YFP-20: -0.088~2.0MPa(-0.88~20bar) YFP-25: -0.088~2.5MPa(-0.88~25bar)
operating temperature	-20~50C
operating relative humidity	~100%
flexible hose connector	M20*1.5 female
master gage connector	1/4NPT male
dimensions	235×120×65 230 x 110 x 60
weight	0.6kg 0.5kg
Accessories	500 mm long plastic hose and a leatherette carrying bag
Outlet threads	1/4 NPT, or to custom request
Vernier-adjuster	micro-adjustable, volume control

Usage Portable Pressure Calibrator Vacuum Pressure Calibrator Hand Pressure Test Pump

The hand pressure test pump is a liquid-type hand-operated pressure pump. It is used to verify the test instruments installed on site in the industrial process and various pressure instruments used in the control room. It can also provide pressure for the calibration of the pressure measuring instrument manufacturers. Source. All kinds of pressure transmitters, pressure sensors and various pressure instruments within 25Mpa can be calibrated by hand-operated pressure pumps.
