    Desktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration Equipment

    Ask Lasest Price
    Brand Name : Yunyi
    Model Number : LS
    Certification : CE
    Price : 875~1250USD/PCS
    Payment Terms : T/T, Western Union
    Supply Ability : 100pcs per week
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    Desktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration Equipment

    New Model Desk-top Hydraulic Piston Pressure Calibrator Dead Weight Tester Pressure Gauge Calibration Equipment


    Description
    New Model Luxury Desk-top Hydraulic Piston Pressure Calibrator Dead Weight Tester, Pressure Gauge is a Standard calibration. Dead weight testers are so called primary standards which means that the pressure measured by a dead weight tester is defined through other quantities; Length, mass and time. Typically dead weight testers are used in calibration laboratories to calibrate pressure transfer standards like electronic pressure measuring devices.

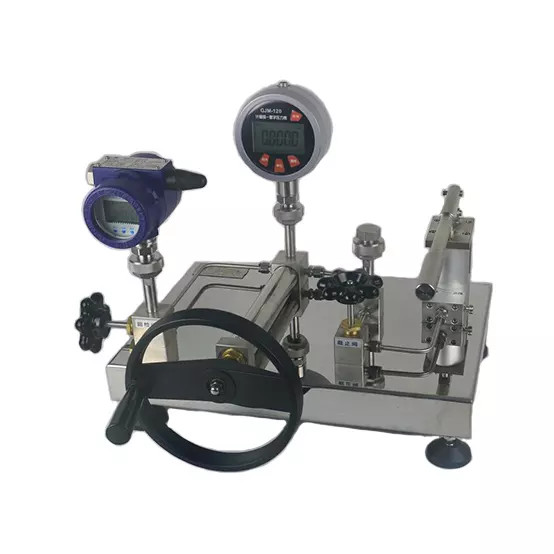

    Detailed Image

    Desktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration EquipmentDesktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration EquipmentDesktop Hydraulic Piston Calibrator Dead Weight Tester Pressure Gauge Calibration Equipment


    Specification

    ParameterUnit0.6Mpa6Mpa25Mpa60Mpa
    Upper limitMpa0.662560
    Lower limitMpa0.040.10.51
    Nominal piston areacm210.50.20.1
    Nominal masskg0.40.511
    Generated pressureMPa0.040.10.51
    Thread SizeM20×1.5M20×1.5M20×1.5M20×1.5
    Medium25# transformer oil or mixer of transformer oil and kerosene oil as 7:1, the kinematic viscosity is between 9 ~ 12 centistoke at 20℃,acid value is not more than 0.05mg KOH/g25# transformer oil or mixer of transformer oil and kerosene oil as 7:1, the kinematic viscosity is between 9 ~ 12 centistoke at 20℃,acid value is not more than 0.05mg KOH/gSebacate (DIDG or diisooctyl sebacate) the kinematic viscosity is between 20 ~ 25 centistoke at 20℃,acid value is less than 0.05mg KOH/gSebacate (DIDG or diisooctyl sebacate) the kinematic viscosity is between 20 ~ 25 centistoke at 20℃,acid value is less than 0.05mg KOH/g
