Portable manual pressure source pressure gauge calibrator

Description of Portable manual pressure source pressure gauge calibrator

XY-2006B Portable manual pressure source pressure gauge calibrator is currently widely used in the metrological verification or calibration industry in our country. The pressure gauge calibraotr are generally large in size and are not suitable for on-site calibration.

Specificaion of Portable manual pressure source pressure gauge calibrator

Pressure range: (-0.09～0～60) MPa
Volume: 290mm×150mm×110mm
Adjustment fineness: 10kPa
Weight: less than 2kg
Pressure range from -01-60MPA, can support water pressure

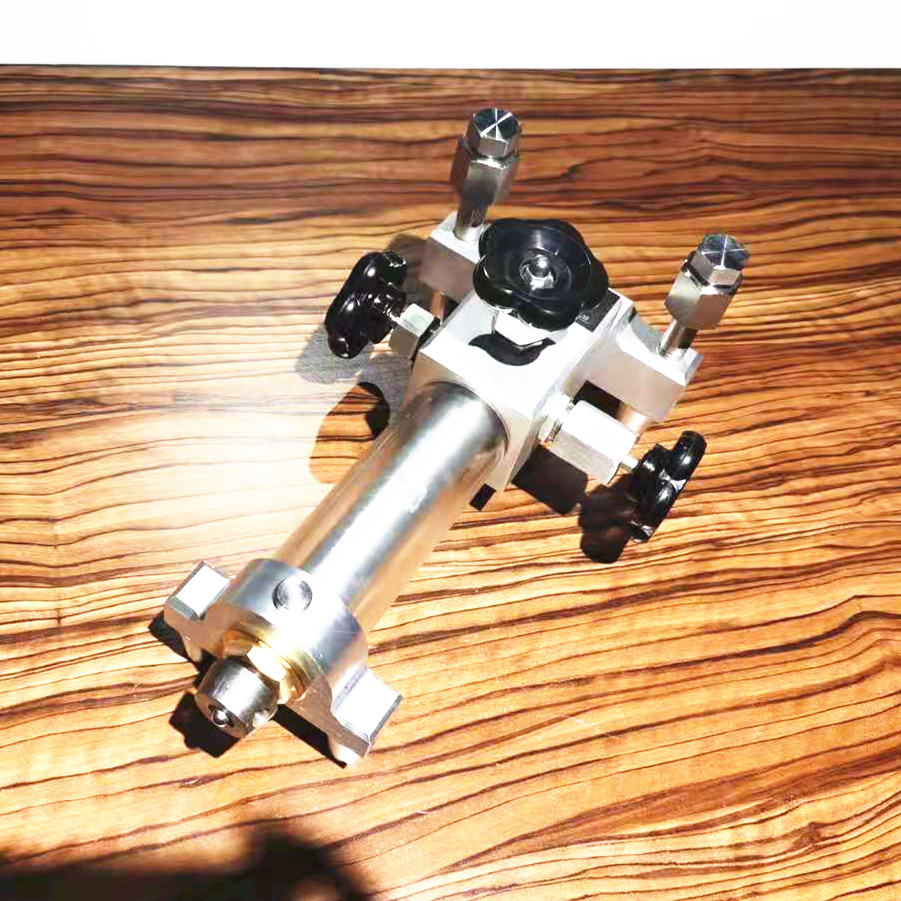

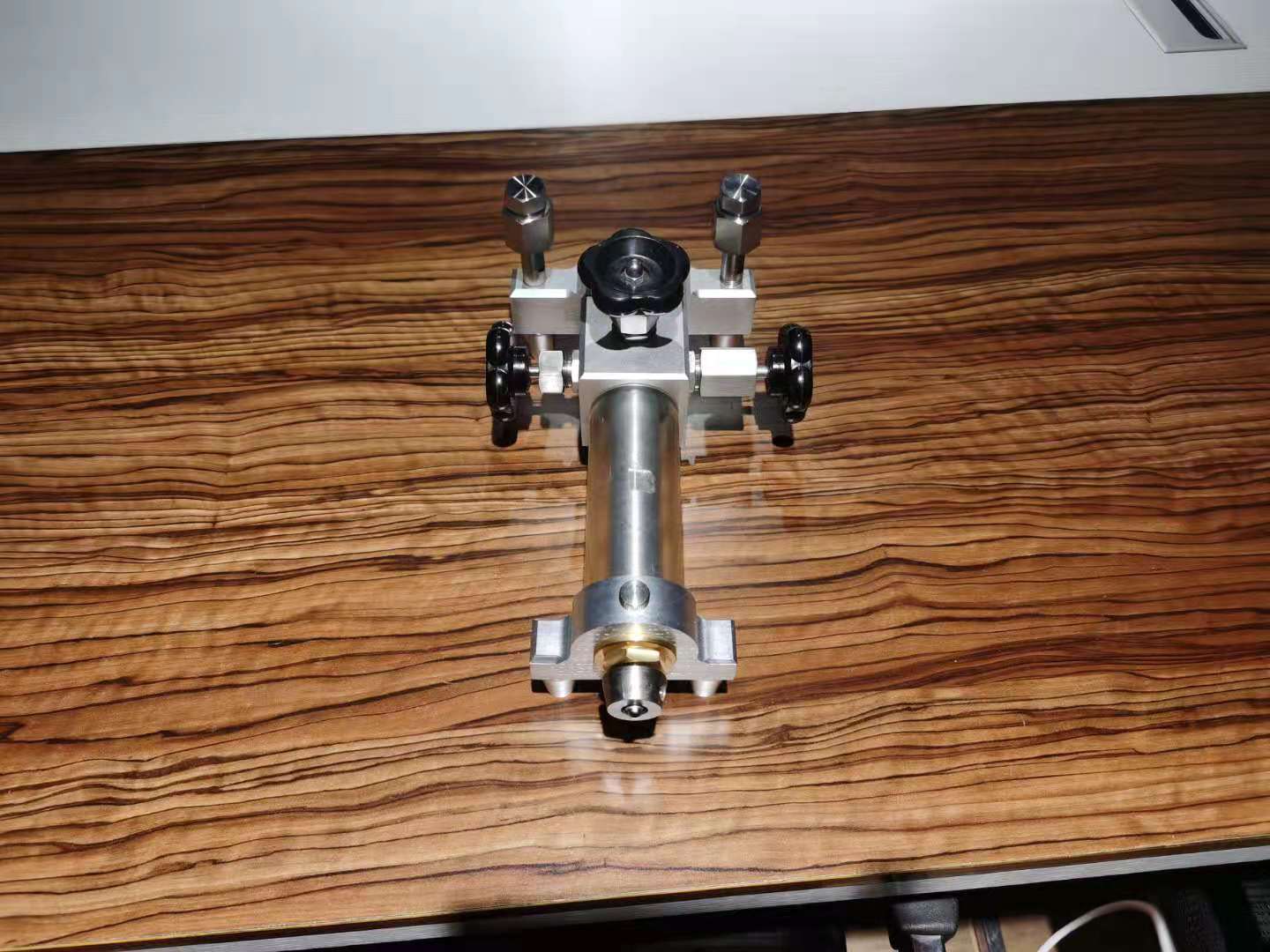

Detailed picture of Portable manual pressure source pressure gauge calibrator

Feature of Portable manual pressure source pressure gauge calibrator

1. Adopt aviation composite sealing material, with good sealing performance and long service life;
2. Simple structure, labor-saving operation, external aluminum alloy box, easy to carry, it is an ideal product for on-site verification;
3. It is far less labor-saving than the hand-clamp type, and it is not afraid of dirt or tide;
4. Available pressure accessories, including high and low pressure piping, quick conversion joints, etc.;
5. No one-way valve design, compound pressure can be transmitted remotely.

Company of Portable manual pressure source pressure gauge calibrator

YUN YI ,we are professional manufacturer that engaged in the fields of pressure measurement instrument.
we have 12 years sensor producing and developing experiences

Xi'an Yunyi Instrument Co., Ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.

12 moths warranty
OEM&ODM
Near 1/2 buyers found pressure sensor & contact us
